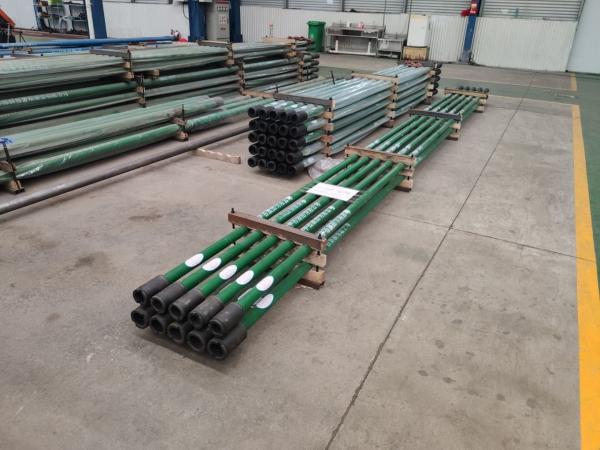

THC THM Tubing Pump for Oil Wells with 44.45mm OD Heavy Wall Barrel
THC THM Tubing Pump for Oil Wells with 44.45mm OD Heavy Wall Barrel
Specifications
Brand Name :
Zhongshi
Model Number :
Tubing pump
Certification :
API, ISO, QHSE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union, D/A
Supply Ability :
1000 SETS/MONTH
Delivery Time :
10~15 workdays
Packaging Details :
Standard exported packing
Pump type :
Tubing pump
Model :
THC, THM
Application :
Large production oil well
Pump barrel :
Heavy wall barrel
Plunger coating :
Spray metal plunger
Structure :
Inserted
Description

Oil Well Tubing Pump For Some Large Production Wells

Large production well tubing pump description:

Main parts process and material:

Pump barrel: plain carbon steel plating (A1), ordinary carbon steel carbonitriding (B1), ordinary carbon steel carburizing (B2), low alloy steel nitride (B5).
Plunger: 1045 steel spraying (B1), 1045 steel spraying (B2), 1045 steel chrome plating (A1), 1045 steel double chrome plating (A2).
Valve ball and seat: stainless steel (A1), cobalt chromium (B2), tungsten carbide (C1), nickel and carbon compounds (C2), titanium carbide (C3).
Other accessories: plain carbon steel, low alloy steel, stainless steel, brass and other materials.

For this type of pump, the barrel is put in the well to the designed depth with tubing. And then put the plunger into the barrel with sucker rod. Given the tubing size, the bore of the tubing pump is larger than that of the rod pump, so the pump rate is higher. According to seating mode, the rod pump can be divided into three types: THC pump (Stationary Heavy Wall, Cup Seating, Tubing pump), THM pump (Stationary Heavy Wall Mech. Seating, Tubing Pump) and THD pump.

Features: API-TH,Tubingl, Heavy Wall Barrel, Tubing Pump

Tubing pump API specifications:

API model Pump OD(in) Length of Barrel (ft) Plunger length(ft) stroke length(ft)

Tubing EUE(in)
20-175THM Ø44.45 7-34 1-26 4-29 2 3/8"
25-225THM Ø57.15 2 7/8"
30-275THM Ø69.85 3 1/2"
40-375THM Ø95.25 4 1/2"

THC THM Tubing Pump for Oil Wells with 44.45mm OD Heavy Wall Barrel
