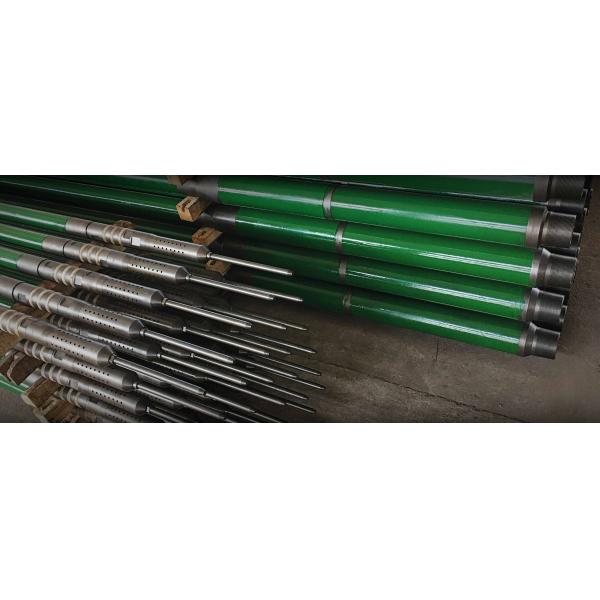

Thin Walled Barrel Rod Insert Pump With Chrome Plated Coating
Thin Walled Barrel Rod Insert Pump With Chrome Plated Coating
Specifications
Brand Name :
Zhongshi
Model Number :
Sucker rod pump
Certification :
API, ISO, QHSE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union, D/A
Supply Ability :
1000 SETS/MONTH
Delivery Time :
10~15 workdays
Packaging Details :
Standard exported packing
Series :
RW
Model :
RWB RWC
Hold-down :
Top and bottom
Barrel type :
Thin-walled
API certificate :
11AX-0061
Warranty :
One year
Description

Thin Walled Barrel Rod Insert Pump With Chrome Plated Coating

Thin walled barrel inserted sucker Rod Pump Description

We manufacture all subsurface pumps covered by API Spec 11AX, including all barrel and plunger materials and surface finishes.
This is why our sucker rod pumps can be furnished with the components most suitable for your field of application and pumping operations can easily be extended to corrosive environments.
To achieve maximum performance,API subsurface pumps are machined with extra small clearance between the plunger and the inside wall of the barrel.

Our sucker rod pumps are categorized according to the API 11AX pump designation.
API-RH series, Rod, Stationary Heavy Wall Barrel
API-RW series, Rod, Stationary Thin Wall Barrel

RH series has the top anchor and bottom anchor type, cup hold-down and bottom hold-down

RW series also has the top anchor and bottom anchor type, cup hold-down and bottom hold-down

Technical parameter list:

Model Pump diameter (in) Barrel length (ft) Plunger length (ft) Stroke length (ft) Extension length (ft) Tubing size EUE(in)
20-125RWBM Ø31.75 2.1-10.4 0.3-8.0 1.2-9.0 0.3-0.9 2-3/8”
25-150RWBM Ø38.10 2-7/8”
25-175RWBM Ø44.45 2-7/8”
30-225RWBM Ø57.15 3-1/2”

Features

1. The key component of a sucker-rod lift type of artificial lift system

2. More popular than tubing pump
3. Suitable for low downhole pressure wells, slim holes

Thin Walled Barrel Rod Insert Pump With Chrome Plated Coating
