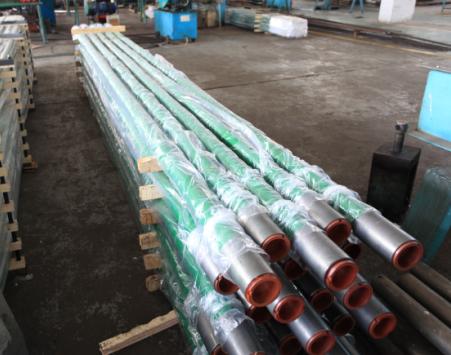

Lower Downhole Pressure Well Use Oilfield Sucker Rods Downhole Pumps
Lower Downhole Pressure Well Use Oilfield Sucker Rods Downhole Pumps
Specifications
Brand Name :
Zhongshi
Model Number :
RWAC
Certification :
API, ISO, QHSE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union, D/A
Supply Ability :
1000 SETS/MONTH
Delivery Time :
10~15 workdays
Packaging Details :
Standard exported packing
Product Name :
Sucker rod inserted pump
Application :
Oil production by artificial lift technology
Plunger coating :
Spray metal
Type :
Inserted pump
Material of main parts :
45# steel
Origin :
China
Barrel coating :
Chrome plated in usual
Hold-down type :
Cup
Description

Lower Downhole Pressure Well Use Rod Insert Pumps

Inserted sucker rod pump description:

The Sucker Rod Pumping System (SRP) is considered the most popular artificial lift method worldwide. Its applications cover very low downhole pressure wells, slim holes, multiple completions, high temperature and viscous oil.

There are seven major components for downhole rod pumps: standing and traveling valves, plunger, barrel, seating assembly, pull tube or valve rod (for insert pump), and the fittings that hold the assembled pump together.

Built with bottom or top hold downs

Available with 3 cup seating assembly or mechanical hold down with 443 Brass or 440C SS
Precision barrels up to 40'
Barrels available in Hardened & Honed, Chrome plated, 443 Brass, and Nickel Carbide
Manufactured with spray metal plunger

Technical parameter list:

Model Pump diameter (in) Barrel length (ft) Plunger length (ft) Stroke length (ft) Extension length (ft) Tubing size EUE(in) Sucker rod size
20-125RWAC Ø1.25” +2.1-10.4 0.3-8.0 1.2-9.0 / 2-3/8”

5/8" 3/4"
20-150RWAC Ø1.50” 2-3/8”
25-200RWAC Ø2.00” 2-7/8”
30-250RWAC Ø2.50” 3-1/2


Sucker Rod Pump Features:
1. Proprietary improvements
2. Suitable for lower downhole pressure oil wells
3. It can be designed according to the customer’s requirements.
