Large TH Well Pump Tubing Oil And Gas Production Used
Large TH Well Pump Tubing Oil And Gas Production Used
Specifications
Brand Name :
Zhongshi
Model Number :
Tubing Pump
Certification :
API ,ISO ,QHSE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
1000 SETS/MONTH
Delivery Time :
10~15 workdays
Packaging Details :
Standard exported packing
Type :
Tubing pump
Tubing pump code :
TH
Tubing pump model :
THM, THC
Application :
Oil and gas production
Industry :
Oil industry
Barrel feature :
Heavy walled barrel
Description

Large Oil Production Used TH Well Pump Tubing

Large oil production TH tubing pump description:

According to seating mode, the rod pump can be divided into three types: THC pump (Stationary Heavy Wall, Cup Seating, Tubing pump), THM pump (Stationary Heavy Wall Mech. Seating, Tubing Pump) and THD pump.

Tubing pump has simple structure so the displacement is bigger and it is suitable for the shallower well with shallow depth and high production.

Main parts process and material:

Pump barrel: plain carbon steel plating (A1), ordinary carbon steel carbonitriding (B1), ordinary carbon steel carburizing (B2), low alloy steel nitride (B5).
Plunger: 1045 steel spraying (B1), 1045 steel spraying (B2), 1045 steel chrome plating (A1), 1045 steel double chrome plating (A2).
Valve ball and seat: stainless steel (A1), cobalt chromium (B2), tungsten carbide (C1), nickel and carbon compounds (C2), titanium carbide (C3).
Other accessories: plain carbon steel, low alloy steel, stainless steel, brass and other materials.

API Technical parameters:

TH tubing pump

tubing pump model Pump Bore(in) Length of Plunger (mm) Range of Stroke (mm) Pump Constant (m3/d) Size of matched tubing (in) Size of connecting Sucker Rod(mm) Length of extension Coupling
25-125 1.25 600-1200 600-1200 1.14 2-1/2 2-7/8 16 300-900
25-150 1.5 1.642 2-1/2 2-7/8 16
25-175 1.75 2.235 2-1/2 2-7/8 16
20-175
25-225 2.25 3.694 2-7/8 19
25-275 2.75 5.518 2-7/8 22
30-275 2.75 5.518 3-1/2 22
30-325 3.25 7.707 3-1/2 22
30-375 3.75 10.261 3-1/2 25
40-375 3.75 10.261 4 25

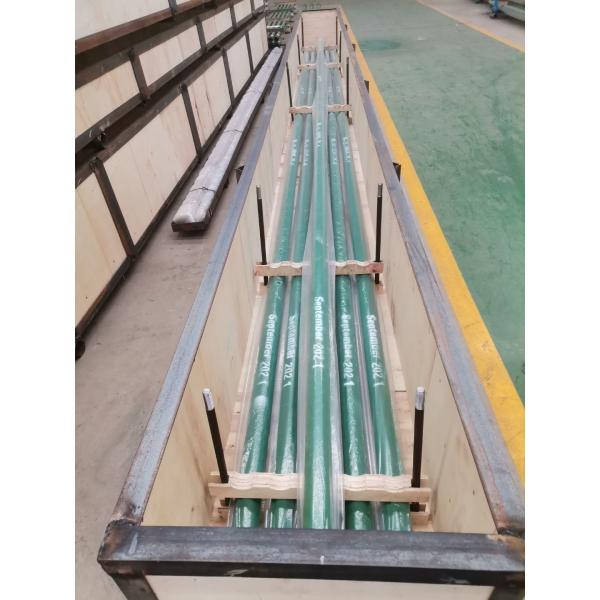

Product photo:

Large TH Well Pump Tubing Oil And Gas Production Used
