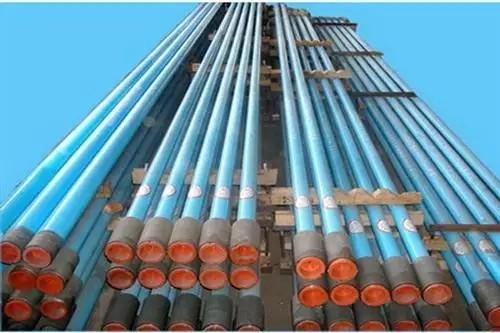

Alloy Steel Plunger Well Pump Tubing Thick Wall Barrel
Alloy Steel Plunger Well Pump Tubing Thick Wall Barrel
Specifications
Brand Name :
Zhongshi
Model Number :
TH(B)M
Certification :
API, ISO, QHSE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union, D/A
Supply Ability :
1000 SETS/MONTH
Delivery Time :
10~15 workdays
Packaging Details :
Standard exported packing
Pump type :
Tubing pump
Plunger material :
Alloy steel
Barrel wall :
Heavy wall(thick wall)
Application :
Oil production
Small parts material :
Low alloy steel
Valve ball & seat 1 :
Tungsten carbide
Valve ball & seat 2 :
Stainless steel
Description

Alloy Steel Plunger Thick Wall Barrel Well Pump Tubing

Alloy steel plunger thick wall barrel well pump tubing description:

The pump barrel assembly of the well tubing pump connected on the tubing string,and with its down to the bottom of the well.Plunger assembly connected on the sucker rod string and with it down to the pump barrel position in the well,then with it do up and down reciprocating motion, so as to realize the production process.

The inner surface of the well tubing pump barrel is processed with carbonization quench and chrome plating technology and the plunger surface is processed with thermal metal spraying technology. The pump meets the requirement of long stroke. high speed and deep producing and has the advantages of high pumping efficiency. large displacement ,wear and corrosion resistance,long operation and easy repairing.
In the process of production, when traveling valve and standing valve appear problems,we can pull the traveling valve and standing valve out the well through the sucker rod string, plungerand the puller ,instead of pull the whole pump and tubing string out of the well, reduce the labor intensity of operation, reduce the operation cost.


API tubing pump and rod pump technical parameters:

Major technical parameters
pump type pump OD(mm) Barrel Length (m) Stroke Range (m) Length of Extension Pub Joint(m) Tubing threads(in)
Rod pumps 31.8

2.1
2.4
2.7
3.0
3.3
3.6
3.9
4.2
4.5
4.8
5.7
6.0
6.6
7.3
9.1

 1.5-6 0.3
0.6
0.9		 2 3/8
38.1 2 7/8
44.45 2 7/8
Tubing
pump		 31.8 1.5-7.8

0.3
0.6
0.9

 2 3/8
38.1 2 7/8
44.45 2 7/8
57.15 2 7/8
69.85 2 7/8 3 1/2
82.55 3 1/2
95.25 3 1/2


Primary packing for oil well tubing pump
