Environment Friendly Tube Well Pump Large Production
Environment Friendly Tube Well Pump Large Production
Specifications
Brand Name :
Zhongshi
Model Number :
TH(B)M
Certification :
API, ISO, QHSE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union, D/A
Supply Ability :
1000 SETS/MONTH
Delivery Time :
10~15 workdays
Packaging Details :
Standard exported packing
Feature 1 :
Enviroment friendly
Feature 2 :
Large production
Feature 3 :
Strong structure
Certificate No. :
API 11 AX-0061
Basic material :
High carbon steel
Barrel coating :
Chrome plating
Origin :
China
Description

Environment Friendly Large Production Well Tubing Pump

Environment friendly large production well tubing pump description

Tubing Pump is also called pipe type pump,the feature is that assemble the outer cylinder liner,the bush and the suction valve well on the ground,and connect at the bottom of the oil,into the wells,then use the sucker rod pump through tubing to put the piston is provided with a discharge valve into the pump.

The pump barrel assembly of the tubing pump connected on the tubing string,and with its down to the bottom of the well.Plunger assembly connected on the sucker rod string and with it down to the pump barrel position in the well,then with it do up and down reciprocating motion, so as to realize the production process.

Well tubing pump and rod pump models descriptions:

3.1. Type of barrel: chrome plated or carbonitrided surface
3.2. Type of plunger: metal spray or chrome plated surface
3.3. Valve ball and seat materials: stainless steel, Cobalt alloy, tungsten carbide and Titanium carbide
3.4. Pump designation:
3.4.1 RHAM: Stationary Heavy Wall Barrel, Top Anchor, Mechanic Seating, Rod Pump
3.4.2 RHBM: Stationary Heavy Wall Barrel, Bottom Anchor, Mechanic Seating, Rod Pump
3.4.3 RHAC: Stationary Heavy Wall Barrel, Top Anchor, Cup Seating, Rod Pump
3.4.4 RHBC: Stationary Heavy Wall Barrel, Bottom Anchor, Cup Seating, Rod Pump
3.4.5 RHT: Traveling Heavy Wall Barrel, Bottom Anchor, Rod Pump
3.4.6 RWA: Stationary Thin Wall Barrel, Top Anchor, Rod Pump

3.4.7 RWB: Stationary Thin Wall Barrel, Bottom Anchor, Rod Pump
3.4.8 RWT: Traveling Thin Wall Barrel, Bottom Anchor, Rod Pump
3.4.9 RSA: Stationary Thin Wall Barrel, Top Anchor, Soft-packed Plunger, Rod Pump
3.4.10 RSB: Stationary Thin Wall Barrel, Bottom Anchor, Soft-packed Plunger, Rod Pump

3.4.11 THM: Heavy Wall Barrel, Mechanic Seating, Tubing Pump

3.4.12 THC: Heavy Wall Barrel, Cup Seating, Tubing Pump


Well tubing pump and rod pumps Technical Table

Major technical Specification
Pump type OD(mm) Barrel Length (m) Stroke Range (m) Length of Extension Pub Joint(m) Tubing thread(in)
Rod pumps 31.8

2.1
2.4
2.7
3.0
3.3
3.6
3.9
4.2
4.5
4.8
5.7
6.0
6.6
7.3
9.1

 1.5-6 0.3
0.6
0.9		 2 3/8
38.1 2 7/8
44.45 2 7/8
Tubing
pump		 31.8 1.5-7.8

0.3
0.6
0.9

 2 3/8
38.1 2 7/8
44.45 2 7/8
57.15 2 7/8
69.85 2 7/8 3 1/2
82.55 3 1/2
95.25 3 1/2

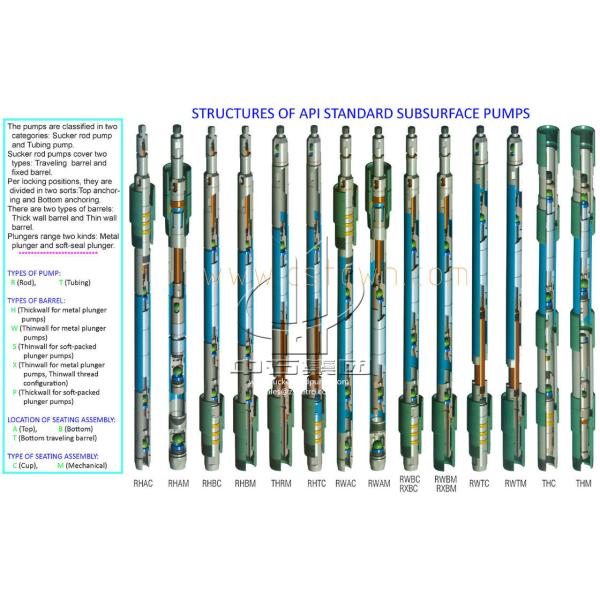

API 11AX pump structure Photo:

Environment Friendly Tube Well Pump Large Production
