Chrome Plated Coating Sucker Rod Insert Pump Plunger AISI 1045 Steel
Chrome Plated Coating Sucker Rod Insert Pump Plunger AISI 1045 Steel
Specifications
Brand Name :
Zhongshi
Model Number :
Sucker rod pump
Certification :
API, ISO, QHSE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union, D/A
Supply Ability :
1000 SETS/MONTH
Delivery Time :
10~15 workdays
Packaging Details :
Standard exported packing
Plunger size :
1 1/16" to 3 3/4"
Pump bore size :
1 1/16" to 3 3/4"
Basic material :
AISI 1045 steel
Barrel coating :
Chrome plated
Seating type 1 :
Top anchor
Seating type 2 :
Bottom anchor
Description

Wide Range Of Plunger Size Sucker Rod Insert Pump

Wide range of plunger size sucker rod insert pump description:

There is a wide range of plunger (or pump-bore) sizes standardized by the industry. The API pump-bore sizes that are currently available range from 1 1/16 to 3 3/4 in. in diameter. This 1 1/16-in. size has been added back in the latest edition of the standard. Additionally, a new barrel type has been accepted in the latest API Spec. 11AX. This is the "X-type" barrel. It has a thin-walled barrel configuration for threads on either end of the heavy-walled barrel and is available for metal plungers only. This type of pump does not require the extension couplings normally needed for heavy-walled barrel pumps. Thus, this pump reduces the burst or collapse concerns of the thin-walled extension couplings and allows deeper producing depths to be attained.

The rod inserted pump plunger is directly connected to the sucker rod string, and may be tripped into and out the tubing with the barrel together with no need to pull out the tubing string, which can reduce maintenance time and downtime.

The life span of tubing can be prolonged by decreasing times of turning on and off the tubing thread and the time of working over is also shortened. The rod pump can be classified into two types of mechanical seating and cup seating. Also, it is divided into three types as RHA (stationary heavy well barrel top anchor rod pump), RHB (stationary heavy well barrel bottom anchor rod pump) and RHT (traveling heavy well barrel bottom anchor rod pump).

Technical parameters table for RW series:

RW model Pump OD (in) Barrel length (ft) Plunger length (ft) Stroke length (ft) Extension length (ft) Tubing size EUE(in)
20-125RWBM Ø31.75 2.1-10.4 0.3-8.0 1.2-9.0 0.3-0.9 2-3/8”
25-150RWBM Ø38.10 2-7/8”
25-175RWBM Ø44.45 2-7/8”
30-225RWBM Ø57.15 3-1/2”

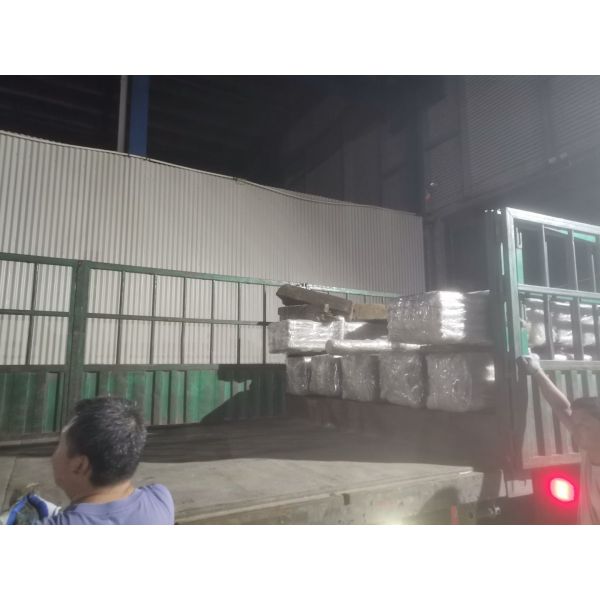

Rod inserted pump delivery photo:

Chrome Plated Coating Sucker Rod Insert Pump Plunger AISI 1045 Steel
