Artificial Lift Sucker Downhole Rod Pumps For Oil Production
Artificial Lift Sucker Downhole Rod Pumps For Oil Production
Specifications
Brand Name :
Zhongshi
Model Number :
Sucker rod pump
Certification :
API, ISO, QHSE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union, D/A
Supply Ability :
1000 SETS/MONTH
Delivery Time :
10~15 workdays
Packaging Details :
Standard exported packing
Pump type :
Sucker rod pump
Working location :
Downhole
Application :
Oil production
Oil well type :
Onshore
Barrel type :
Heavy wall or thin wall
Warranty :
12 months
Description

Artificial Lift Oil Production Downhole Rod Type Pumps

Artificial lift downhole rod pump description:

Puyang Zhongshi Group manufacture all subsurface pumps covered by API Spec 11AX, including all barrel and plunger materials and surface finishes.

Product Model: RHAC, RWAC, RHAM, RWAM, RHBC, RWBC, RHBM, RWBM
Pump Barrel Material: AISI1045 steel;
Pump Barrel material ; Chrome plated
Plunger material: AISI1045 steel
Plunger Spray Welding Material: Nickel base alloy;
Valve Seat Material: 2cr13;
Column Plug Valve Cover Material: AISI1045 steel;
The Pump Barrel and Plunger Clearance; 0.001" -0.005" ;
Type and Size of Connection Threads of Sucker Rod Pump and Tubing: 2-3/8 EUE/NUE, 2-7/8 EUE/NUE, 3-1/2 EUE/NUE.
Type and Size of Connection Threads of Sucker Rod Pump and Sucker Rod: 3/4. Meet API 11AX, customizing according to customer's requirements.

RW 30-250 model technical parameters table:

RW series Pump OD (in) Barrel length (ft) Plunger length (ft) Stroke length (ft) Extension length (ft) Tubing size EUE(in)
30-250RWAM Ø63.5 2.1-10 0.3-8.0 1.2-9.0 / 3-1/2”
30-250RWBM
30-250RWAC Ø63.5 3-1/2"
30-250RWBC

Packing and shipping:

1.Standard export packing or according to client's requirements.

2.Shipping according to client's requirements.

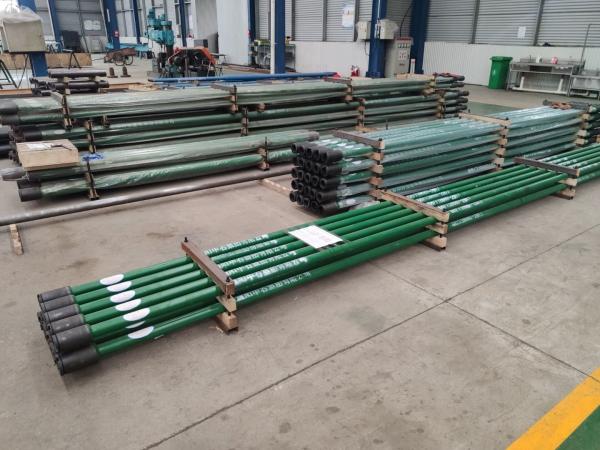

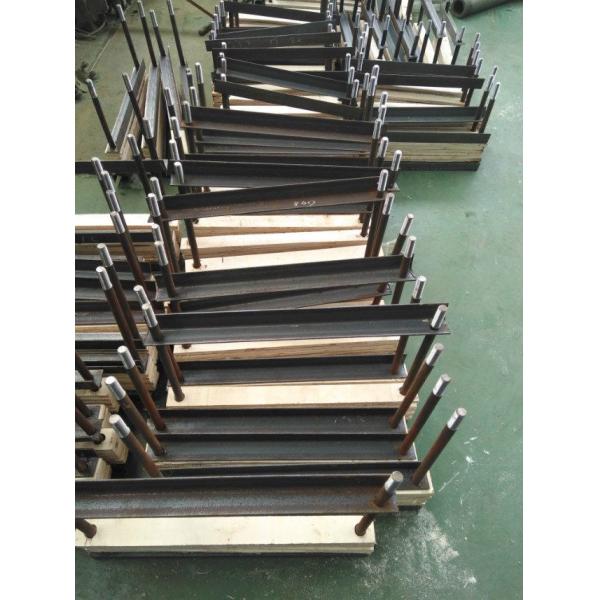

Pump packing frame:

Artificial Lift Sucker Downhole Rod Pumps For Oil Production
