RW Downhole Rod Pumps Thin Walled Barrel For Oil Well
RW Downhole Rod Pumps Thin Walled Barrel For Oil Well
Specifications
Brand Name :
Zhongshi
Model Number :
Sucker rod pump
Certification :
API, ISO, QHSE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union, D/A
Supply Ability :
1000 SETS/MONTH
Delivery Time :
10~15 workdays
Packaging Details :
Standard exported packing
Pump model :
RW
Barrel wall :
Thin wall
Application :
Oil well
Seating location :
Top or bottom
Seating type 1 :
Mechanical seating
Seating type 2 :
Cup seating
Series :
RWAM RWAC RWBM
Origin :
China
Description

Thin Walled Barrel RW Models Downhole Rod Pumps

Thin wall barrel downhole pumps description

The Sucker Rod Pumping System (SRP) is considered the most popular artificial lift method worldwide.There are seven major components for downhole rod pumps: standing and traveling valves, plunger, barrel, seating assembly, pull tube or valve rod (for insert pump), and the fittings that hold the assembled pump together.

Thin wall downhole pump is a kind of sucker rod pump, the models are as follows:

API-RWAM, Rod, Stationary Thin Wall Barrel, Mechanical Top Anchor Pump
API-RWAC, Rod, Stationary Thin Wall Barrel, Cup Top Anchor Pump
API-RWBM, Rod, Stationary Thin Wall Barrel, Mechanical Bottom Anchor Pump

Sucker rod pump is equipped with a seating nipple(there are two seating nipples in API-RHBM-AC) , seating nipple connection on the tubing string, down to the bottom of the well with the tubing string. Plunger assembly connection on the sucker rod string and with the pump overall down to seating nipple position together , pump with fixed inside the seating nipple , Plunger assembly with the sucker rod string up and down reciprocating movement to achieve pumping work.

TH seriesTechnical parameters:

API models OD of Pump (in) Barrel length (ft) Plunger length (ft) Stroke length (ft) Extension length (ft) Tubing size EUE(in)
20-175THBM Ø44.45 7-34 1-26 4-29 2-8 2 3/8"
25-225THBM Ø57.15 2 7/8"
30-275THBM Ø69.85 3 1/2"
40-375THBM Ø95.25 4 1/2"

Features:

1. Thin wall barrel

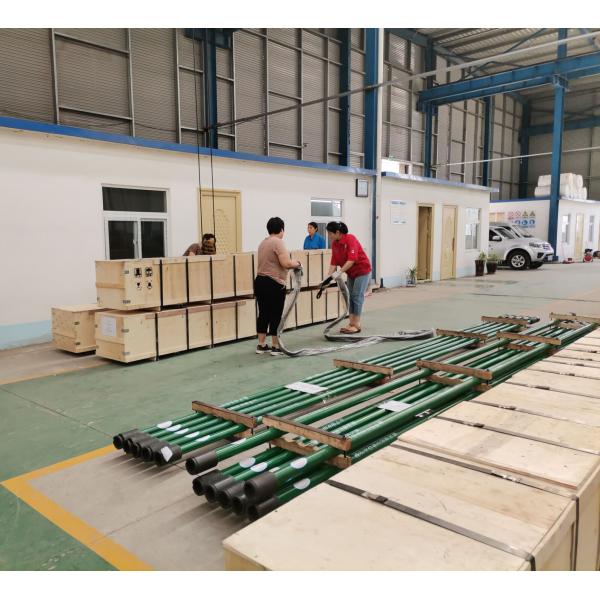

2. Plywood case packing for not strong thin wall barrel

3. Cup seating or mechanical seating
