Customized Rod Type Downhole Pumps Spray Metal Plunger
Customized Rod Type Downhole Pumps Spray Metal Plunger
Specifications
Brand Name :
Zhongshi
Model Number :
Sucker rod pump
Certification :
API, ISO, QHSE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union, D/A
Supply Ability :
1000 SETS/MONTH
Delivery Time :
10~15 workdays
Packaging Details :
Standard exported packing
Pump type :
Rod type
Pump model :
RH
Character :
Stronger than thin wall
Barrel coating :
Chrome plating
Plunger :
Spray metal plunger
Standard :
API 11AX
Description

Customized Sturdy And Durable Rod Type Downhole Pumps

Customized sturdy and durable rod type downhole Pump description:

A downhole Sucker Rod Pump is used on onshore sites to create a mechanical lifting motion. This motion is created by a series of valves, plungers, rod strings and rods that are assembled together as a pumping system.

Long plunger and antisand sticking pump is improved based on the long plunger tubing pump by adding a sand setting tube and a joint, thus preventing the pump from being stuck by sand.
Long plunger and anti-sand sticking pump can be used in the wells of sand content about 0.8%, and consists of a barrel assembly, a plunger assembly and a sand control assembly.
The pump has long plunger and short barrel so that the plunger seals the barrel all the time.
Because of the special heat treatment towards the inside surface of the barrel, it is much better than the standard barrel in
anti-wear and anticorrosion capacity.

RH model technical specification table:

RH pump model OD of pump (in) Barrel length (ft) Plunger length (ft) Stroke length (ft) Extension length (ft) Tubing size EUE(in)
15-106RHBC Ø26.99 1.9"
20-125RHAC Ø31.75 2.1-10 0.3-8.0 1.2-9.0 0.3-0.9 2-3/8”
20-125RHBC
25-150RHAC Ø38.10 2-7/8”
25-150RHBC Ø38.10
25-175RHAC Ø44.45
25-175RHBC
30-225RHBC Ø57.15 3-1/2"
30-225RHAC

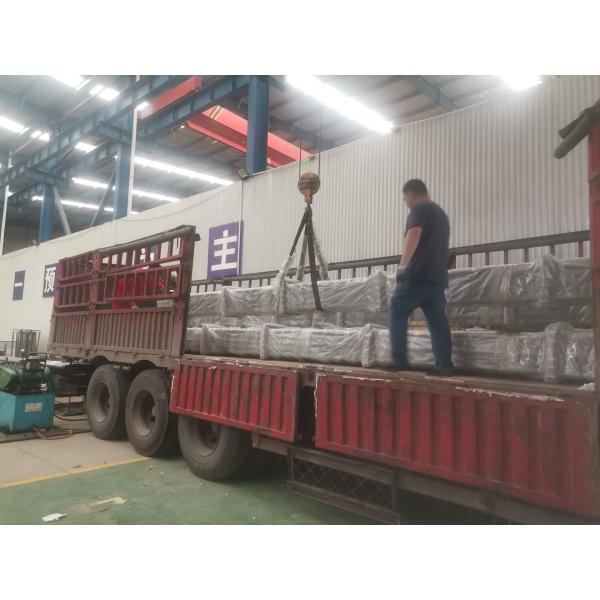

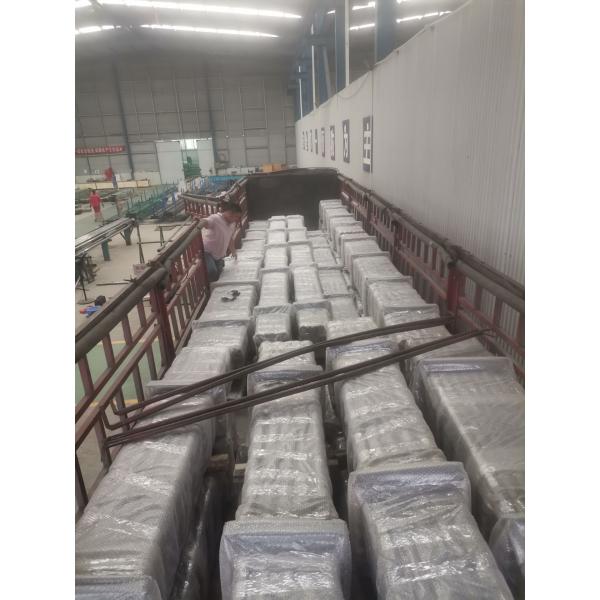

Pump packings in truck photo:

Customized Rod Type Downhole Pumps Spray Metal Plunger
