API Corrosion Resistance Bow Spring Centralizers Cementing Tool OD 21 1/4 Inch
API Corrosion Resistance Bow Spring Centralizers Cementing Tool OD 21 1/4 Inch
Specifications
Product :
Hinged Casing Centralizers
Installation :
Hinged Type
Color :
Red or As required
Type :
Non-Welded
Vane :
Rigid Type
Application :
Oilfield Cementing Equipment
Brand Name :
Puyang Zhongshi Group
Model Number :
4 1/2"~20"
Certification :
API,ISO,QHSE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, MoneyGram
Delivery Time :
depends on quantity
Packaging Details :
Wooden Box
Description

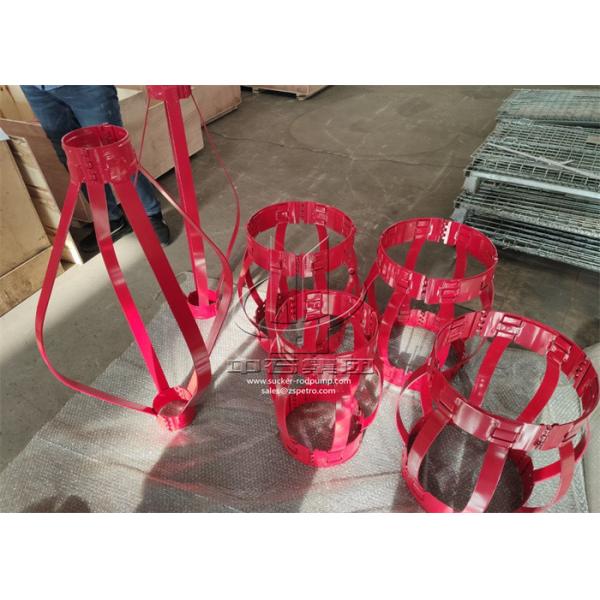

API Bow Spring Centralizers With Max OD of 21 1/4 Inch

Casing centralizer as a cementing tool is applied in vertical, deviated and horizontal wells to centralise casing to improving the cementing quality. The cement tools could be concreted firmed between casing and borehole wall.Our centralizer with API standard sizes range from 4-1/2” to 26” and surface is coated by powder baking or paint baking. The products have high tensile and yield strength, shock, impact and corrosion resistance performance.
Non-weled Hinged Rigid Crest Casing Centralizers Features
  • Under reamed and washed-out wells,corrosion resistance.
  • High quality spring steel bows are heat treated to fill the distances in the holes being measured
  • Various bow shapes and heights for centralizer are available to provide optimum restoring forces to meet most of well requirements.
Non-weled Hinged Rigid Crest Casing Centralizers Specification
Specification In-Dia(mm) Largest Dia
(mm)		 Wall Thickness(mm) Height (mm) Spring Number Total height(mm)
20”*26 510 660 3~5 55 12 600
18-5/8”*24 476 610 3~5 55 12 600
13-3/8”*17-1/2” 342-347 450 3~5 55 11 650
10-3/4”*12-1/4” 274-276 330 3~5 55 9 650
8-5/8”*12-1/4” 223-228 330 3~5 55 8 650
9-5/8”*12-1/4” 250-255 330 3~5 55 8 650
5-1/2”*8-1/2” 142-148 225 3~5 55 5 650
7”*9-5/8” 181-186 255 3~5 55 6 650
7”*8-1/2” 181-186 235 3~5 55 6 650

API Corrosion Resistance Bow Spring Centralizers Cementing Tool OD 21 1/4 Inch
