3/4 Oilfield Sucker Rods Wheeled Rod Guides 6.5ppf N80 Tubing API
3/4 Oilfield Sucker Rods Wheeled Rod Guides 6.5ppf N80 Tubing API
Specifications
Brand Name :
Zhongshi
Model Number :
sucker rod
Certification :
API ,ISO ,QHSE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000pcs
Delivery Time :
2weeks
Packaging Details :
exported packing
Type :
Sucker Rod,pony rod
Size :
1 1/8",3/4",1",5/8"-1-1/8"
Grade :
D,KD,HY,K,HL
Material :
alloy steel,AISI 4130
Length :
25-30ft,. or customized
Product name :
Alloy Steel Sucker Rod
Description

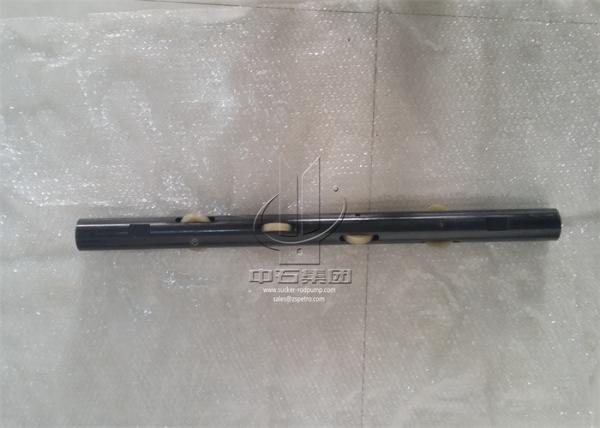

API Wheeled Rod Guides for 3/4 Sucker Rods & 2-7/8 6.5ppf N80 Tubing​

Products Description:

1) On the first two or three rods above the bottom hole pump.

2) Intermittently throughout the rod string where wear is indicated on rods or tubing.

3) Where known hole deviation occurs.

4) On the first two or three rods below the stuffing box.

Tech Parameter

Specification DIMENSIONS(INCH)
Diameter Length Length of the groove
5/8''ROD/2-3/8''TUBING 1.50 27 1.80
3/4''ROD/2-3/8''TUBING 1.50 27 1.80
5/8''ROD/2-7/8''TUBING 1.50 27 2.25
3/4''ROD/2-7/8''TUBING 1.50 27 2.28
7/8''ROD/2-7/8''TUBING 1.625 27 2.28
1''ROD/2-7/8''TUBING 2.0 29 2.28
3/4''ROD/3-1/2''TUBING 1.50 31 2.75
7/8''ROD/3-12''TUBING 1.625 31 2.75
1''ROD/3-1/2''TUBING 2.0 31 2.75

3/4 Oilfield Sucker Rods Wheeled Rod Guides 6.5ppf N80 Tubing API
