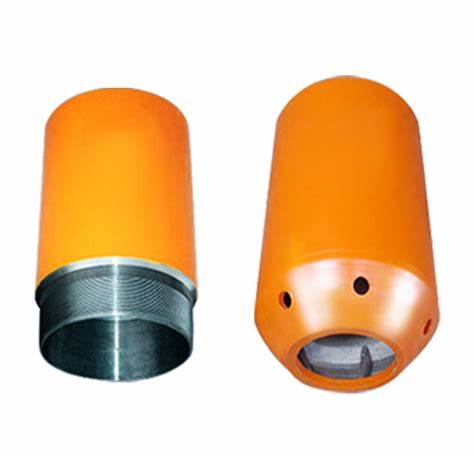

Precision Forging Cement Float Equipment 35 Mpa Reverse Pressure QHSE
Precision Forging Cement Float Equipment 35 Mpa Reverse Pressure QHSE
Specifications
Brand Name :
Puyang Zhongshi Group
Model Number :
4 1/2"~36"
Certification :
API,ISO,QHSE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, MoneyGram
Delivery Time :
depends on quantity
Packaging Details :
Wooden Box
Product :
Shell for Float Shoe
Processing :
Forging
Feature :
PDC drillable
Material :
P-110, K55, J55, N80,L80
Thread :
STC/BTC/LTC
Reverse pressure :
35 mpa
Description

Cementing tools float shoe and float collar Non-rotating type

Float Collar:

Float collar is a component installed near the bottom of the casing string on which cement plugs land during the primary cementing operation. It contains a check valve to permit fluid to pass downward but not upward through the casing. The float collar prevents drilling mud from entering the casing while it is being lowered, allowing the casing to float during its descent and thus decreasing the load on the derrick or mast.

Float Shoe:

Float show allow operator to maintain a constant fluid height inside the casing of a well. It also contains a check valve to prevent back flow. It functions similarly to the float collar but also serves as a guide shoe for the casing.

Features
  • All inner parts are made of easily drillable aluminum alloy.
  • The device can be connected directly to the casing of the same type.
  • Reliable back-pressure leak proof structure, enable grout or slurry flow with less resistance.
  • Valve seat and valve disk can effectively prevent grout from flowing back.
  • Non-rotating landing plate is available on request.
  • Either PDC or rock bit drillable.

Specification

Specification(in) O.D.(mm) I.D. (mm) Total length(mm) Min.Dia. (mm) Conn Type Affordable strength of back-pressure(Mpa)
Float Shoe 5 140.3 110 495 50 5 BCSG 35
5 1/2 153.67 122 514 55 5 1/2 BCSG 35
7 194.46 162.5 533 77 7 BCSG 35
9 5/8 269.88 225 550 77 9 5/8 BCSG 35
13 3/8 339.7 319 550 77 133/8 BCSG 35
20 534 475 652 77 20 BCSG 35
Float Collar 5 141.3 110 500 50 5 BCSG 35
5 1/2 153.67 112 530 55 5 1/2BCSG 35
7 194.46 162.5 586 77 7 BCSG 35
9 5/8 270 225 720 77 9 5/8 BCSG 35
13 3/8 365 319 720 77 133/8 BCSG 35
20 533.4 475 720 77 20 BCSG 35
