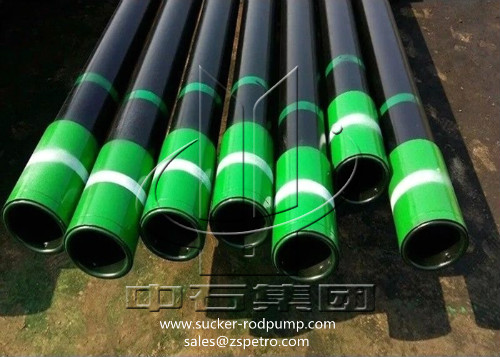

J55 Steel Oilfield Tubing Pipe , Tubulars Oil And Gas Eco - Friendly Feature
J55 Steel Oilfield Tubing Pipe , Tubulars Oil And Gas Eco - Friendly Feature
Specifications
Brand Name :
Zhongshi
Model Number :
1.05"-4 1/2"
Certification :
API 5CT, ISO, QHSE
Place of Origin :
China
MOQ :
1 metric ton
Price :
Negotiable
Payment Terms :
T/T, L/C
Packaging Details :
Be bundled by steel strap
Certificate :
API 5CT
Structure :
Seamless
Alloy steel or not :
Alloy steel
Steel grade :
J55, K55, L80, N80, P110, P110-13CR
Technique :
Hot rolled
OD :
1.05"- 4 1/2"
Description

Hot Sale Oilfield Tubing Pipe, J55 Steel Grade Oil Tubular Goods Pipe

Oil tubing description:

Oil tubing is widely used for transporting crude oil and natural gas to surface after drilling, which also

bears pressure from exploration.

Features:

1. Seamless oil pipe

2. Hot-rolling pipe

3. Size OD: 1.05”-4 1/2”

Technical specification:

Specification Weight code Outside diameter (mm) Wall thickness (mm) Inner diameter (mm) Calculated weight
NUE(with thread and coupling) EUE(with thread and coupling) Plain end (kg/m) Changed weight due to end process(kg)
Plain(with thread and coupling) External upset threaded and coupled
standard coupling special coupling
1.9 2.75 2.9 48.26 3.68 40.9 4.05 0.27 0.91 -
2-3/8 4.6 4.7 60.32 4.83 50.66 6.61 0.73 1.81 1.34
2-7/8 6.4 6.5 73.02 5.51 62 9.17 1.45 2.54 1.71
2-7/8 8.6 8.7 73.02 7.82 57.38 12.57 1.18 2.27 1.43
3-1/2 9.2 9.3 88.9 6.45 76 13.12 2.27 4.17 2.45
3-1/2 12.7 12.95 88.9 9.52 69.86 18.64 1.81 3.72 2
4 10.7 11 101.6 6.65 88.3 15.57 - 4.81 -
4-1/2 12.6 12.75 114.3 6.88 100.54 18.23 2.72 - -

Mechanical properties:

steel grade type total elongation under load (%)

yield strength (Mpa)

tensile strength (Mpa)

min

hardness

max
min max HRC HBW
H40 - 0.5 276 552 414 - -
J55 - 0.5 379 552 517 - -
K55 - 0.5 379 552 655 - -
N80 1 0.5 552 758 689 - -
N80 Q 0.5 552 758 689 - -
M65 - 0.5 448 586 586 22 235
L80 1 0.5 552 655 655 23 241
L80 9 Cr 0.5 552 655 655 23 241
L80 13 Cr 0.5 552 655 655 23 241
C90 1 0.5 621 724 689 25.4 255
P110 - 0.6 758 965 862 -

-


Dimension Tolerance:

Tolerance
Outside Diameter Pipe Body D≤101.60mm,±0.79mm
D≥114.30mm,+1.0%, -0.5%D
Coupling ±1%D
Wall Thickness 0, -12.5%t
Weight Single Lengths +6.5%,-3.5%
≥18144 kg(40000ib),0,-1.75%
Carload Lots or Order Quantity ＜18144 kg(40000ib),0,-3.5%

J55 Steel Oilfield Tubing Pipe , Tubulars Oil And Gas Eco - Friendly Feature
