API Oilfield Canvas 24 1/2'' Cement Basket Drilling
API Oilfield Canvas 24 1/2'' Cement Basket Drilling
Specifications
Brand Name :
Puyang Zhongshi Group
Model Number :
4 1/2"~20"
Certification :
API,ISO,QHSE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, MoneyGram
Delivery Time :
depends on quantity
Packaging Details :
Wooden Box
Product :
API Oilfield Drilling Canvas Cement Basket
Usage :
Well Drilling, cementing tool
Size :
4 1/2~24 inch
Material :
cavans
Bow number :
10~34
Type :
Umbrella Type
Description

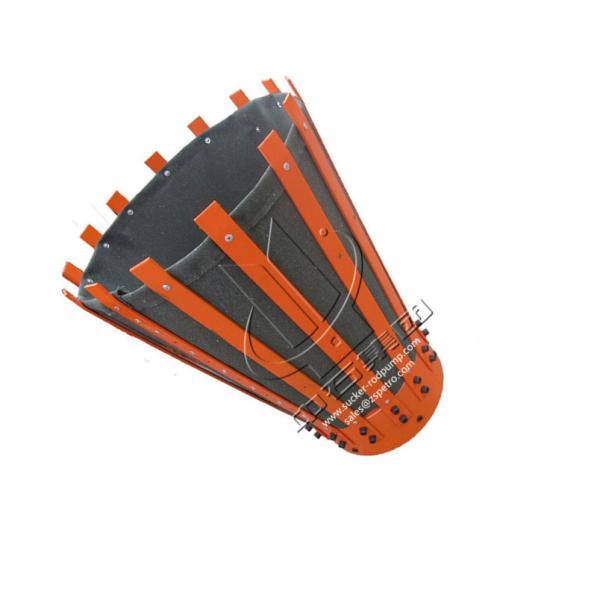

API Oilfield Drilling Canvas Cement Basket

It is designed with Flexible Bow Springs, heat-treated under controlled conditions for maximum strength and uniformity, are welded to slip-on collars and overlapping metal fins for flexibility and strength to support long columns of cement during primary cementing operations.

API Oilfield Drilling Canvas Cement Basket Features

  • The sizes are available for all kinds of hole sizes and standard casing.
  • Allows for casing rotation and reciprocation.
  • Better ability to adapt to the bore hole and can accommodate larger than nominal hole sizes.
  • Cementing Baskets may be run on casing, tubing or liners, and are designed to seal off zones below the basket from contamination by cement slurry.

API Oilfield Drilling Canvas Cement Basket Specification

Casing Size, in No. Of Bows Total Length, in Basket O.D. Min. Hole Size, in
in mm
4 1/2 10 24 1/2 12 1/2 317.5 6
5 10 24 1/2 13 342.9 6
5 1/2 12 24 1/2 13 1/2 342.9 7 1/4
6 5/8 12 24 1/2 14 5/8 371.5 8 3/8
7 14 24 1/2 15 381 8 3/8
7 5/8 14 24 1/2 15 3/8 396.9 9 1/2
8 5/8 16 24 1/2 16 5/8 422.3 10 5/8
9 5/8 18 24 1/2 17 5/8 447.7 11 5/8
10 3/4 18 24 1/2 18 3/4 476.3 12 3/4
11 3/4 20 24 1/2 19 3/4 501.7 13 3/4
11 3/8 24 24 1/2 21 3/8 542.9 15 1/2
16 28 24 1/2 24 609.6 18
18 5/8 34 24 1/2 26 5/8 676.3 20 5/8
20 34 24 1/2 28 711.2 22
