Chrome Plated Barrel API 11AX Well Pump Tubing
Chrome Plated Barrel API 11AX Well Pump Tubing
Specifications
Brand Name :
Zhongshi
Model Number :
Tubing pump
Certification :
API, ISO, QHSE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union, D/A
Supply Ability :
1000 SETS/MONTH
Delivery Time :
10~15 workdays
Packaging Details :
Standard exported packing
Application :
Oil pumping, water pumping
Type :
THC
Industry :
Oil production; coalbed gas
Pump barrel :
Chrome plated barrel
Plunger :
Spray metal plunger
Standard :
API 11AX
Description

Chrome Plated Barrel API 11AX Well Pump Tubing

Oil well tubing pump description:

The pump barrel assembly of the tubing pump connected on the tubing string,and with its down to the bottom of the well.Plunger assembly connected on the sucker rod string and with it down to the pump barrel position in the well,then with it do up and down reciprocating motion, so as to realize the production process.
In the process of production, when traveling valve and standing valve appear problems,we can pull the traveling valve and standing valve out the well through the sucker rod string, plungerand the puller ,instead of pull the whole pump and tubing string out of the well, reduce the labor intensity of operation, reduce the operation cost.

API-TH(B)C,Tubing ,Heavy Wall Barrel ,Cup Type Anchor Pump

Features


1. Well tubing pump's capacity is larger than sucker rod pump
2. Tubing pump is durable than sucker rod pump.

Main parts process and material:

Pump barrel: plain carbon steel plating (A1), ordinary carbon steel carbonitriding (B1), ordinary carbon steel carburizing (B2), low alloy steel nitride (B5).
Plunger: 1045 steel spraying (B1), 1045 steel spraying (B2), 1045 steel chrome plating (A1), 1045 steel double chrome plating (A2).
Valve ball and seat: stainless steel (A1), cobalt chromium (B2), tungsten carbide (C1), nickel and carbon compounds (C2), titanium carbide (C3).
Other accessories: plain carbon steel, low alloy steel, stainless steel, brass and other materials.

Technical parameter list

Specification pump diameter(in) Barrel length(ft) Plunger length(ft) stroke length(ft)

Tubing size

EUE(in)
20-175THM Ø44.45 7-34 1-26 4-29 2 3/8"
25-225THM Ø57.15 2 7/8"
30-275THM Ø69.85 3 1/2"
40-375THM Ø95.25 4 1/2"

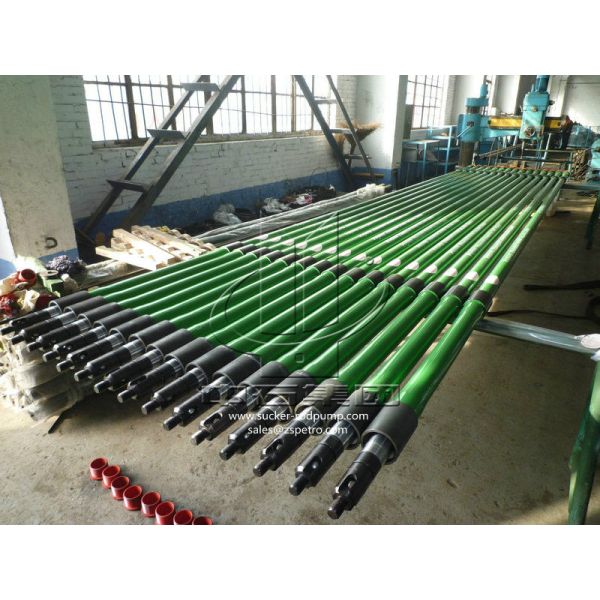

Chrome Plated Barrel API 11AX Well Pump Tubing

Chrome Plated Barrel API 11AX Well Pump Tubing
