Durable Rod Type Well Tubing Pump With Plunger 600-1200mm
Durable Rod Type Well Tubing Pump With Plunger 600-1200mm
Specifications
Brand Name :
ZHongshi
Model Number :
Tubing Pump
Certification :
API ,ISO ,QHSE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
1000 SETS/MONTH
Delivery Time :
10~15 workdays
Packaging Details :
Standard exported packing
Type :
Tubing pump
Structure :
Plunger pump
Barrel type :
Heavy wall barrel
Main parts :
Barrel, plunger, valve ball and seat
Industry :
Oil and gas production
Model :
THM, THC
Description

Durable Rod Type With Plunger Well Tubing Pump

Plunger well tubing pump description:

Downhole sucker-rod pumps are a key component of a sucker-rod lift type of artificial lift system.

The chrome plated pump barrel assembly of the tubing pump connected on the tubing string,and with its down to the bottom of the well.Plunger assembly connected on the sucker rod string and with it down to the pump barrel position in the well,then with it do up and down reciprocating motion, so as to realize the production process.

There are seven major components for downhole rod pumps: standing and traveling valves, plunger, barrel, seating assembly, pull tube or valve rod (for insert pump), and the fittings that hold the assembled pump together. The most common of these components and the final types of assembled pumps are covered by American Petroleum Institute (API) Specification 11AX.

Technical parameter list:

Tubing type pump

Pump designation Pump Bore(in) Length of Plunger (mm) Range of Stroke (mm) Pump Constant (m3/d) Size of matched tubing (in) Size of connecting Sucker Rod(mm) Length of extension Coupling
25-125 1.25 600-1200 600-1200 1.14 2-1/2 2-7/8 16 300-900
25-150 1.5 1.642 2-1/2 2-7/8 16
25-175 1.75 2.235 2-1/2 2-7/8 16
20-175
25-225 2.25 3.694 2-7/8 19
25-275 2.75 5.518 2-7/8 22
30-275 2.75 5.518 3-1/2 22
30-325 3.25 7.707 3-1/2 22
30-375 3.75 10.261 3-1/2 25
40-375 3.75 10.261 4 25

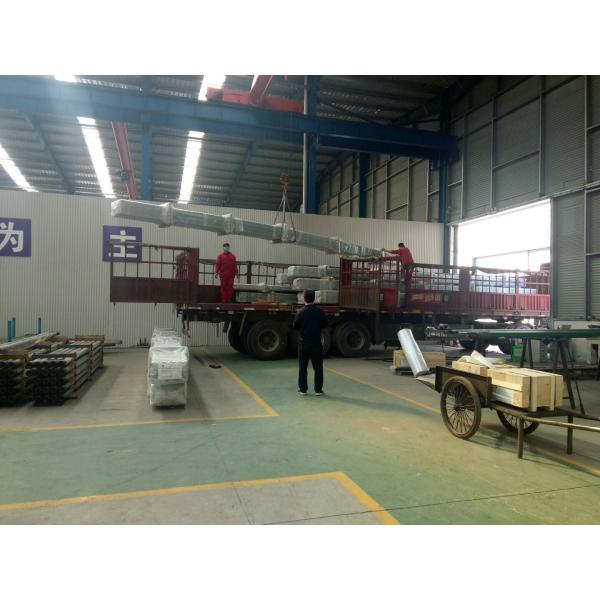

Product photo:

Durable Rod Type Well Tubing Pump With Plunger 600-1200mm
