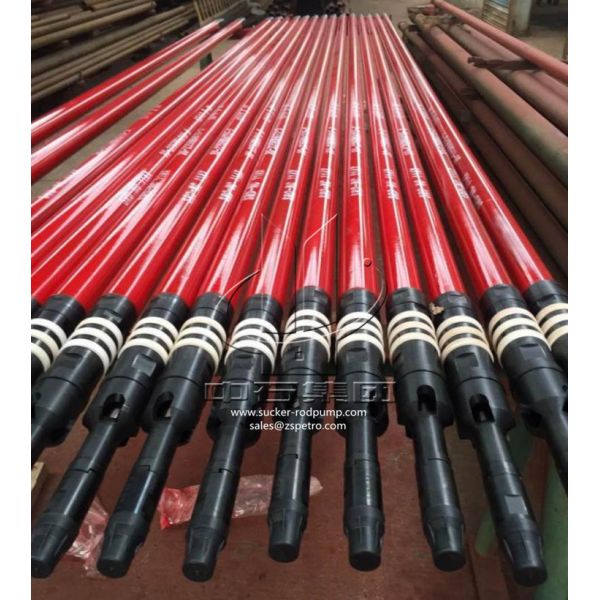

API High Pressure OD 73mm Sucker Rod Pump With Nickel Plated Barrel
API High Pressure OD 73mm Sucker Rod Pump With Nickel Plated Barrel
Specifications
Brand Name :
Zhongshi
Model Number :
Sucker rod pump
Certification :
API, ISO, QHSE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union, D/A
Supply Ability :
1000 SETS/MONTH
Delivery Time :
10~15 workdays
Packaging Details :
Standard exported packing
Product :
API High Pressure Sucker Rod Pump with Nickel-plated Barrel
Standard :
API 11AX
Size of Bore :
26.9-69.9mm
Application :
Oil,petroleum production
Length :
As request
Plunger length (ft) :
2-24
Description

API High Pressure Sucker Rod Pump with Nickel-plated Barrel

Product Description

The rod pump is connected to sucker rod after being assemblied on the surface then it is pulled down to the well bottom through the tubing.

The workover process of tubing pump is: firstly the barrel being connected to the tubing is directly run into the well at desired depth and then the plunger is run into the barrel with the sucker rod.

Technical Specifications:

Specification Nominal Bore
mm(in)		 Plunger Length
m(ft)		 Max. O.D.
mm		 Rod
in		 Tubing in Pump Constant m3/d Stroke
m
20-125 TH 32 (1.25) 1.2-1.8(4-6) 73 3/4 2-3/8 1.14 ≤8.0
25-125 TH 32 (1.25) 88.9 3/4 2-7/8 1.14
20-150 TH 38 (1.50) 73 3/4 (5/8) 2-3/8 1.64
25-150 TH 38 (1.50) 88.9 3/4 (5/8) 2-7/8 1.64
20-175 TH 44 (1.75) 73 3/4 2-3/8 2.24
25-175 TH 44 (1.75) 88.9 3/4 2 7/8 2.24
25-200 TH 51 (2.00) 88.9 3/4 2-7/8 2.91
25-225 TH 57 (2.25) 88.9 3/4 2-7/8 3.69
25-250 TH 64 (2.50) 88.9 3/4 3-1/2 4.55
30-275 TH 70 (2.75) 108 7/8 3-1/2 5.50
35-325 TH 83 (3.25) 116 7/8 4 7.70
40-375 TH 95 (3.75) 116 1 4-1/2 10.26
35-425 TH 108 (4.25) 147 1-1/8 4 13.18

Features:

1.According to API Spec 11AX

2.The barrel being connected to the tubing is directly run into the well

3.Suitable for the shallow well with shallow depth and high production

4.The plunger is run into the barrel with the sucker rod
