Chrome Plated Or Carbonitride Oilfield Pump Parts Insert Pump Barrel
Chrome Plated Or Carbonitride Oilfield Pump Parts Insert Pump Barrel
Specifications
Brand Name :
Zhongshi
Model Number :
Sucker rod pump
Certification :
API，ISO，QHSE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, D/P, D/A, L/C, Western Union
Supply Ability :
1000 Sets per Month
Delivery Time :
10~15 workdays
Packaging Details :
Standard exported packing
Product :
Chrome plated or Carbonitride Insert Pump Barrel
Usage :
Oil&field
Structure :
Piston Pump,Single-stage Pump
Material :
Alloy steel
Warranty :
one year
Feature :
High Efficiency
Description

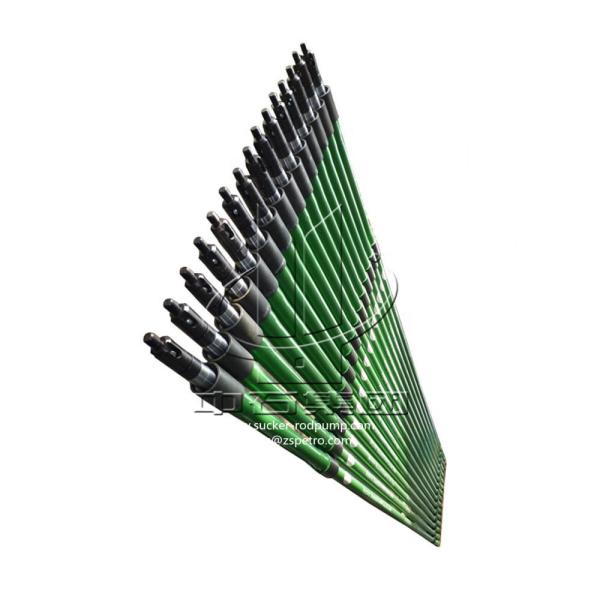

Chrome plated or Carbonitride Insert Pump Barrel

Product Description

The subsurface sucker rod pump is consist of tubing coupling, extension nipple, barrel coupling, barrel, traveling valve, plunger, extractor, stationary valve.

Features

  • Reduce the cost of pumping test.
  • Well inspection and workover is convenient.
  • Suitable for deeper well.
  • Rod pump can be pulled out from the well directly.

Technical Specifications:

Specification Nominal Pump Bore (in) Plunger Length(ft) Max.O.D.(mm) Rod(in) Tubing(in) Pump Constant (m3/d)
20-112RHBC 1.12 4~6 46.7 3/4 2 3/8 0.92
20-112RHBM 44.7
20-125RHBC 1.25 47.5 3/4 2 3/8 1.14
20-125RHBM 44.7
25-150RHBC 1.5 59.5 3/4 2 7/8 1.64
25-150RHBM 55.6
25-175RHBC 1.75 59.5 3/4 2 7/8 2.24
25-175RHBM 55.6
30-225RHBC 2.25 72.1 3/4 3 1/2 3.69
30-225RHBM 71.7
Chrome Plated Or Carbonitride Oilfield Pump Parts Insert Pump Barrel
