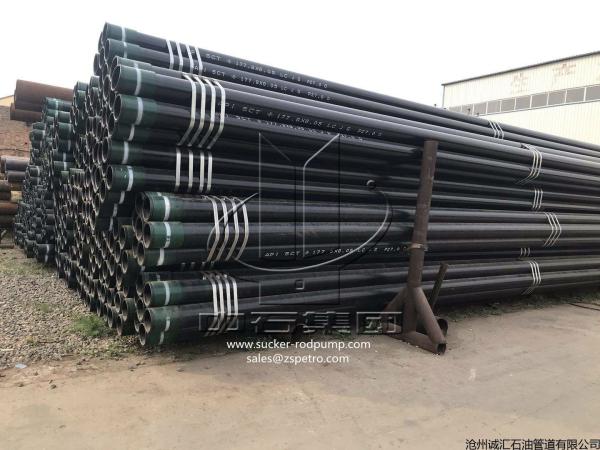

Alloy Steel Hot Rolled R2 API 5CT Oilfield Tubing Pipe
Alloy Steel Hot Rolled R2 API 5CT Oilfield Tubing Pipe
Specifications
Brand Name :
Zhongshi
Model Number :
1.05"- 4 1/2"
Certification :
API 5CT, ISO, QHSE
Place of Origin :
China
MOQ :
1 metric ton
Price :
Negotiable
Payment Terms :
T/T, L/C
Packaging Details :
Be bundled by steel strap
OD :
2 3/8"- 4 1/2"
Processing :
Hot rolled
Length :
R2
Alloy steel or not :
Alloy steel
Secondary or not :
Non-secondary
Application :
Oil transportation
Description

API 5CT Certified Oil Production Oilfield Tubing Pipe

Oil tubing description:

Oil tubing pipe is used for the transportation of crude oil and natural gas from oil or gas layer to the surface

after drilling is completed. Meanwhile, it can withstand the pressure generated during the oil production.

Features:

1. Alloy steel pipe

2. Hot-rolled processing

3. OD: 2 3/8"-4 1/2"

Technical specification:

Pipe Oil tubing pipe
Technique Hot Rolled pipe
Standard API 5CT
Surface Spray paint

API 5CT tubing:

Steel grades: H40,J55,K55,N80-1,N80-Q,L80-1,L80-9Cr,L80-13Cr,C90,C95,T95,P110,Q125

Connections: NUE,EUE,

Length:6-14m; R1,R2,R3, also can be manufactured according to customers’ requirements.

Mechanical properties:

steel grade type total elongation under load (%)

yield strength (Mpa)

tensile strength (Mpa)

min

hardness

max
min max HRC HBW
H40 - 0.5 276 552 414 - -
J55 - 0.5 379 552 517 - -
K55 - 0.5 379 552 655 - -
N80 1 0.5 552 758 689 - -
N80 Q 0.5 552 758 689 - -
M65 - 0.5 448 586 586 22 235
L80 1 0.5 552 655 655 23 241
L80 9 Cr 0.5 552 655 655 23 241
L80 13 Cr 0.5 552 655 655 23 241
C90 1 0.5 621 724 689 25.4 255
P110 - 0.6 758 965 862 -

-

Alloy Steel Hot Rolled R2 API 5CT Oilfield Tubing Pipe
