AISI4145H Alloy Steel Single Plug Oilfield Cementing Tools
AISI4145H Alloy Steel Single Plug Oilfield Cementing Tools
Specifications
Brand Name :
Puyang Zhongshi Group
Model Number :
4 1/2"~20"
Certification :
API,ISO,QHSE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, MoneyGram
Delivery Time :
depends on quantity
Packaging Details :
Wooden Box
Type :
Single Plug
Steel Grade :
J55,L80,N80,P110
Connection :
Thread connection or clamp
Thread :
API or as required
Working pressure :
3000~10000psi
Application :
Well drilling or well cementing
Description

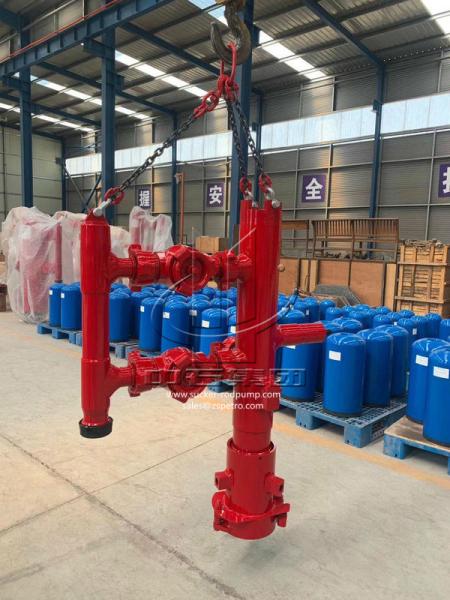

API 5CT Single Plug Cement Head

The single plug cementing head is special tool for pumping slurry and releasing plug and can be connected with casing.

Features
  • Main parts are made from AISI4145H alloy steel.
  • Quick-latch adapter is designed to offer easier, faster and safer makeup for two-stage cementing.
  • It is manufactured utilizing API grade steels with API threads.
  • Positive lever indicates plug releasing.
  • Balance pipe is developed.

Specification

Size(mm) Φ139.7 Φ168 Φ177.8 Φ194 Φ244.5 Φ273 Φ339.7
Specifications (in) (5 1/2") (6 5/8") (7") (7 5/8") (9 5/8") (10 3/4") (13 3/8")
Overall Length mm 1460 1500 1500 1550 1750 1750 1780
Manifold 2"Union
I.D. of Plug Container(mm) Φ125 Φ150 Φ160 Φ175 Φ225 Φ250 Φ320
Length of Plug Container(mm) 400 450 450 450 550 550 600
Working Pressure(MPa) 35,50 35,50 35,50 35,50 35,50 35 35

AISI4145H Alloy Steel Single Plug Oilfield Cementing Tools
