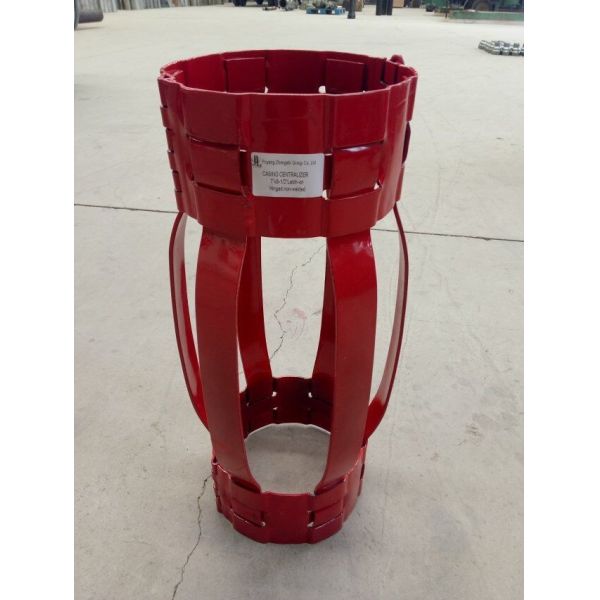

Rigid Casing Centralizers / Welded Spring Casing Centralizers For Oil Well Cementing
Rigid Casing Centralizers / Welded Spring Casing Centralizers For Oil Well Cementing
Specifications
Brand Name :
ZS
Model Number :
5-1/2"X8-1/2"to20"X26"
Certification :
API 11AX
Place of Origin :
China,Henan
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000sets/month
Delivery Time :
15 work days
Packaging Details :
Metal or wooden case
Type :
Bow Type Spring Centralizer
Material :
Stainless steel
central multimedia :
central machinery parts
central hydraulics scissor lift :
toyota central locking system
Weight (KG) :
10
Use :
Well Drilling
Color :
Customized
Description

API 10D Oilfield Cementing tool bow spring casing centralizer

Product Description

The composite centralizer is used during running and cementing operations to centralize casing. Made of advanced composite, with low coefficient of friction, heat resistant, and highly durable. Performs reliably even in extreme wellbore conditions,this centralizer withstands high-impact loading and is highly wear resistant.

It has a smooth, tapered construction to easily pass obstructions in the wellbore, suited for horizontal applications. Enables casing strings to reach total depth efficiently, provides optimal standoff for mud displacement, and greatly enhances cementing operations. Available in straight and spiral blade configurations.

Rigid Casing Centralizers / Welded Spring Casing Centralizers For Oil Well Cementing

Technical Parameter
Spring Casing Centralizer Size(In) OD(mm) IN(mm) Height(mm) Max Start-up Force(N) Min Reset Force(N)
20" 680 512 575 ≤16725 ≥8363
13-3/8" 455 342 560 ≤10853 ≥5427
9-5/8"*12-1/4" 335 248 560 ≤7117 ≥7117
7" 235 181 560 ≤4626 ≥4626
6-5/8"*8-3/4" 238 171 560 ≤4270 ≥4270
5-1/2”*8-1/2” 235 142 560 ≤2758 ≥2758
Rigid Centralizer 13-3/8" 437 344 180
9-5/8"*12-1/4" 305 248 120
7" 210 182 120
6-5/8"*8-3/4" 215 171 120
5-1/2"*8-1/2" 210 142 120

Semi-rigid Centralizer Single Bow Spring Centralizer Double-bow Spring Centralizer
Integral Centralizer Rigid Centralizer Rigid Roller Centralizer

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 1-5days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance.
