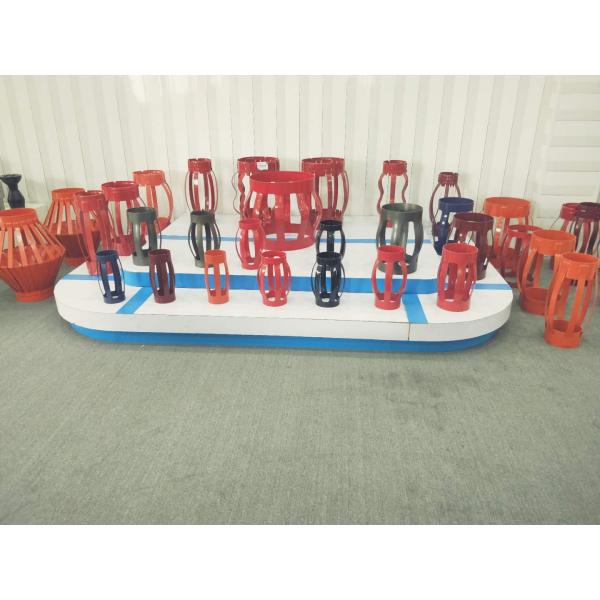

Resin Spiral Oil Casing Centralizers / Api Drilling Nonwelded Hinged Bow Casing Centralizers
Resin Spiral Oil Casing Centralizers / Api Drilling Nonwelded Hinged Bow Casing Centralizers
Specifications
Brand Name :
ZS
Model Number :
5-1/2"X8-1/2"to20"X26"
Certification :
API 11AX
Place of Origin :
China,Henan
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000sets/month
Delivery Time :
15 work days
Packaging Details :
Metal or wooden case
Type :
Bow Type Spring Centralizer
Material :
Stainless steel
central multimedia :
central machinery parts
central hydraulics scissor lift :
toyota central locking system
Weight (KG) :
10
Use :
Well Drilling
Color :
Customized
Description

API 10D Oilfield Cementing tool bow spring casing centralizer

Product Description

1. API single piece casing centralizer performs satisfactorily in open hole as well as cased hole.

2. These high quanlity product,developed to meet and exceed API 10D specifications for use in highly demanding downhole conditions.

3. Single piece casing centralizer combines the highest restoring force with zero start force and zero running force.

4. The single piece centralizer is used to position the casing in the center of the wellbore in vertical deviated and horizontal wells.

5. The single piece centralizer reduces the effect of channelling by improving the cement flow,the results in more uniform cement thickness in the well bore.

6. By reducing the pipe movement before cement sets in.The single piece centralizers are able to minimize gas channelling.

Resin Spiral Oil Casing Centralizers / Api Drilling Nonwelded Hinged Bow Casing Centralizers

Technical Parameter
Spring Casing Centralizer Size(In) OD(mm) IN(mm) Height(mm) Max Start-up Force(N) Min Reset Force(N)
20" 680 512 575 ≤16725 ≥8363
13-3/8" 455 342 560 ≤10853 ≥5427
9-5/8"*12-1/4" 335 248 560 ≤7117 ≥7117
7" 235 181 560 ≤4626 ≥4626
6-5/8"*8-3/4" 238 171 560 ≤4270 ≥4270
5-1/2”*8-1/2” 235 142 560 ≤2758 ≥2758
Rigid Centralizer 13-3/8" 437 344 180
9-5/8"*12-1/4" 305 248 120
7" 210 182 120
6-5/8"*8-3/4" 215 171 120
5-1/2"*8-1/2" 210 142 120

Semi-rigid Centralizer Single Bow Spring Centralizer Double-bow Spring Centralizer
Integral Centralizer Rigid Centralizer Rigid Roller Centralizer

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 1-5days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance.
