Specifications
Place of Origin :
China
Brand Name :
SUCE
Model Number :
OEM
Packaging Details :
Standard export package
Supply Ability :
10000 Set/Month
Price :
$1,999.00 - $2,500.00/Units
Certification :
CE,ISO13485
MOQ :
1pc
Payment Terms :
T/T, Western Union,Payoneer
Delivery Time :
about 10 days
Power Source :
Electric
Warranty :
1 Year
After-sale Service :
Online technical support
Material :
Acrylic
Shelf Life :
2 years
Quality Certification :
ce
Instrument classification :
Class II
Safety standard :
GB15979-2002
Product name :
ophthalmic ultrasound
LCD screen :
5.7 inch
Menu operation Language :
Chinese/English
Double probe sockets :
Yes
Display mode :
B, B/B, 4B, B/A, A
Gains range :
0--120dB
Dynamic range :
30-100dB, visual and adjustable
Gray :
256
Intelligent TGC adjustment :
8 segments
Build-in D disk :
4GB
Description
Product Description

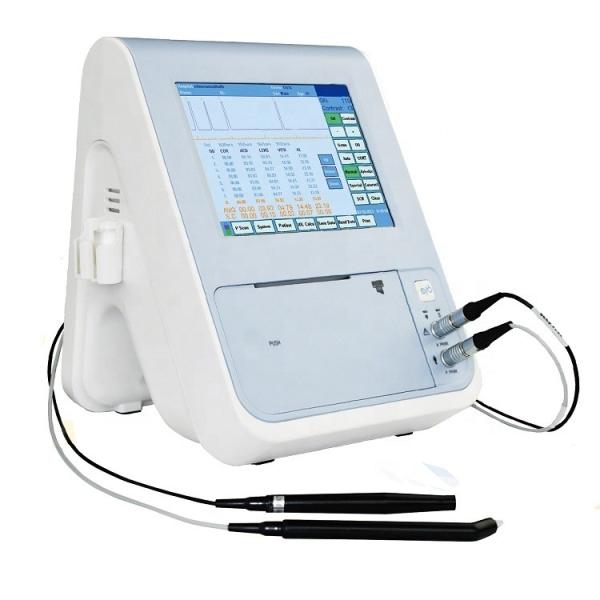

A scan B scan ophthalmic ultrasound scanner

It is a portable full digital A/P mode ultrasonic measuring instrument, which is composed of main unit, probe and so on. A-scan is suitable for measuring the anterior chamber depth, lens thickness, vitreous body length, axial length and calculating the IOL power for an implanted lens; P-scan is suitable for measuring the corneal thickness.
The expected service life of ophthalmological ultrasonic measuring instruments is 10 years. Applied part is ultrasonic probe.
Aprovides A-scan probe, it is used to measure axial length.
provides A-scan probe and P-scan probe, which is used to measure axial length and corneal thickness.

Technical Overview
A scan
Resolution
0.01mm
Gain adjustable
0-120dB
Measurement range
2-43mm(1640m/s
Accuracy
±0.02mm
Measuring parameter
ACD, LENS, body Length, axial length.
Eye mode
normal/aphakia/dense cataract/PMMA
Measuring Mode
Contact and Immersion, automatic and manual
2022 ophthalmic ultrasonic measuring equipment , Full Digital ophthalmic A/B ultrasound scanner
2022 ophthalmic ultrasonic measuring equipment , Full Digital ophthalmic A/B ultrasound scanner
Technical Overview
Bscan
Scan mode
High accuracy stepping motor drive sector scan
Scan Angle
53°
Display Depth
0～56mm
Gray
256
Frame frequency
10frames/s
Frame correlation
4
Compression Curve
4
Post-processing
8
Detailed Image
2022 ophthalmic ultrasonic measuring equipment , Full Digital ophthalmic A/B ultrasound scanner
2022 ophthalmic ultrasonic measuring equipment , Full Digital ophthalmic A/B ultrasound scanner
2022 ophthalmic ultrasonic measuring equipment , Full Digital ophthalmic A/B ultrasound scanner
2022 ophthalmic ultrasonic measuring equipment , Full Digital ophthalmic A/B ultrasound scanner
Specification
Technical Data
1. 1. Monitor: 7” LED
2. Adapter rating: 100-240V~,1.2-0.6A,50-60Hz
3. Output of adapter: DC12.8V 3.0A
4. Main device rating: DC12V 3.0A
5. Main Unit Size: approx. 200 * 168 * 165 (mm, L* W * H)
6. 6. Weight of main unit: approx. 7kg (excluding accessories)
