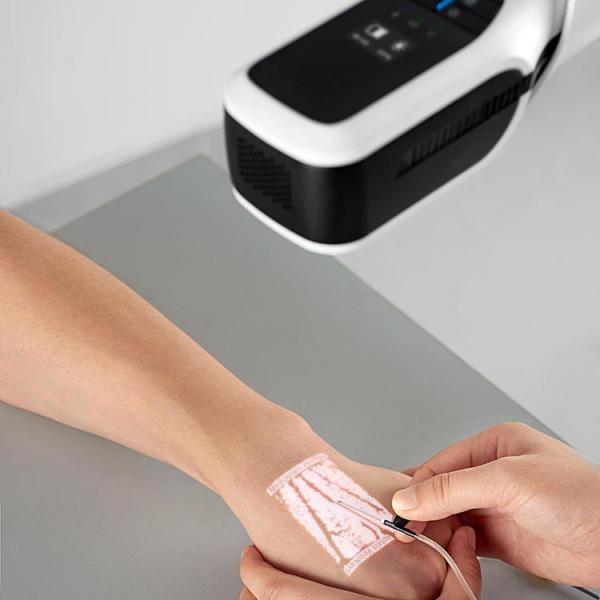

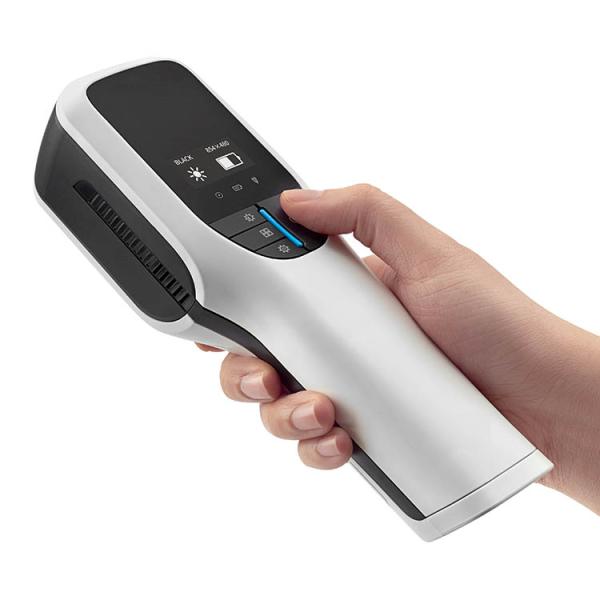

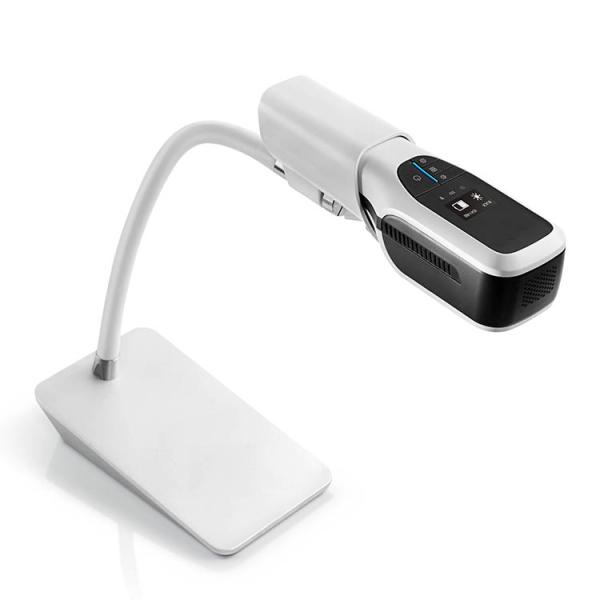

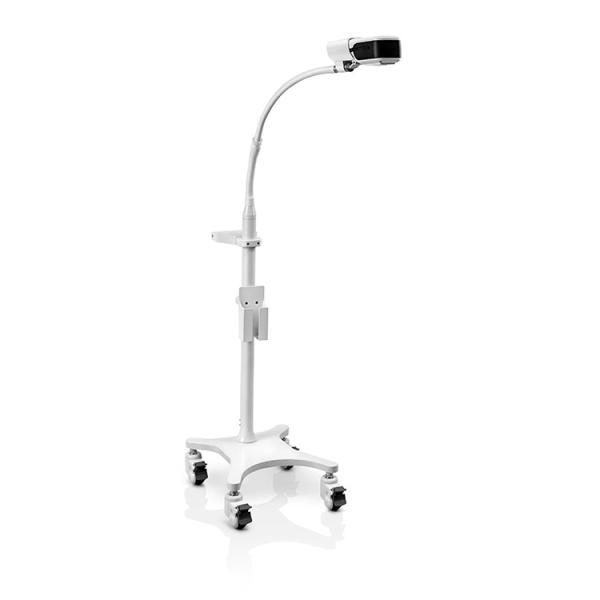

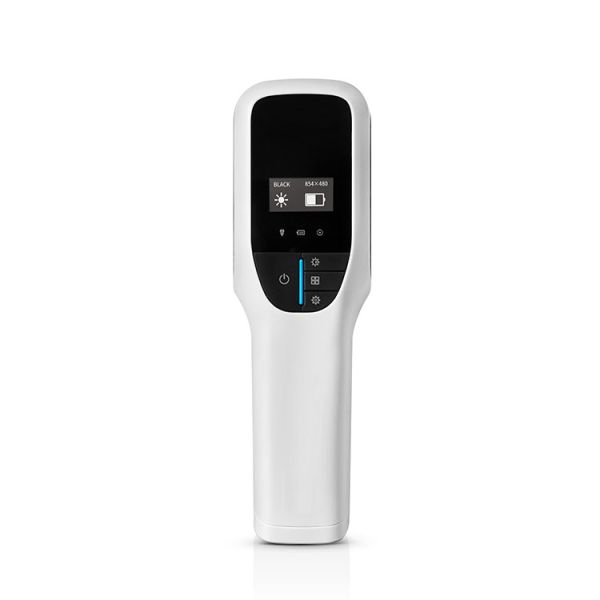

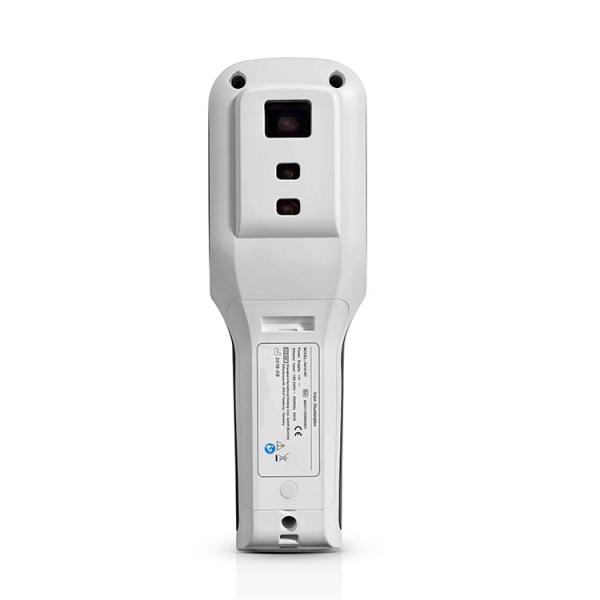

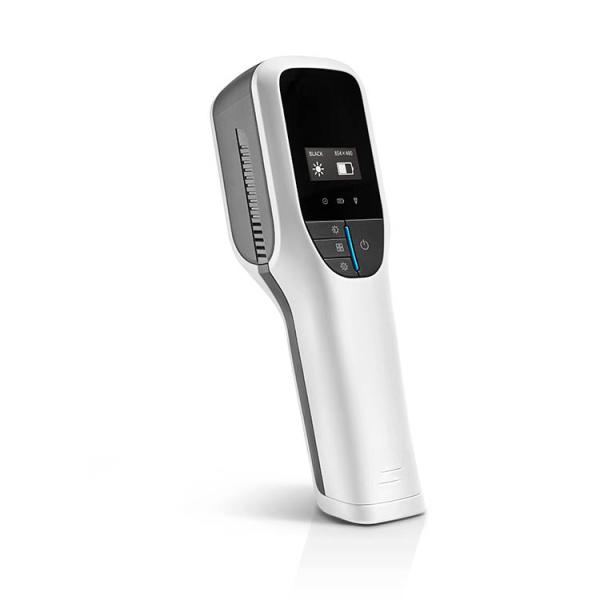

portable vein finder with stand medical infrared vein finder scanner medical vein finder
portable vein finder with stand medical infrared vein finder scanner medical vein finder
portable vein finder with stand medical infrared vein finder scanner medical vein finder
portable vein finder with stand medical infrared vein finder scanner medical vein finder
portable vein finder with stand medical infrared vein finder scanner medical vein finder
portable vein finder with stand medical infrared vein finder scanner medical vein finder
portable vein finder with stand medical infrared vein finder scanner medical vein finder
portable vein finder with stand medical infrared vein finder scanner medical vein finder
portable vein finder with stand medical infrared vein finder scanner medical vein finder
portable vein finder with stand medical infrared vein finder scanner medical vein finder
portable vein finder with stand medical infrared vein finder scanner medical vein finder
portable vein finder with stand medical infrared vein finder scanner medical vein finder
Specifications
Brand Name :
SUCE
Model Number :
OEM
Place of Origin :
China
Packaging Details :
standard exporting package
Supply Ability :
10000 Set/Month
Price :
$800.00 - $1,600.00/Sets
Certification :
CE,ISO13485
MOQ :
1PC
Payment Terms :
T/T, Western Union,Payoneer
Delivery Time :
about 10 days
Instrument classification :
Class II
Warranty :
2 years, 24 months
After-sale Service :
Online technical support
Product name :
Handheld Portable Infrared Vein Finder
Intended application :
Finding subcutaneous veins
Voltage :
110-240V AC 50/60Hz
Electric current :
1.5A
Power Consumption :
80VA
Light source :
Near Infrared Light
Optimal imaging distance :
270-330 mm
Dimension :
43*34*22cm
Description
Product Description

portable vein finder with stand medical infrared vein finder scanner medical vein finder

Name

portable vein finder

Dimensions

224(W)x68(H)x64(D)mm

Weight

About 0.5kg

Power Adapter

Input voltage: AC 100-240V50/60HZ 1.5A

Input power: 45 VA

Output voltage: DC 12V3.5A

Built-in lithium battery: 7.4V, 3000mAh

Continuous operation duration of the lithium battery: not shorter than 2.5 hours

Battery

Time required forfully charging an exhausted lithium battery: not longer than 4 hours Charge mode of the lithium battery: The battery can be charged using a power adapter when AC input is available.

Display Mode

Projection mode

Display Color

White, Red, Green, Blue, Purple, with Inverse mode

Display Window

720*576 pixel

Light Source Type

Near-infrared light

Infrared Wavelength

850nm dual light sources

Optimal Focus Position

210mm±30mm

Depth of Field of Imaging

>30 mm

Infrared Radiation Energy

<0.6mW/m2

Brightness level

4 levels adjustable

Operating Conditions

Temperature: 5°C-40°C

Humidity: 20%-90% RH, non-condensing

Pressure altitude: 70-106.OkPa

Storage and Shipping Conditions

Temperature: -20°C-+55°C

Humidity: 10%-95% RH, non-condensing

Pressure altitude: 61.7~107.4kPa

Classification

Class l/lnternally powered equipment

IPXO

Not sterilized

Not category AP/APG equipment

Mode of operation: continuous

Operation Screen (NAVI-60 only)

Displaying current battery status, color, brightness level and window size

portable vein finder with stand medical infrared vein finder scanner medical vein finderportable vein finder with stand medical infrared vein finder scanner medical vein finderportable vein finder with stand medical infrared vein finder scanner medical vein finderportable vein finder with stand medical infrared vein finder scanner medical vein finderportable vein finder with stand medical infrared vein finder scanner medical vein finderportable vein finder with stand medical infrared vein finder scanner medical vein finderportable vein finder with stand medical infrared vein finder scanner medical vein finder
