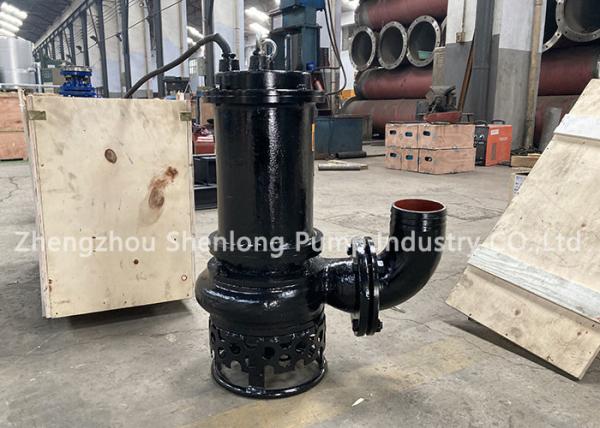

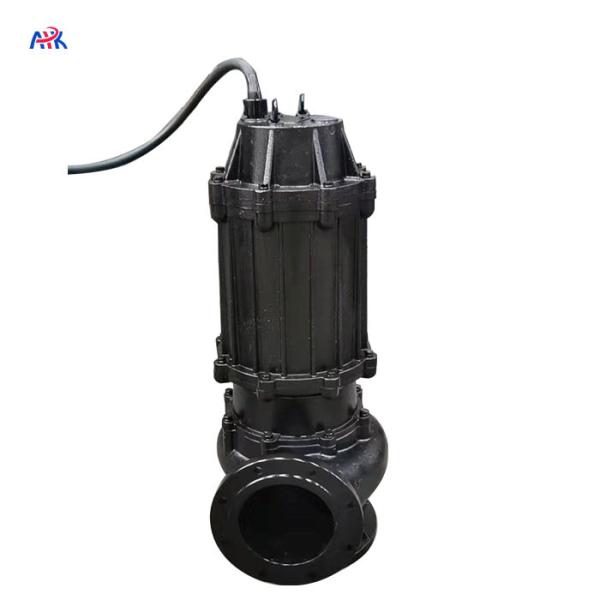

600m3/h flow 55kw 20 head WQ submersible sewage pump

600m3/h flow 55 power 20 head WQ submersible sewage pump for industrial working conditions:

1. The temperature of the medium does not exceed 40°C, the density of the medium is ≤1050kg/m, and the pH value is within the range of 4~10;

2. The altitude does not exceed 1000 meters. If it exceeds 1000 meters, please mention it when ordering;

3. The kinematic viscosity of the conveying medium is 3~6Pas;

4. Minimum operating liquid level: see H2 in the installation dimension diagram, the pump must not be used below the minimum liquid level:

5. The material of the pump is mainly cast iron, without special order, it cannot be used to transport medium with strong corrosiveness or strong corrosive solid particles:

6 The length of the fiber in the medium should generally not be greater than the diameter of the outlet of the pump. The maximum size of solids should not be larger than the values recommended in the parameter table. Note: Before selecting a pump or installing and using it, be sure to make the actual operating conditions of the pump meet the

The above terms, ensure the correct use of the pump!

600m3/h flow 55kw 20 head WQ submersible sewage pump Performance range:

Capacity:5-4500m3/h

Head:5-50m

Outlet diameter:φ25~φ600mm

Temperature:0~40℃

600m3/h flow 55kw 20 head WQ submersible sewage pump Application:

Raw waterrain water

Municipal and industrial waste water

Sewage treatment

Construction

Other industrial applications

600m3/h flow 55kw 20 head WQ submersible sewage pump Features:

1. The unique single-piece or double-blade impeller structure greatly improves the passing capacity of the dirt, and can effectively pass through fibrous materials 5 times the diameter of the pump and solid particles whose diameter is about 50% of the pump diameter.

2. The mechanical seal adopts new hard and corrosion-resistant titanium tungsten material, which can make the pump run safely and continuously for more than 8000 hours.

3. The overall structure is compact, the volume is small, the noise is low, the energy-saving effect is remarkable, and the maintenance is convenient. There is no need to build a pump room, and it can work when submerged in water, which greatly reduces the project cost.

4. According to the needs of users, it can be equipped with a fully automatic control cabinet to automatically protect the pump from water leakage, leakage overload and over temperature, which improves the safety and reliability of the product.

5. QW submersible sewage pump can be equipped with double guide rail automatic coupling installation system according to user needs, which is convenient and simple to install and maintain.

6. There are two different installation methods, fixed automatic coupling installation system and mobile free installation system.

It is precisely because of the above characteristics that sewage pumps have been paid more and more attention by people, and the scope of use has become wider and wider. From the original simple use to transport clean water to the current ones that can transport various domestic sewage, industrial waste water, construction sites, etc. Drainage, liquid feed, etc. It plays a very important role in various industries such as municipal engineering, industry, hospital, construction, restaurant, water conservancy construction and so on.

In addition to the 600m3/h flow rate 55kw 20 head WQ submersible sewage pump, we can also provide various submersible sewage pumps with a flow rate of 600m3/h. Their parameters are as follows:

If you need any type and type of submersible sewage pump, please contact us. Our email is enquiry02@apkpump.com Our Whatsapp is+86 17537187726.
