Specifications
Brand Name :
APK
Model Number :
QJ
Certification :
ISO9001;ISO14001;CE,BV; TUV; SGS; five stars after-sale service
Place of Origin :
Henan, China
MOQ :
1 set
Price :
Please feel free to contact us
Payment Terms :
T/T,Western Union,L/C,MoneyGram,D/P,D/A
Supply Ability :
8578 pieces per month
Delivery Time :
3-5 working days after payment confirmation
Packaging Details :
Deep well submersible pump is packed with export wooden case
Flow :
400m3/h 500m3/h submersible pump
Head :
14-123m
Power :
30-220kw
Diameter :
12 16 inch submersible pump
Voltage :
380v/440v/600v or as per request
Frequency :
3 Phase 50hz/60hz
Material :
Cast iron/SS304/SS316/SS316L/Duplex stainless/SS904L
ODM OEM :
Accept
Warranty :
24 months
Description

400m3/h 500m3/h 90kw 110kw multistage vertical electric water deep well submersible pump

400m3/h 500m3/h submersible pump parameters:

(It is regular submersible pump type in Shenlong pump factory, stainless steel 304/316/316l/duplex stainless/ss904L and 380v/440v/480v/600v/660v, etc. Please kindly choose submersible pump type you are interested.)

Well diameter Model Power Flow range Head range
Inch (") QJ type kw hp m3/h m
12" 300QJ400-40/1 75 100 368-432 38-42
12" 300QJ400-80/2 160 220 368-432 76-84
12" 300QJ400-120/3 220 300 368-432 117-123
12" 300QJ500-15/1 30 40 460-540 14-16
12" 300QJ500-30/2 75 100 460-540 29-32
12" 300QJ500-45/3 110 150 460-540 43-47
12" 300QJ500-60/4 140 190 460-540 57-63
12" 300QJ500-75/5 185 250 460-540 72-78
12" 300QJ500-90/6 220 300 460-540 72-78
16" 400QJ400-50/1 90 120 388-416 48-52
16" 400QJ500-20/1 45 60 460-540 18-22
16" 400QJ500-40/1 90 120 460-540 38-42
16" 400QJ500-80/2 185 250 460-540 77-83

400m3/h 500m3/h submersible pump applications:

1. Ground water pumping

2. sea water desalination, sea food factory

3. Sea water, shipyard, offshore, floating dock, salt water

4. Drawing water from well

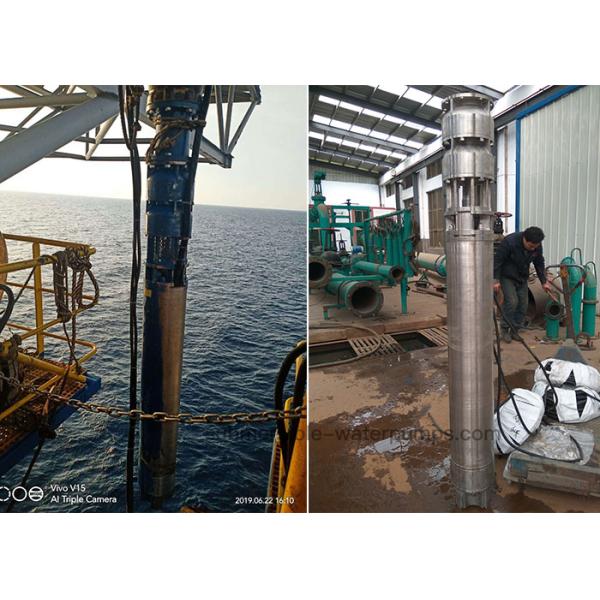

3 Phase 50hz / 60hz Deep Well Submersible Pump Multistage Vertical Installation

submersible pump testing

We have 36 sole duty quality control staffs. Among processional staffs are put in charge of Rotor dynamic balancing/Impeller static balance /Motor winding withstand voltage test /Hydrostatic pressure test of pressure bearing parts.
We 100% test every single one pumps before delivery.

3 Phase 50hz / 60hz Deep Well Submersible Pump Multistage Vertical Installation

Submersible pump package

all submersible pump packed with export standard wooden case

3 Phase 50hz / 60hz Deep Well Submersible Pump Multistage Vertical Installation

We do for you:

1: ODM for your own market;

2: OEM accepted: basic quality warranty, we short production term.

3: Over scheme design for special order.

4: Professional Training

3 Phase 50hz / 60hz Deep Well Submersible Pump Multistage Vertical Installation

1. What is your MOQ?

Our MOQ is 1 piece

2. Are you a factory or trading company?

We are a reputable submersible pump manufacturer. Provincial enterprise technology R and D Center. Welcome to visiting our factory.

3. How long does your submersible pump quality warranty?

24 months

4. How about your submersible pump quality?

We test each submersible pumps before deliver, testing video, testing pictures and testing report all could share.

5. How do we check our submersible pumps could working well when we get?

We have professional video to instruct, or contact us directly to email: enquiry02@apkpump.com

6. What will we do when our submersible pump not running well?

Please kindly contact us firstly by email or Whatsapp

7. May I could be your partner?

Yes, of course. If you would like to be our business partner, please kindly contact us for further information. We could share technical support, free technician, and award in the end of year.
