Agricultural Irrigation Water Deep Well Submersible Pump 200M3/H 500M3/H Big Capacity
Agricultural Irrigation Water Deep Well Submersible Pump 200M3/H 500M3/H Big Capacity
Agricultural Irrigation Water Deep Well Submersible Pump 200M3/H 500M3/H Big Capacity
Agricultural Irrigation Water Deep Well Submersible Pump 200M3/H 500M3/H Big Capacity
Specifications
Brand Name :
APK
Model Number :
submersible pump
Certification :
ISO9001;ISO14001;CE,BV; TUV; SGS; five stars after-sale service
Place of Origin :
Henan, China
MOQ :
1 piece
Price :
Please feel free to contact us
Payment Terms :
T/T, Western Union, L/C, MoneyGram, D/P, D/A
Supply Ability :
8578 pieces per month
Delivery Time :
7-15 working days after payment confirmation
Packaging Details :
Stainless steel submersible pump is packed with wooden case or 20 inch container.
Diameter :
10 12 16 inch submersible well pump
Horsepower :
25hp-300hp
Power :
18.5kw-220kw
Frequency :
3 Phase 50hz/60hz
Voltage :
380v/420v/440v/460v/480v/600v/660v/1140v
Head :
14-170m
Flow :
200m3/h 500m3/h submersible pump
Material :
Cast iron/stainless steel 304/316/316l/duplex stainless/super stainless steel/904l
Features :
Large capacity; anti-corrosive
Warranty :
24 months
ODM OEM :
Accept
Description

Agricultural Irrigation Water Deep Well Submersible Pump 200M3/H 500M3/H Big Capacity

200m3/h 500m3/h subemrsible pump parameters:

( cast iron/stainless steel 304/316/316l/duplex stainless/super stainless steel/904L and 380v/440v/480v/600v/660v .

Diameter Model Motor Power Flow Range Head Range
Inch (") QJ Series kw hp m3/h m
10" 250QJ160-150/10 110 150 186-214 128-170
12" 300QJ200-20/1 18.5 25 186-214 17-23
12" 300QJ200-30/1 25 35 186-214 27-33
12" 300QJ200-40/2 37 50 186-214 35-45
12" 300QJ200-60/3 55 75 186-214 51-69
12" 300QJ200-80/4 75 100 186-214 68-92
12" 300QJ200-100/5 90 120 186-214 85-115
12" 300QJ200-120/6 110 150 186-214 100-138
12" 300QJ500-15/1 30 40 460-540 14-16
12" 300QJ500-30/2 75 100 460-540 29-32
12" 300QJ500-45/3 110 150 460-540 43-47
12" 300QJ500-60/4 140 190 460-540 57-63
12" 300QJ500-75/5 185 250 460-540 72-78
12" 300QJ500-90/6 220 300 460-540 87-93
14" 400QJ500-20/1 45 60 460-540 18-22
14" 400QJ500-40/1 90 120 460-540 38-42
14" 400QJ500-80/2 185 250 460-540 77-83

Submersible pump performance range
1. Diameter: 10 12 14 inch submersible pump
2. Flow: 200m3/h 500m3/h submersible water pump
3. Head: 14m-170m
4. Power: 18.5kw-220kw
5. Voltage: 380v/440v/460v/480v/600v/660v/1140v
6. Material: Cast iron/stainless steel 304/316/316l/duplex stainless/super stainless steel/904l
Agricultural Irrigation Water Deep Well Submersible Pump 200M3/H 500M3/H Big Capacity

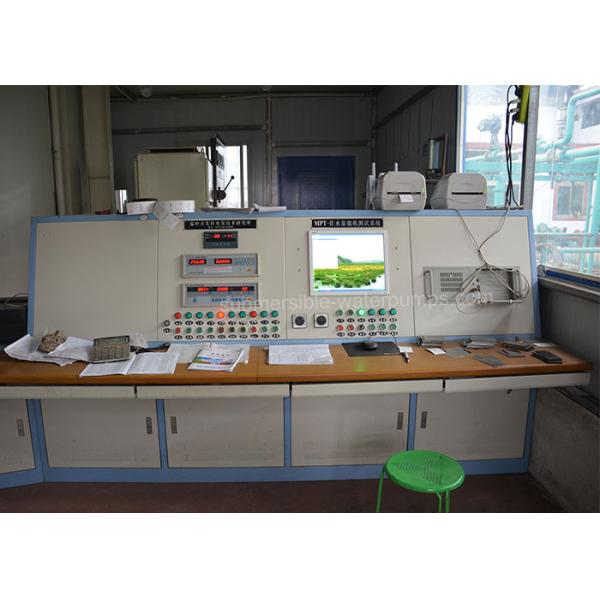

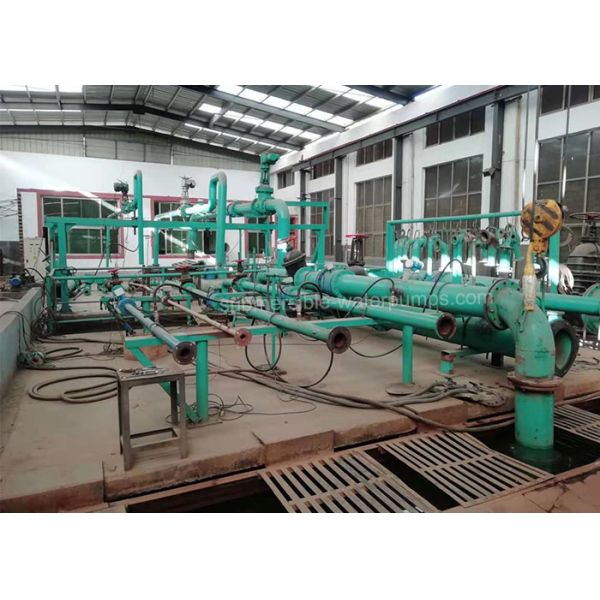

Testing: We test each single every submersible water pump before delivery, such as material analysis testing, casting testing, and submersible pump submerged in water for 48 hours to test leaking or not . Also we could send testing video, testing pictures, testing report.

Agricultural Irrigation Water Deep Well Submersible Pump 200M3/H 500M3/H Big Capacity

Agricultural Irrigation Water Deep Well Submersible Pump 200M3/H 500M3/H Big Capacity

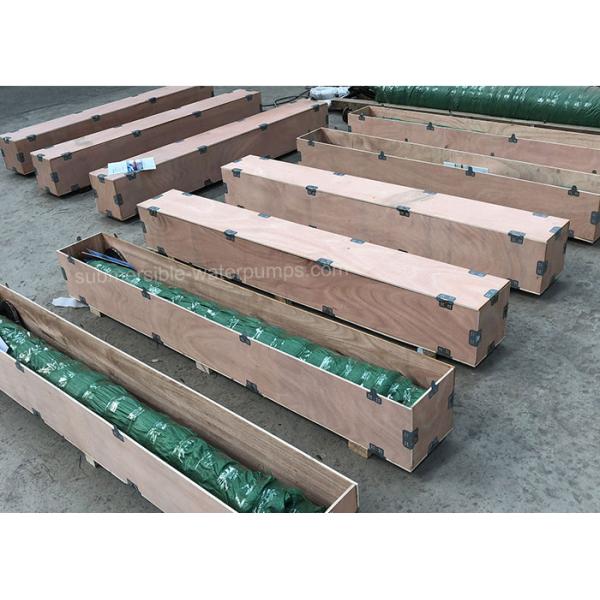

Package: all water pumps are packed with shock absorption,moisture-proof package, standard export wooden case

Agricultural Irrigation Water Deep Well Submersible Pump 200M3/H 500M3/H Big Capacity

1. What is your MOQ?

our MOQ is 1 piece.

2. Are you a trading company or a water pump manufacturer?

We are a ODM&OEM competitive reputable submersible water pump manufacturer.

3. How to know submersible pump quality?

Professional submersible pump manufacturers will test each submersible pump, raw material testing, pump set testing, testing video, testing report.

4. How to select a submersible pump type?

Application: clean water, sewage water, sea water

Material: cast iron/stainless steel 304/316/316L/duplex stainless/904L(sole pump manufacturer in China)

Flow rate

Head lift

Horsepower (hp) or kilowatts (kw)

Voltage and frequency: 380v/440v/480v/600v/660v/1140v.......3 phase 50hz/60hz

Attached pump accessories: cable length, control cabinet, frequency converter, valve, etc.

5. How many horsepower is a submersible well pump?

7.5kw-220kw are in stock, 220kw-410kw (special order) in Shenlong pump factory.
