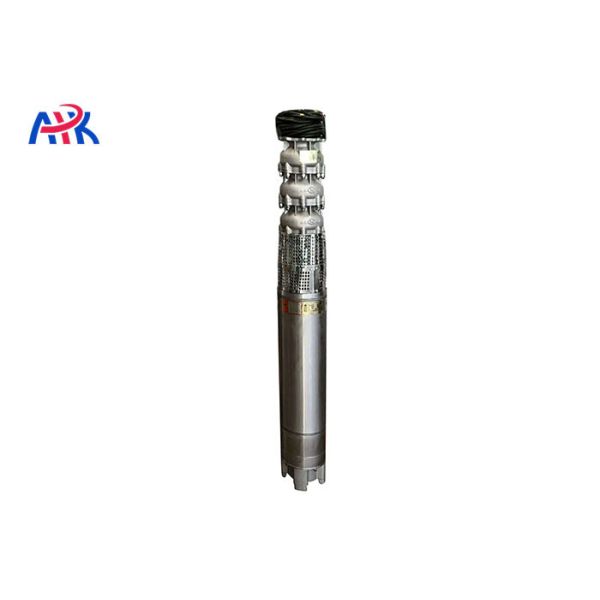

40m 50 HZ Three Phase Bomba Sumergible
40m 50 HZ Three Phase Bomba Sumergible
40m 50 HZ Three Phase Bomba Sumergible
40m 50 HZ Three Phase Bomba Sumergible
Specifications
Brand Name :
APK
Model Number :
stianless steel submersible pump
Certification :
ISO9001;ISO14001;CE,BV; TUV; SGS; five stars after-sale service
Place of Origin :
Henan, China
MOQ :
1 piece
Price :
Please feel free to contact us
Payment Terms :
T/T, Western Union, L/C, MoneyGram, D/P, D/A
Supply Ability :
8578 pieces per month
Delivery Time :
7-15 working days after payment confirmation
Packaging Details :
Stainless steel submersible pump is packed with wooden case or 20 inch container.
Diameter :
7 8 10 12 14 16 inch submersible pump
Horsepower :
15hp 25hp 30hp 85hp 150hp submersible pump
Power :
11kw 18.5kw 22kw 63kw 110 kw submersible pump
Frequency :
3 Phase 50hz/60hz
Voltage :
380v/420v/440v/460v/480v/600v/660v/1140v
Head :
22m-465m
Flow :
18m3/h-540m3/h
Material :
Stainless steel 304/316/316l/duplex stainless/super stainless steel/904l
Features :
anti-corrosive
Warranty :
24 months
ODM OEM :
Accept
Description

11kw 18.5kw 22kw 63kw 110 kw Stainless steel subemrsible pump parameters:

( stainless steel 304/316/316l/duplex stainless/super stainless steel/904L and 380v/440v/480v/600v/660v .

Diameter Model Power Flow range Head range
Inch (") QJ type kw hp m3/h m
8" 200QJ20-148/11 15 20 18-22 126-170
8" 200QJ20-175/13 18.5 25 18-22 150-210
8" 200QJ20-202/15 22 30 18-22 172-232
8" 200QJ20-243/18 25 35 18-22 206-280
8" 200QJ20-283/21 30 40 18-22 240-325
8" 200QJ20-338/25 37 50 18-22 287-388
8" 200QJ20-405/30 45 60 18-22 345-465
8" 200QJ25-98/7 11 15 23-27 84-112
8" 200QJ25-126/9 15 20 23-27 100-145
8" 200QJ25-154/11 18.5 25 23-27 138-184
8" 200QJ25-182/13 22 30 23-27 150-210
8" 200QJ25-224/16 30 40 23-27 190-258
8" 200QJ25-294/21 37 50 23-27 250-340
8" 200QJ32-128/8 22 30 29-35 106-150
8" 200QJ50-65/5 15 20 46-54 52-78
8" 200QJ63-126/9 37 50 58-68 100-147
8" 200QJ100-90/6 45 60 80-120 88-92
10" 250QJ50-140/7 30 40 46-54 119-161
10" 250QJ50-340/17 75 100 46-54 315-375
10" 250QJ80-220/11 90 120 74-86 190-250
10" 250QJ100-216/12 100 135 80-120 190-252
10" 250QJ125-192/12 110 150 113-134 163-220
10" 250QJ140-180/12 125 170 130-145 156-205
12" 300QJ200-40/2 37 50 186-214 35-45
12" 300QJ300-80/4 110 150 279-321 68-92
12" 300QJ400-120/3 220 300 368-432 117-123
12" 300QJ500-60/4 140 190 460-540 57-63
14" 350QJ250-25/1 30 40 233-267 22-28

40m 50 HZ Three Phase Bomba Sumergible

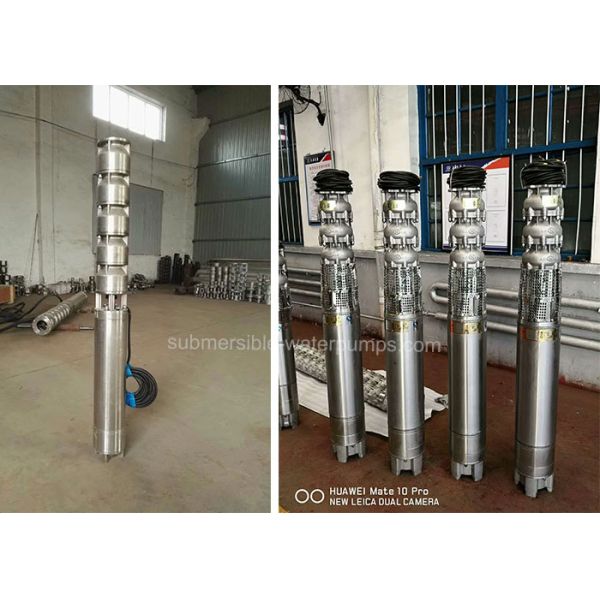

Testing: We test each single every submersible water pump before delivery, such as material analysis testing, casting testing, and submersible pump submerged in water for 48 hours to test leaking or not . Also we could send testing video, testing pictures, testing report.

40m 50 HZ Three Phase Bomba Sumergible

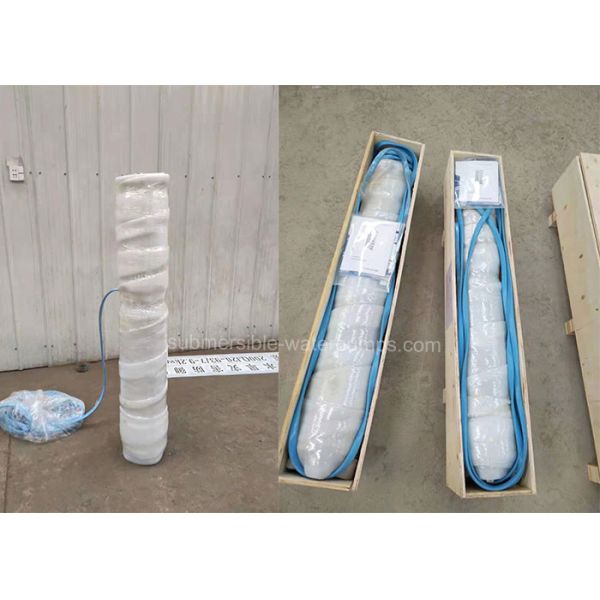

Package: submersible pump has 3 layers of packaging with 8mm special export wooden box; Shock absorption,moisture-proof package, standard export wooden case

40m 50 HZ Three Phase Bomba Sumergible

FAQ:

1. What is your MOQ?

our MOQ is 1 piece, large order will have a discount.

2. How to know a submersible pump price?

Please kindly tell us what pump requirements you want, or contact us including details as below:

  • Application: clean water, sewage water, sea water
  • Material: cast iron/stainless steel 304/316/316L/duplex stainless/904L(sole pump manufacturer in China)
  • Flow rate (m3/h, l/s)
  • Head lift (m)
  • Horsepower (hp) or kilowatts (kw)
