30KW Well Pump For Construction Industry Production Stainless Steel
30KW Well Pump For Construction Industry Production Stainless Steel
30KW Well Pump For Construction Industry Production Stainless Steel
30KW Well Pump For Construction Industry Production Stainless Steel
30KW Well Pump For Construction Industry Production Stainless Steel
30KW Well Pump For Construction Industry Production Stainless Steel
Specifications
Brand Name :
APK
Model Number :
QJ
Certification :
ISO;CE,BV; TUV; CCC
Place of Origin :
Henan China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
9863 sets per month
Delivery Time :
Within 2-5 working days upon receipt of payment
Packaging Details :
Deep well submersible pump is packed by wooden case or as your request.
Flow Rate :
9m3/h-172m3/h
Head :
31m-265m
Voltage :
380v-140v
Power :
9.2kw 10kw 11 kw 13kw 15kw
Frequency :
3 phase 50hz/60hz
Material :
Cast Iron
Install :
Vertical
Certificates :
ISO, CE,BV, TUV, CCC
Description

30KW Well Pump For Construction Industry Production Stainless steel

30KW Well Pump For Construction Industry Production Stainless steel Description:

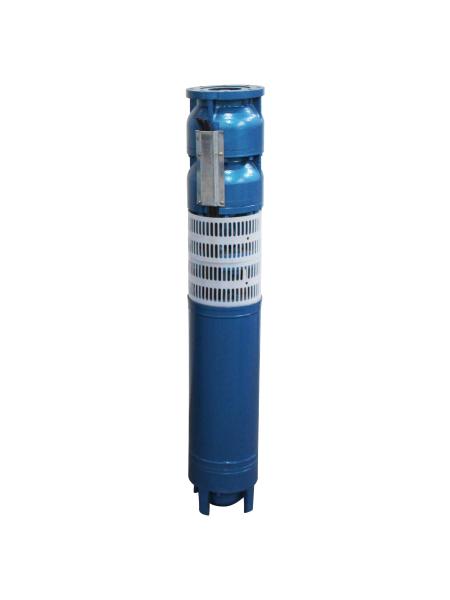

QJ type deep well submersible pump is a device for extracting groundwater from deep wells. It is composed of multi-stage centrifugal impellers connected in series. Composed of QJ type submersible pump and YQS type submersible motor, it can be submerged underwater to work; the requirements of well pipe and water pipe (ie: steel pipe well, gray pipe well, soil well, etc. can be used; under pressure, steel pipe, rubber pipe, plastic pipe, etc. can be used. Pipes, etc. can also be used for water pipes); no need to build a pump house Small footprint, save raw materials, simple structure, small size, light weight, easy installation, reliable operation, energy saving, high efficiency, less failures, low maintenance costs, etc. Before use, you need to fill the motor with clean water, and then it can run normally.

30KW Well Pump For Construction Industry Production Stainless steel Application:

It is suitable for farmland irrigation, water supply for mining enterprises, farm water for plateaus and mountainous areas, construction industry, food and beverage industry and household (or high-rise water delivery) use). QJR type hot water submersible pump for wells is used to extract underground hot water.

30KW Well Pump For Construction Industry Production Stainless steel Product number:

150 QJ (R) 10 - 150

150 Applicable well diameter 150 meters

QJ(R) Model Features: Well Submersible Pump (Hot Water)

10 quota flow: 10 cubic meters / hour

150 rated lift: 150 meters

30KW Model Of Well Pump For Construction Industry Production Stainless steel:

Model Power Flow rate Head meters Outlet diameter
QJ type kw hp m3/h m Inch(")
200QJ20-135/10 15 20 20 135 2"
200QJ20-175/13 18.5 25 20 175 2"
200QJ20-202/15 22 30 20 202 2"
200QJ20-283/21 30 40 20 283 2"
200QJ20-338/25 37 50 20 338 2"
200QJ25-182/13 22 30 25 182 2"
200QJ25-294/21 37 50 25 294 2"
200QJ32-104/8 18.5 25 32 104 3"
200QJ32-144/9 22 30 32 144 3"
200QJ32-195/15 30 40 32 195 3"
200QJ32-234/18 37 50 32 234 3"
200QJ40-117/9 22 30 40 117 3"
200QJ40-208/16 37 50 40 208 3"
200QJ50-78/6 18.5 25 50 78 3"
200QJ50-91/7 22 30 50 91 3"
200QJ63-112/8 30 40 63 112 3"
200QJ80-44/4 15 20 80 44 4"
200QJ80-88/8 30 40 80 88 4"
200QJ100-75/5 37 50 100 75 4"
250QJ50-80/4 18.5 25 50 80 3"
250QJ50-340/17 75 100 50 340 3"
250QJ63-60/3 18.5 25 63 60 3"
250QJ63-100/5 30 40 63 100 3"
250QJ63-260/13 75 100 63 260 3"
250QJ100-72/4 30 40 100 72 4"
250QJ125-128/8 75 100 125 128 5"
250QJ160-105/7 75 100 160 105 5"
300QJ200-20/1 18.5 25 200 20 6"
300QJ240-22/1 22 30 240 22 6"
300QJ300-20/1 25 35 300 20 6"
300QJ300-40/2 55 75 300 40 6"
300QJ300-60/3 75 100 300 60 6"
300QJ300-80/4 110 150 300 80 6"
300QJ300-100/5 140 190 300 100 6"
300QJ300-120/6 160 220 300 120 6"
300QJ300-140/7 185 250 300 140 6"
300QJ300-160/8 220 300 300 160 6"
350QJ320-40/2 63 85 320 40 8"
350QJ320-90/3 140 190 320 90 8"
350QJ320-120/4 185 250 320 120 8"
400QJ400-50/1 90 120 400 50 8"
450QJ500-80/2 185 250 500 80 8"
450QJ800-16/1 75 100 800 16 12"
450QJ1000-16/1 90 120 1000 16 12"
500QJ640-56/2 185 250 640 56 10"
550QJ1200-18/1 110 150 1200 18 16"
600QJ800-50/2 220 300 800 50 12"
600QJ800-75/3 300 400 800 75 12"
600QJ1000-20/1 110 150 1000 20 12"
600QJ1000-40/2 220 300 1000 40 12"
600QJ1000-60/3 300 400 1000 60 12"
