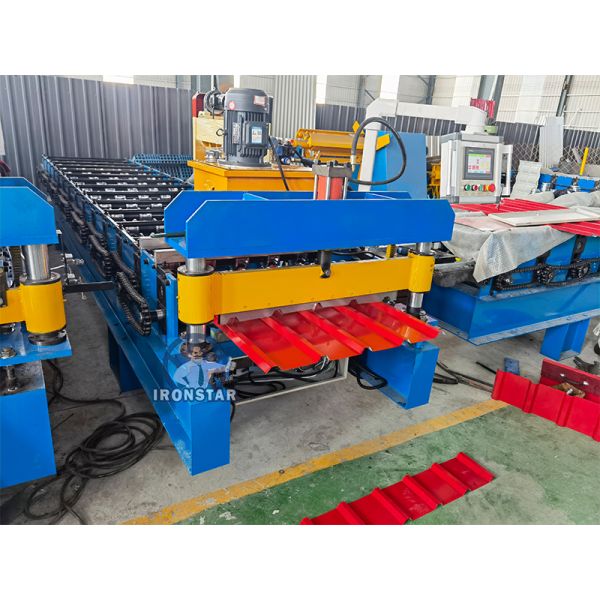

“Automatic 840 Roof Panel Cold Roll Forming Machine For Galvanized Steel & Color Coil 840 IBR Metal Roof Panel Roll Forming Machine Construction Material Making Machinery ”
“Automatic 840 Roof Panel Cold Roll Forming Machine For Galvanized Steel & Color Coil 840 IBR Metal Roof Panel Roll Forming Machine Construction Material Making Machinery ”
“Automatic 840 Roof Panel Cold Roll Forming Machine For Galvanized Steel & Color Coil 840 IBR Metal Roof Panel Roll Forming Machine Construction Material Making Machinery ”
“Automatic 840 Roof Panel Cold Roll Forming Machine For Galvanized Steel & Color Coil 840 IBR Metal Roof Panel Roll Forming Machine Construction Material Making Machinery ”
Specifications
Brand Name :
IRONSTAR
Model Number :
Customized
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
As Drawing
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
10 Sets/Month
Delivery Time :
30-50 days
Packaging Details :
Tarpaulins and wooden cases
Name :
Roof Sheet Roll Forming Machine Price
Raw material :
PPGI
Warranty :
3 years
Export port :
Tianjin port
Container :
20 feet container
Working days :
40 working days
Customized :
Yes
Description

Customized 0.3-0.8mm Metal Steel Trapezoidal IBR Long Span Roof Sheet Roll Forming Machine Price

Roof Sheet Roll Forming Machine Price

Long span roll forming machine popular sell in many countries, common trapezoidal roofing sheet rolling thickness from 0.3-0.6 mm, material use PPGI (Pre-Painted Galvanized Steel ) material

We sell lots of such long span roofing sheet roll forming machine to Guyana, South Africa, Tanzania, Nigeria, India etc. We can assure finished products overlap accuracy control in ±1 mm. Size can customize can your need size

840 roofing sheet roll forming machine | metal roof roll forming machine | metal roof machine | long span roll forming machine

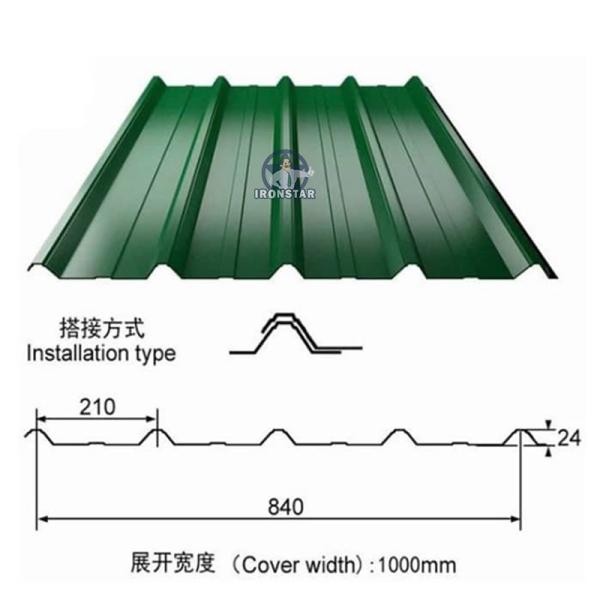

Product drawing

“Automatic 840 Roof Panel Cold Roll Forming Machine For Galvanized Steel & Color Coil 840 IBR Metal Roof Panel Roll Forming Machine Construction Material Making Machinery ”

Work flow of 840 mm roof sheet roll forming machine

Decoiler-roll forming machine-PLC control box-hydraulic cutter-Run out table

“Automatic 840 Roof Panel Cold Roll Forming Machine For Galvanized Steel & Color Coil 840 IBR Metal Roof Panel Roll Forming Machine Construction Material Making Machinery ”

Diameter of 840 mm roof sheet roll forming machine

NO

Type

 Specification

1

 Raw material Type PPGI
Feeding width As customer' drawing
Thickness 0.3-0.6 mm

2

 Decoiler Operation Manual
Weight apacity 5 Tons

3

 Main body Roller station 11 rows
Diameter of shaft 70 mm
Shaft material 45# with 0.05mm chrome
Roller material 45# with 0.05mm chrome
Frame 360mm C-beam
Frame thickness 16 mm
Machine size About 6*1*1.5 m
Machine weight About 3.5 tons
Machine color As customer need
Operation Hydraulic automatic
Working speed Common speed 8-20 m/min
4 Cutter Hardness 50-65 HRC
Cutting tolerance ± 1mm
Material Cr 12
Operate Hydraulic cutting
5 Power Driving way Chain 1 inch
Main motor 4 KW
Pump motor for cutter 3 KW
Voltage 380V/50HZ, 3 phase or ass customer' request

6

 Control box Electric box PLC control system, inventer
Screen Touchable screen
PLC brand Delta made in Taiwan
Inverter brand Delta made in Taiwan or SAJ
Language Chinese and English or as customer' request
7 Stacker Operation Manual
Length 2-3 m

Feeder decoiler

“Automatic 840 Roof Panel Cold Roll Forming Machine For Galvanized Steel & Color Coil 840 IBR Metal Roof Panel Roll Forming Machine Construction Material Making Machinery ”

It is used to stand the steel coil and uncoil, keep them work stably

Loading capacity: 5 tons

Coil inner size: 470-530 mm

Work type: Manual operation

Color: As customer' request

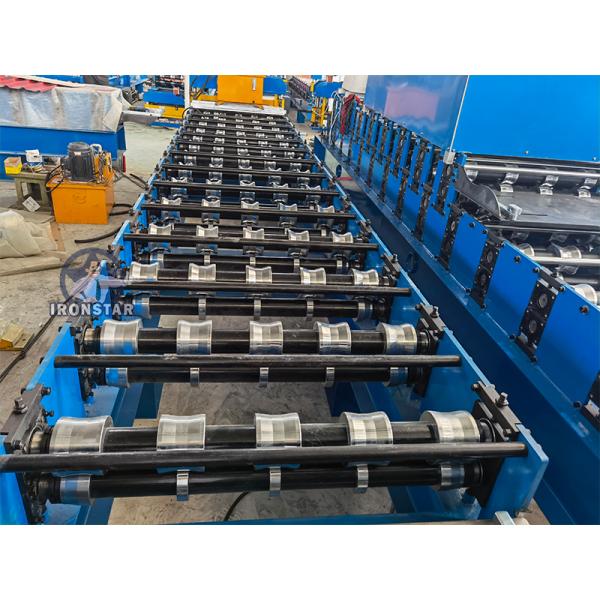

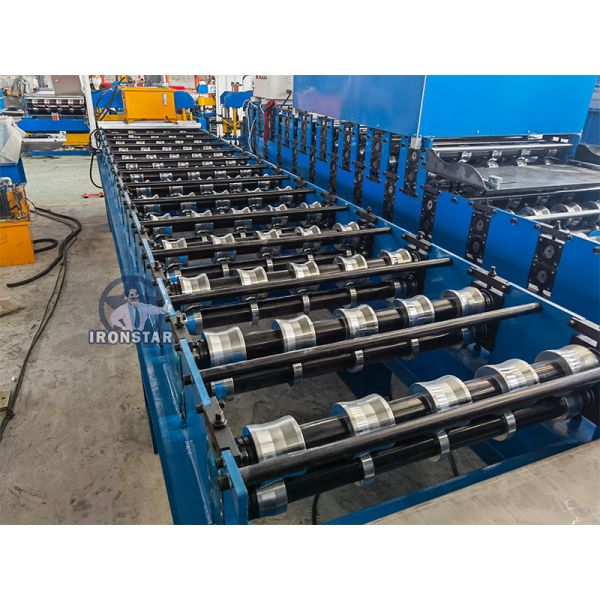

Roll forming machine

Roller material: 45# steel with 0.05mm chrome

roller surfaces polish, hard plating dealing

Polished surface and heat treatment towards molds can keep the molding plate surface smooth and not easy to be marked when it is being stamped

“Automatic 840 Roof Panel Cold Roll Forming Machine For Galvanized Steel & Color Coil 840 IBR Metal Roof Panel Roll Forming Machine Construction Material Making Machinery ”
“Automatic 840 Roof Panel Cold Roll Forming Machine For Galvanized Steel & Color Coil 840 IBR Metal Roof Panel Roll Forming Machine Construction Material Making Machinery ”
“Automatic 840 Roof Panel Cold Roll Forming Machine For Galvanized Steel & Color Coil 840 IBR Metal Roof Panel Roll Forming Machine Construction Material Making Machinery ”
“Automatic 840 Roof Panel Cold Roll Forming Machine For Galvanized Steel & Color Coil 840 IBR Metal Roof Panel Roll Forming Machine Construction Material Making Machinery ”
“Automatic 840 Roof Panel Cold Roll Forming Machine For Galvanized Steel & Color Coil 840 IBR Metal Roof Panel Roll Forming Machine Construction Material Making Machinery ”
“Automatic 840 Roof Panel Cold Roll Forming Machine For Galvanized Steel & Color Coil 840 IBR Metal Roof Panel Roll Forming Machine Construction Material Making Machinery ”

Machine cutter

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

Material of blades: Cr12, quenching treatment

“Automatic 840 Roof Panel Cold Roll Forming Machine For Galvanized Steel & Color Coil 840 IBR Metal Roof Panel Roll Forming Machine Construction Material Making Machinery ”

Feeding table

“Automatic 840 Roof Panel Cold Roll Forming Machine For Galvanized Steel & Color Coil 840 IBR Metal Roof Panel Roll Forming Machine Construction Material Making Machinery ”

Insert raw material (steel plate) through the beach to manufacture and process

It can guarantee coil go straight and the out products neat, parallel

Control box

“Automatic 840 Roof Panel Cold Roll Forming Machine For Galvanized Steel & Color Coil 840 IBR Metal Roof Panel Roll Forming Machine Construction Material Making Machinery ”

DETAL PLC control system

Target piece`s length is adjustable and digit

Two modes operate: automatic and manual type

Button press and screen touch operate, easy operate

Language: Chinese and English or as acustomer' need

Hydraulic oil pump

“Automatic 840 Roof Panel Cold Roll Forming Machine For Galvanized Steel & Color Coil 840 IBR Metal Roof Panel Roll Forming Machine Construction Material Making Machinery ”

Hydraulic oil into the hydraulic oil tank

Pump motor drives the cutter work

Motor Power: 3KW

Hydraulic oil: 46# Oil

add capacity: oil add 3/4 of box capacity

Oil pressure: 8-10 MPa

Receiving table

“Automatic 840 Roof Panel Cold Roll Forming Machine For Galvanized Steel & Color Coil 840 IBR Metal Roof Panel Roll Forming Machine Construction Material Making Machinery ”

Length: Common 2-3 m

Operate : Manual work

Used to collect the finished pieces

Support roller to transmit pieces

Easy for panel take away by forklifts

Spare parts free for customer

“Automatic 840 Roof Panel Cold Roll Forming Machine For Galvanized Steel & Color Coil 840 IBR Metal Roof Panel Roll Forming Machine Construction Material Making Machinery ”

Packing & Payment & Service

1). Packing method: Nude, seller should guarantee equipment will be moisture-proof, anti corrosive, and will not be damaged during transportation.

2). Payment Term: 30% of total contract value paid by T/T, last 70% paid by T/T after inspection by buyer in seller’s factory while before delivery.

3). Delivery Time: The seller guarantees the equipment will be ready for shipment within 40 working days after receipt of deposit from the buyer.

4). Service: We could send technician to your country to fix the machine if you need. The buyer need to pay for all the cost, including: visa, round trip tickets, accommodation, salary of USD 120 per day.

5). Warranty: 36 months During warranty, the replaceable parts are free, but the buyers need to pay for the shipping fee.

6). Package: One complete equipment needs a 20 feet container to hold.

Certificate CE & ISO9001

“Automatic 840 Roof Panel Cold Roll Forming Machine For Galvanized Steel & Color Coil 840 IBR Metal Roof Panel Roll Forming Machine Construction Material Making Machinery ”

We sell country

“Automatic 840 Roof Panel Cold Roll Forming Machine For Galvanized Steel & Color Coil 840 IBR Metal Roof Panel Roll Forming Machine Construction Material Making Machinery ”
