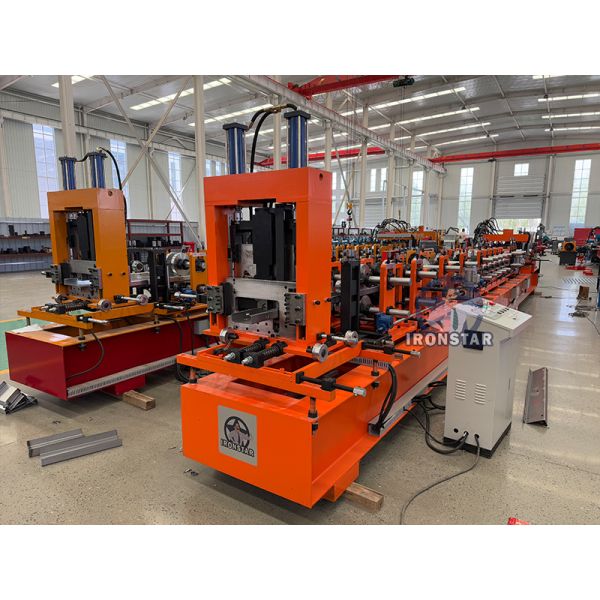

“PLC Controlled Hydraulic Fast Switch CZ Purlin Roll Forming Machine Full Automatic Galvanized Purlin Making Equipment Auto Hydraulic Adjust CZ Purlin Roll Forming Machine Quick Size Change C Z ”
“PLC Controlled Hydraulic Fast Switch CZ Purlin Roll Forming Machine Full Automatic Galvanized Purlin Making Equipment Auto Hydraulic Adjust CZ Purlin Roll Forming Machine Quick Size Change C Z ”
“PLC Controlled Hydraulic Fast Switch CZ Purlin Roll Forming Machine Full Automatic Galvanized Purlin Making Equipment Auto Hydraulic Adjust CZ Purlin Roll Forming Machine Quick Size Change C Z ”
“PLC Controlled Hydraulic Fast Switch CZ Purlin Roll Forming Machine Full Automatic Galvanized Purlin Making Equipment Auto Hydraulic Adjust CZ Purlin Roll Forming Machine Quick Size Change C Z ”
“PLC Controlled Hydraulic Fast Switch CZ Purlin Roll Forming Machine Full Automatic Galvanized Purlin Making Equipment Auto Hydraulic Adjust CZ Purlin Roll Forming Machine Quick Size Change C Z ”
“PLC Controlled Hydraulic Fast Switch CZ Purlin Roll Forming Machine Full Automatic Galvanized Purlin Making Equipment Auto Hydraulic Adjust CZ Purlin Roll Forming Machine Quick Size Change C Z ”
“PLC Controlled Hydraulic Fast Switch CZ Purlin Roll Forming Machine Full Automatic Galvanized Purlin Making Equipment Auto Hydraulic Adjust CZ Purlin Roll Forming Machine Quick Size Change C Z ”
“PLC Controlled Hydraulic Fast Switch CZ Purlin Roll Forming Machine Full Automatic Galvanized Purlin Making Equipment Auto Hydraulic Adjust CZ Purlin Roll Forming Machine Quick Size Change C Z ”
“PLC Controlled Hydraulic Fast Switch CZ Purlin Roll Forming Machine Full Automatic Galvanized Purlin Making Equipment Auto Hydraulic Adjust CZ Purlin Roll Forming Machine Quick Size Change C Z ”
“PLC Controlled Hydraulic Fast Switch CZ Purlin Roll Forming Machine Full Automatic Galvanized Purlin Making Equipment Auto Hydraulic Adjust CZ Purlin Roll Forming Machine Quick Size Change C Z ”
Specifications
Price :
As Drawing
Export port :
Tianjin port
Model Number :
Customized
Payment Terms :
T/T, L/C, D/A, D/P
Warranty :
3 years
Container :
40 feet container
Certification :
CE
MOQ :
1 set
Delivery Time :
30-50 days
Working days :
60 working days
Supply Ability :
10 Sets/Month
Raw material :
Galvanized steel
Place of Origin :
China
Brand Name :
IRONSTAR
Packaging Details :
Tarpaulins and wooden cases
Description

OEM 1-3mm Steel Sheet 80-300mm Automatic Size Changeable C Purlin Making Machine For Indonesia

Automatic C purlin roll forming machine popular sell in many countries, common C purlin rolling thickness from 1-3 mm, material use Galvanized steel material

We sell lots of such Automatic C purlin roll forming machine to Philippines, India, Thailand, Russia, Algeria, Qatar, Morocco, Saudi Arabic, Oman etc, Size can customize can your need size

Automatic C purlin roll forming machine | 80-300mm automatic size changeable C purlin making machine

Work flow of Automatic C purlin roll forming machine

Decoiler-roll forming machine-PLC control box-hydraulic cutter-Run out table

“PLC Controlled Hydraulic Fast Switch CZ Purlin Roll Forming Machine Full Automatic Galvanized Purlin Making Equipment Auto Hydraulic Adjust CZ Purlin Roll Forming Machine Quick Size Change C Z ”

Diameter of Automatic C purlin roll forming machine

NO

Type

 Specification

1

 Raw material Type Galvanized steel
Feeding width As customer' drawing
Thickness 1-3 mm

2

 Decoiler Operation Manual
Weight apacity 3 Tons

3

 Main body Roller station 18 rows
Diameter of shaft 75 mm
Shaft material 45# with 0.05mm chrome
Roller material GCR 15
Frame 400-H beam
Frame thickness 20 mm
Machine size About 9.5*1.5*2 m
Machine weight About 9.5 tons
Machine color As customer need
Operation Hydraulic automatic
Working speed 10-30 m/min hydraulic motor
4 Cutter Hardness 50-65 HRC
Cutting tolerance ± 1mm
Material Cr 12
Operate Hydraulic cutting
5 Power Driving way Chain 2 inch
Main motor 22 KW
Pump motor for cutter 5.5 KW
Voltage 380V/50HZ, 3 phase or ass customer' request

6

 Control box Electric box PLC control system, inventer
Screen Touchable screen
PLC brand Delta made in Taiwan
Inverter brand Delta made in Taiwan or SAJ
Language Chinese and English or as customer' request
7 Stacker Operation Manual
Length 2-3 m

Product drawing

“PLC Controlled Hydraulic Fast Switch CZ Purlin Roll Forming Machine Full Automatic Galvanized Purlin Making Equipment Auto Hydraulic Adjust CZ Purlin Roll Forming Machine Quick Size Change C Z ”
“PLC Controlled Hydraulic Fast Switch CZ Purlin Roll Forming Machine Full Automatic Galvanized Purlin Making Equipment Auto Hydraulic Adjust CZ Purlin Roll Forming Machine Quick Size Change C Z ”

Product use

“PLC Controlled Hydraulic Fast Switch CZ Purlin Roll Forming Machine Full Automatic Galvanized Purlin Making Equipment Auto Hydraulic Adjust CZ Purlin Roll Forming Machine Quick Size Change C Z ”

Feeder decoiler

“PLC Controlled Hydraulic Fast Switch CZ Purlin Roll Forming Machine Full Automatic Galvanized Purlin Making Equipment Auto Hydraulic Adjust CZ Purlin Roll Forming Machine Quick Size Change C Z ”

It is used to stand the steel coil and uncoil, keep them work stably

Loading capacity: 3 tons

Coil inner size: 470-530 mm

Work type: Manual operation

Color: As customer' request

Roll forming machine

Roller material: 45# steel with 0.05mm chrome

roller surfaces polish, hard plating dealing

Polished surface and heat treatment towards molds can keep the molding plate surface smooth and not easy to be marked when it is being stamped

“PLC Controlled Hydraulic Fast Switch CZ Purlin Roll Forming Machine Full Automatic Galvanized Purlin Making Equipment Auto Hydraulic Adjust CZ Purlin Roll Forming Machine Quick Size Change C Z ”
“PLC Controlled Hydraulic Fast Switch CZ Purlin Roll Forming Machine Full Automatic Galvanized Purlin Making Equipment Auto Hydraulic Adjust CZ Purlin Roll Forming Machine Quick Size Change C Z ”
“PLC Controlled Hydraulic Fast Switch CZ Purlin Roll Forming Machine Full Automatic Galvanized Purlin Making Equipment Auto Hydraulic Adjust CZ Purlin Roll Forming Machine Quick Size Change C Z ”
“PLC Controlled Hydraulic Fast Switch CZ Purlin Roll Forming Machine Full Automatic Galvanized Purlin Making Equipment Auto Hydraulic Adjust CZ Purlin Roll Forming Machine Quick Size Change C Z ”

Machine cutter

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

Material of blades: Cr12, quenching treatment

“PLC Controlled Hydraulic Fast Switch CZ Purlin Roll Forming Machine Full Automatic Galvanized Purlin Making Equipment Auto Hydraulic Adjust CZ Purlin Roll Forming Machine Quick Size Change C Z ”

Feeding table

Insert raw material (steel plate) through the beach to manufacture and process

It can guarantee coil go straight and the out products neat, parallel

“PLC Controlled Hydraulic Fast Switch CZ Purlin Roll Forming Machine Full Automatic Galvanized Purlin Making Equipment Auto Hydraulic Adjust CZ Purlin Roll Forming Machine Quick Size Change C Z ”

Control box

“PLC Controlled Hydraulic Fast Switch CZ Purlin Roll Forming Machine Full Automatic Galvanized Purlin Making Equipment Auto Hydraulic Adjust CZ Purlin Roll Forming Machine Quick Size Change C Z ”

DETAL PLC control system

Target piece`s length is adjustable and digit

Two modes operate: automatic and manual type

Button press and screen touch operate, easy operate

Language: Chinese and English or as acustomer' need

Hydraulic oil pump

“PLC Controlled Hydraulic Fast Switch CZ Purlin Roll Forming Machine Full Automatic Galvanized Purlin Making Equipment Auto Hydraulic Adjust CZ Purlin Roll Forming Machine Quick Size Change C Z ”

Hydraulic oil into the hydraulic oil tank

Pump motor drives the cutter work

Motor Power: 5.5 KW

Hydraulic oil: 46# Oil

add capacity: oil add 3/4 of box capacity

Oil pressure: 8-10 MPa

Receiving table

“PLC Controlled Hydraulic Fast Switch CZ Purlin Roll Forming Machine Full Automatic Galvanized Purlin Making Equipment Auto Hydraulic Adjust CZ Purlin Roll Forming Machine Quick Size Change C Z ”

Length: Common 2-3 m

Operate : Manual work

Used to collect the finished pieces

Support roller to transmit pieces

Easy for panel take away by forklifts

Spare parts free for customer

“PLC Controlled Hydraulic Fast Switch CZ Purlin Roll Forming Machine Full Automatic Galvanized Purlin Making Equipment Auto Hydraulic Adjust CZ Purlin Roll Forming Machine Quick Size Change C Z ”

Packing & Payment & Service

1). Packing method: Nude, seller should guarantee equipment will be moisture-proof, anti corrosive, and will not be damaged during transportation.

2). Payment Term: 30% of total contract value paid by T/T, last 70% paid by T/T after inspection by buyer in seller’s factory while before delivery.

3). Delivery Time: The seller guarantees the equipment will be ready for shipment within 60 working days after receipt of deposit from the buyer.

4). Service: We could send technician to your country to fix the machine if you need. The buyer need to pay for all the cost, including: visa, round trip tickets, accommodation, salary of USD 120 per day.

5). Warranty: 36 months During warranty, the replaceable parts are free, but the buyers need to pay for the shipping fee.

6). Package: One complete equipment needs a 40 feet container to hold.

Certificate CE & ISO9001
