Specifications
Payment Terms :
D/A, D/P, L/C, T/T, Western Union
Price :
As Drawing
Certification :
CE
Place of Origin :
CHINA
Brand Name :
IRONSTAR
Model Number :
01
Supply Ability :
10sets/month
Packaging Details :
Tarpaulins and wooden cases
MOQ :
1
Delivery Time :
30-50days
Description

Wall standing seam snap lock roll forming machine in CANADA

Short Description:

Standing seam roll forming machine popular sell in many countries, common Standing seam panel sheet rolling thickness from 0.3-0.6 mm, material use PPGI (Pre-Painted Galvanized Steel ) material

We sell lots of Standing seam roll forming machine to Canada, America, Slovakia, Peru, Chile, etc. We can assure finished products overlap accuracy control in ±1 mm. Size can customize can your need size

Cladding panel roll forming machine | snap lock roll forming machine | Standing seam roll forming machine

  • Raw material:PPGI
  • Warranty:3 years
  • Export port:Tianjin port
  • Payment Terms:T/T, L/C, D/A, D/P
  • Container:20 feet container
  • Working days:50 working days

Diameter of Snap lock roll forming machine

NO Type Specification
1 Raw material Type PPGI
Feeding width As customer' drawing
Thickness 0.3-0.6 mm
2 Decoiler Operation Manual
Weight apacity 5 Tons
3 Main body Roller station 21 rows
Diameter of shaft 70 mm
Shaft material 45# with 0.05mm chrome
Roller material 45# with 0.05mm chrome
Frame 350mm H-beam
Frame thickness 20 mm
Machine size About 7.5*1*1.5 m
Machine weight About 5.3 tons
Machine color As customer need
Operation Hydraulic automatic
Working speed Common speed 8-20 m/min
4 Cutter Hardness 50-65 HRC
Cutting tolerance ± 1mm
Material Cr 12
Operate Hydraulic cutting
5 Power Driving way Chain 1 inch
Main motor 5.5 KW
Pump motor for cutter 3 KW
Voltage 380V/50HZ, 3 phase or as customer' request
6 Control box Electric box PLC control system, inventer
Screen Touchable screen
PLC brand Delta made in Taiwan
Inverter brand Delta made in Taiwan or SAJ
Language Chinese and English or as customer' request
7 Stacker Operation Manual
Length 2-3 m

Snap lock panel product show

“Canada Popular North America Standard Snap Lock Standing Seam Roll Forming Machine Portable KR18 KR24 Self Lock Metal Roof Wall Panel Cold Roll Form Equipment With PLC Control”

“Canada Popular North America Standard Snap Lock Standing Seam Roll Forming Machine Portable KR18 KR24 Self Lock Metal Roof Wall Panel Cold Roll Form Equipment With PLC Control”

“Canada Popular North America Standard Snap Lock Standing Seam Roll Forming Machine Portable KR18 KR24 Self Lock Metal Roof Wall Panel Cold Roll Form Equipment With PLC Control”

“Canada Popular North America Standard Snap Lock Standing Seam Roll Forming Machine Portable KR18 KR24 Self Lock Metal Roof Wall Panel Cold Roll Form Equipment With PLC Control”

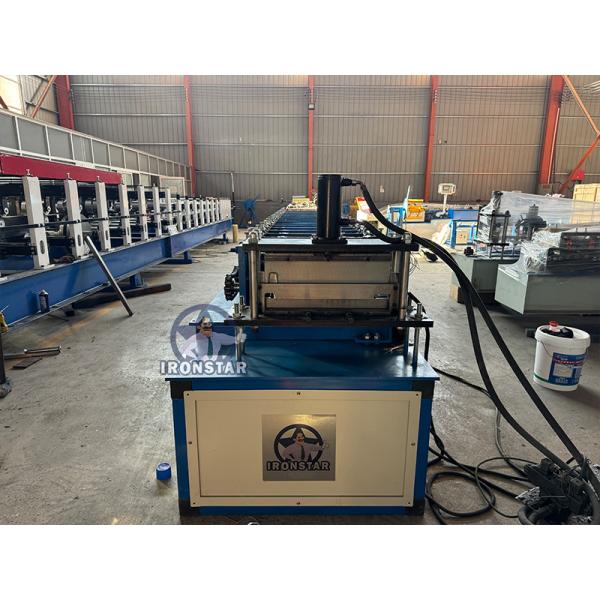

Snap lock roll forming machine

“Canada Popular North America Standard Snap Lock Standing Seam Roll Forming Machine Portable KR18 KR24 Self Lock Metal Roof Wall Panel Cold Roll Form Equipment With PLC Control”

“Canada Popular North America Standard Snap Lock Standing Seam Roll Forming Machine Portable KR18 KR24 Self Lock Metal Roof Wall Panel Cold Roll Form Equipment With PLC Control”

“Canada Popular North America Standard Snap Lock Standing Seam Roll Forming Machine Portable KR18 KR24 Self Lock Metal Roof Wall Panel Cold Roll Form Equipment With PLC Control”

“Canada Popular North America Standard Snap Lock Standing Seam Roll Forming Machine Portable KR18 KR24 Self Lock Metal Roof Wall Panel Cold Roll Form Equipment With PLC Control”

“Canada Popular North America Standard Snap Lock Standing Seam Roll Forming Machine Portable KR18 KR24 Self Lock Metal Roof Wall Panel Cold Roll Form Equipment With PLC Control”

“Canada Popular North America Standard Snap Lock Standing Seam Roll Forming Machine Portable KR18 KR24 Self Lock Metal Roof Wall Panel Cold Roll Form Equipment With PLC Control”

“Canada Popular North America Standard Snap Lock Standing Seam Roll Forming Machine Portable KR18 KR24 Self Lock Metal Roof Wall Panel Cold Roll Form Equipment With PLC Control”

“Canada Popular North America Standard Snap Lock Standing Seam Roll Forming Machine Portable KR18 KR24 Self Lock Metal Roof Wall Panel Cold Roll Form Equipment With PLC Control”

Packing & Payment & Service

1). Packing method: Nude, seller should guarantee equipment will be moisture-proof, anti corrosive, and will not be damaged during transportation.

2). Payment Term: 30% of total contract value paid by T/T, last 70% paid by T/T after inspection by buyer in seller’s factory while before delivery.

3). Delivery Time: The seller guarantees the equipment will be ready for shipment within 40 working days after receipt of deposit from the buyer.

4). Service: We could send technician to your country to fix the machine if you need. The buyer need to pay for all the cost, including: visa, round trip tickets, accommodation, salary of USD 120 per day.

5). Warranty: 36 months During warranty, the replaceable parts are free, but the buyers need to pay for the shipping fee.

6). Package: One complete equipment needs a 20 feet container to hold.
