Specifications
Model Number :
Customized
Supply Ability :
10 Sets/Month
Raw material :
Galvanized steel
Payment Terms :
T/T, L/C
Warranty :
3 years
Container :
20 feet container
Price :
As Drawing
Export port :
Tianjin port
MOQ :
1 set
Delivery Time :
30-50 days
Working days :
40 working days
Place of Origin :
China
Packaging Details :
Tarpaulins and wooden cases
Certification :
CE
Brand Name :
IRONSTAR
Description

C channel roll forming machine popular sell in many countries, common thickness between 0.3-0.6 mm, Common speed 10-20 m/min, with servo motor speed can max reach to 30-50 m/min, we sell lots of such machine to Iraq, Egypt, UAE, Chile, Zambia, etc

C stud roll forming machine | Cd roll forming machine | C channel roll forming machine

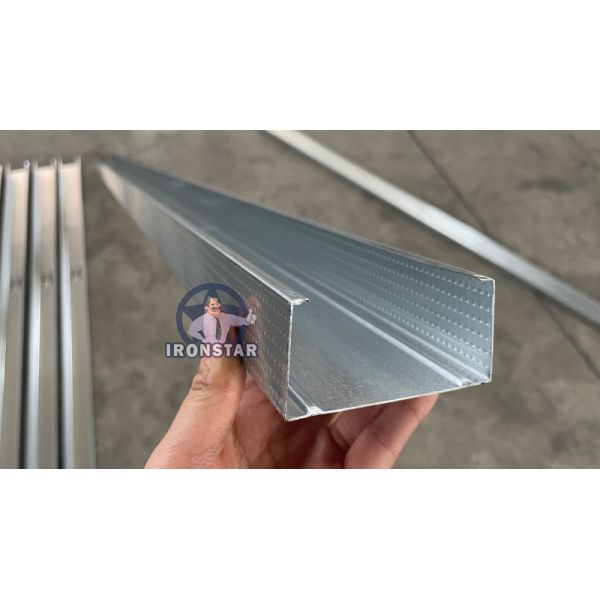

Product show - 69mm C channel product

“China Factory 49mm 69mm Two Sizes 2 In 1 Double Rows Stud Roll Forming Machine Servo Driving Drywall Profile Forming Machine”
“China Factory 49mm 69mm Two Sizes 2 In 1 Double Rows Stud Roll Forming Machine Servo Driving Drywall Profile Forming Machine”

Video of C channel product show

Work video of C channel roll forming machine

Product show - 49mm C channel product

“China Factory 49mm 69mm Two Sizes 2 In 1 Double Rows Stud Roll Forming Machine Servo Driving Drywall Profile Forming Machine”
“China Factory 49mm 69mm Two Sizes 2 In 1 Double Rows Stud Roll Forming Machine Servo Driving Drywall Profile Forming Machine”

Work video of C channel roll forming machine

Work flow of C channel roll forming machine

Decoiler-roll forming machine-PLC control box-hydraulic cutter-Run out table

“China Factory 49mm 69mm Two Sizes 2 In 1 Double Rows Stud Roll Forming Machine Servo Driving Drywall Profile Forming Machine”

Diameter of C channel roll forming machine

NO

Type

 Specification

1

 Raw material Type Galvanized steel
Feeding width As customer' drawing
Thickness 0.85 mm

2

 Decoiler Operation Manual
Weight apacity 3 Tons

3

 Main body Roller station 12 rows
Diameter of shaft 55 mm
Shaft material 45# with 0.05mm chrome
Roller material 45# with 0.05mm chrome
Frame Steel plate welding
Frame thickness 16 mm
Machine size About 5.5*0.8*1 m
Machine weight About 1.8 tons
Machine color As customer need
Operation Hydraulic automatic
Working speed Common speed 30-50 m/min
4 Cutter Hardness 50-65 HRC
Cutting tolerance ± 1mm
Material Cr 12
Operate Hydraulic cutting
5 Power Driving way Chain 1 inch
Main motor 4 KW
Pump motor for cutter 4 KW
Voltage 380V/50HZ, 3 phase or ass customer' request

6

 Control box Electric box PLC control system, inventer
Screen Touchable screen
PLC brand Delta made in Taiwan
Inverter brand Delta made in Taiwan or SAJ
Language Chinese and English or as customer' request
7 Stacker Operation Manual
Length 2-3 m

Product show

“China Factory 49mm 69mm Two Sizes 2 In 1 Double Rows Stud Roll Forming Machine Servo Driving Drywall Profile Forming Machine”

Feeder decoiler

“China Factory 49mm 69mm Two Sizes 2 In 1 Double Rows Stud Roll Forming Machine Servo Driving Drywall Profile Forming Machine”

It is used to stand the steel coil and uncoil, keep them work stably

Loading capacity: 3 tons

Coil inner size: 470-530 mm

Work type: Manual operation

Color: As customer' request

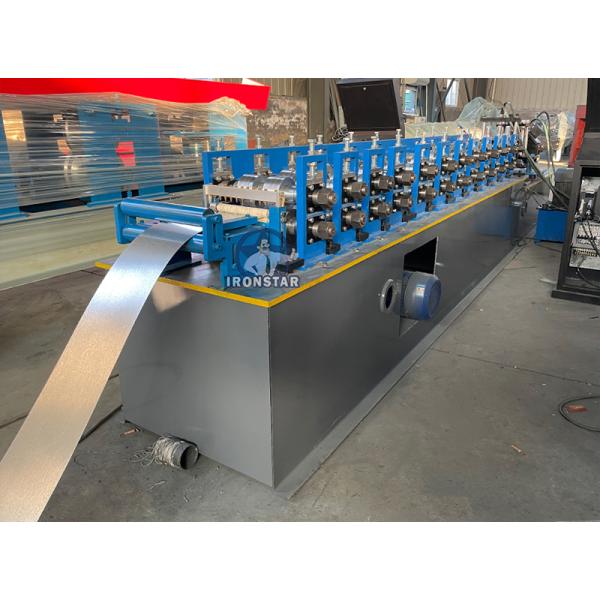

Roll forming machine

Roller material: 45# steel with 0.05mm chrome

roller surfaces polish, hard plating dealing

Polished surface and heat treatment towards molds can keep the molding plate surface smooth and not easy to be marked when it is being stamped

“China Factory 49mm 69mm Two Sizes 2 In 1 Double Rows Stud Roll Forming Machine Servo Driving Drywall Profile Forming Machine”
“China Factory 49mm 69mm Two Sizes 2 In 1 Double Rows Stud Roll Forming Machine Servo Driving Drywall Profile Forming Machine”
“China Factory 49mm 69mm Two Sizes 2 In 1 Double Rows Stud Roll Forming Machine Servo Driving Drywall Profile Forming Machine”
“China Factory 49mm 69mm Two Sizes 2 In 1 Double Rows Stud Roll Forming Machine Servo Driving Drywall Profile Forming Machine”
“China Factory 49mm 69mm Two Sizes 2 In 1 Double Rows Stud Roll Forming Machine Servo Driving Drywall Profile Forming Machine”
“China Factory 49mm 69mm Two Sizes 2 In 1 Double Rows Stud Roll Forming Machine Servo Driving Drywall Profile Forming Machine”
“China Factory 49mm 69mm Two Sizes 2 In 1 Double Rows Stud Roll Forming Machine Servo Driving Drywall Profile Forming Machine”

Machine cutter

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

Material of blades: Cr12, quenching treatment

“China Factory 49mm 69mm Two Sizes 2 In 1 Double Rows Stud Roll Forming Machine Servo Driving Drywall Profile Forming Machine”

How to change size in one machine?

Feeding table

“China Factory 49mm 69mm Two Sizes 2 In 1 Double Rows Stud Roll Forming Machine Servo Driving Drywall Profile Forming Machine”

Insert raw material (steel plate) through the beach to manufacture and process

It can guarantee coil go straight and the out products neat, parallel

Emboss roller

“China Factory 49mm 69mm Two Sizes 2 In 1 Double Rows Stud Roll Forming Machine Servo Driving Drywall Profile Forming Machine”

Emboss roller embossing spots on the product

It can custom emboss rollers as customer need' flower

Punching holes on product

Puncher mould located on the machine before cutter

It can punch holes as customer' need, common customer choose H hole or Round hole

Hole need punch on flat surface, common in different product, it local position not same

“China Factory 49mm 69mm Two Sizes 2 In 1 Double Rows Stud Roll Forming Machine Servo Driving Drywall Profile Forming Machine”
“China Factory 49mm 69mm Two Sizes 2 In 1 Double Rows Stud Roll Forming Machine Servo Driving Drywall Profile Forming Machine”
“China Factory 49mm 69mm Two Sizes 2 In 1 Double Rows Stud Roll Forming Machine Servo Driving Drywall Profile Forming Machine”
“China Factory 49mm 69mm Two Sizes 2 In 1 Double Rows Stud Roll Forming Machine Servo Driving Drywall Profile Forming Machine”

Punching logo on product

Puncher mould located on the machine before cutter

It can punch logo as customer' need, Logo can be digital number or photo

Logo need punch on flat surface, common in different product, it local position not same

“China Factory 49mm 69mm Two Sizes 2 In 1 Double Rows Stud Roll Forming Machine Servo Driving Drywall Profile Forming Machine”
“China Factory 49mm 69mm Two Sizes 2 In 1 Double Rows Stud Roll Forming Machine Servo Driving Drywall Profile Forming Machine”

Control box

“China Factory 49mm 69mm Two Sizes 2 In 1 Double Rows Stud Roll Forming Machine Servo Driving Drywall Profile Forming Machine”

DETAL PLC control system

Target piece`s length is adjustable and digit

Two modes operate: automatic and manual type

Button press and screen touch operate, easy operate

Language: Chinese and English or as acustomer' need

Hydraulic oil pump

“China Factory 49mm 69mm Two Sizes 2 In 1 Double Rows Stud Roll Forming Machine Servo Driving Drywall Profile Forming Machine”

Hydraulic oil into the hydraulic oil tank

Pump motor drives the cutter work

Motor Power: 3KW

Hydraulic oil: 46# Oil

add capacity: oil add 3/4 of box capacity

Oil pressure: 8-10 MPa

Receiving table

“China Factory 49mm 69mm Two Sizes 2 In 1 Double Rows Stud Roll Forming Machine Servo Driving Drywall Profile Forming Machine”

Length: Common 2-3 m

Operate : Manual work

Used to collect the finished pieces

Support roller to transmit pieces

Easy for panel take away by forklifts

Spare parts free for customer

“China Factory 49mm 69mm Two Sizes 2 In 1 Double Rows Stud Roll Forming Machine Servo Driving Drywall Profile Forming Machine”

Packing & Payment & Service

1). Packing method: Nude, seller should guarantee equipment will be moisture-proof, anti corrosive, and will not be damaged during transportation.

2). Payment Term: 30% of total contract value paid by T/T, last 70% paid by T/T after inspection by buyer in seller’s factory while before delivery.

3). Delivery Time: The seller guarantees the equipment will be ready for shipment within 40 working days after receipt of deposit from the buyer.

4). Service: We could send technician to your country to fix the machine if you need. The buyer need to pay for all the cost, including: visa, round trip tickets, accommodation, salary of USD 120 per day.

5). Warranty: 36 months During warranty, the replaceable parts are free, but the buyers need to pay for the shipping fee.

6). Package: One complete equipment needs a 20 feet container to hold.

Certificate CE & ISO9001

“China Factory 49mm 69mm Two Sizes 2 In 1 Double Rows Stud Roll Forming Machine Servo Driving Drywall Profile Forming Machine”

We sell country
