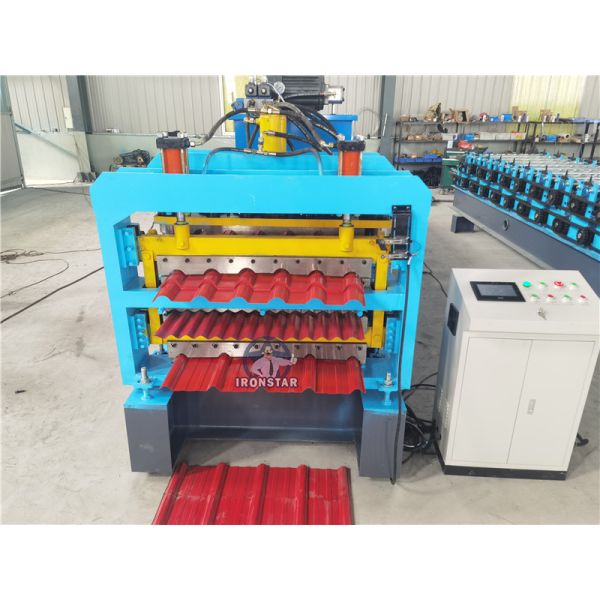

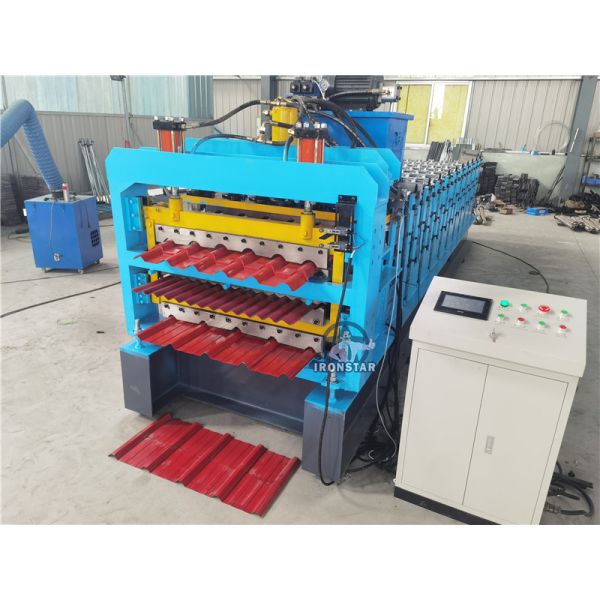

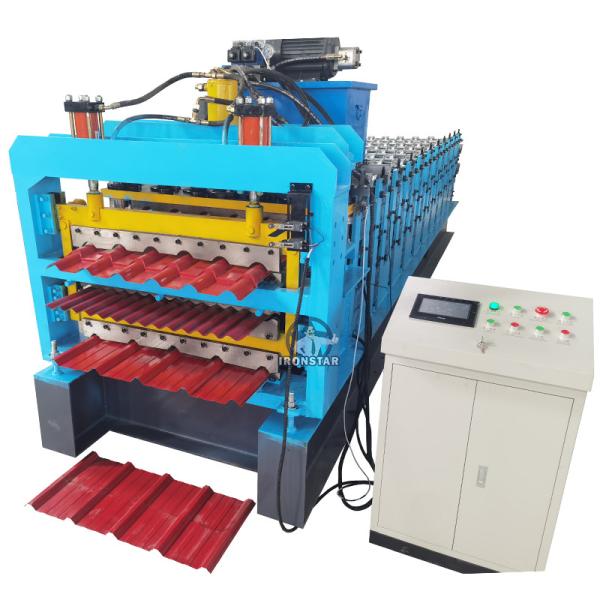

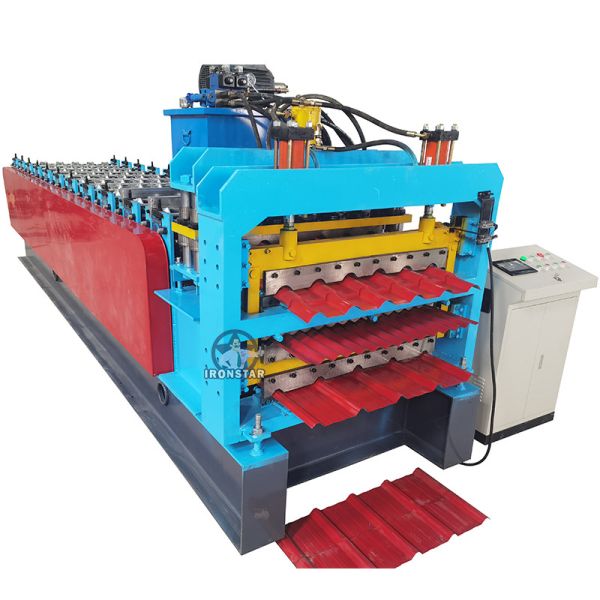

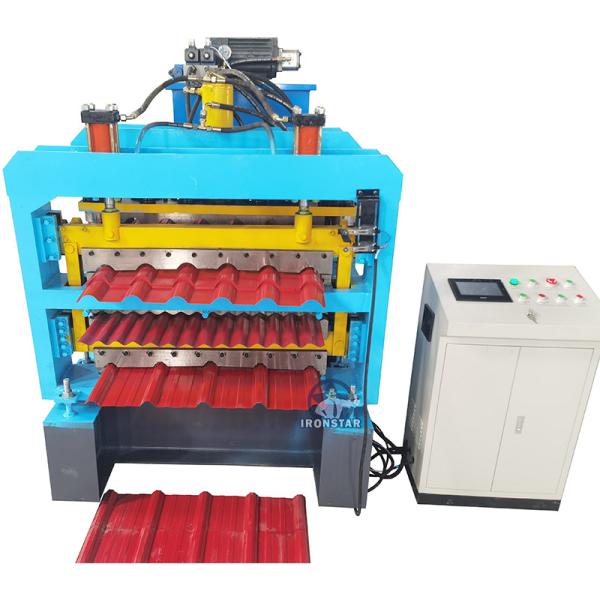

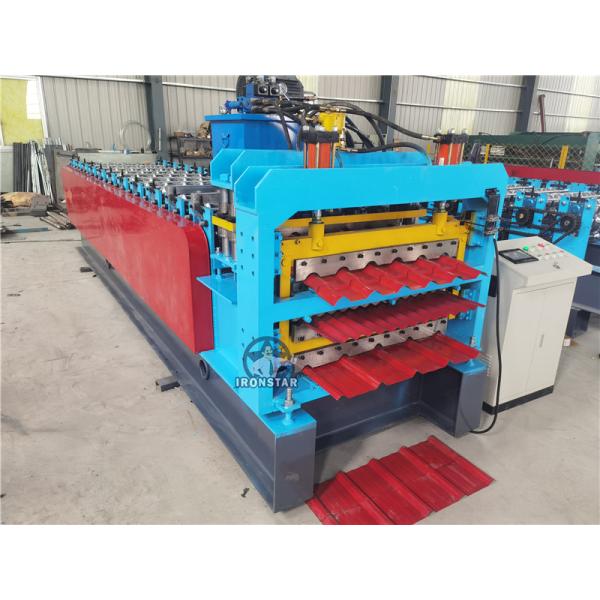

OEM Customized 0.3-0.8mm Metal Sheet Three Layers Roll Forming Machine For Brazil

Three layer roll forming machine popular sell in many countries, common roofing sheet rolling thickness from 0.3-0.6 mm, material use PPGI (Pre-Painted Galvanized Steel ) material

We sell lots of three layer roll forming machine to Guyana, South Africa, Tanzania, Nigeria, India etc. We can assure finished products overlap accuracy control in ±1 mm. Size can customize can your need size

Three layer roll forming machine | three deck machine | 3 layer roll forming machine

Work flow of three layer roll forming machine

Decoiler-roll forming machine-PLC control box-hydraulic cutter-Run out table

“Automatic Three Layer Roll Forming Machine for Roof and Wall Corrugated Sheet PLC Control Glazed Tile Color Steel Three Layer Machine”

Diameter of three layer roll forming machine

NO

Type

 Specification

1

 Raw material Type PPGI
Feeding width As customer' drawing
Thickness 0.3-0.6 mm

2

 Decoiler Operation Manual
Weight apacity 5 Tons

3

 Main body Roller station 12-15 rows
Diameter of shaft 70 mm
Shaft material 45# with 0.05mm chrome
Roller material 45# with 0.05mm chrome
Frame 360mm C-beam
Frame thickness 16 mm
Machine size About 6.8*1*1.5 m
Machine weight About 5.5 tons
Machine color As customer need
Operation Hydraulic automatic
Working speed Common speed 8-20 m/min
4 Cutter Hardness 50-65 HRC
Cutting tolerance ± 1mm
Material Cr 12
Operate Hydraulic cutting
5 Power Driving way Chain 1 inch
Main motor 5.5 KW
Pump motor for cutter 7.5 KW
Voltage 380V/50HZ, 3 phase or ass customer' request

6

 Control box Electric box PLC control system, inventer
Screen Touchable screen
PLC brand Delta made in Taiwan
Inverter brand Delta made in Taiwan or SAJ
Language Chinese and English or as customer' request
7 Stacker Operation Manual
Length 2-3 m

Feeder decoiler

“Automatic Three Layer Roll Forming Machine for Roof and Wall Corrugated Sheet PLC Control Glazed Tile Color Steel Three Layer Machine”

It is used to stand the steel coil and uncoil, keep them work stably

Loading capacity: 5 tons

Coil inner size: 470-530 mm

Work type: Manual operation

Color: As customer' request

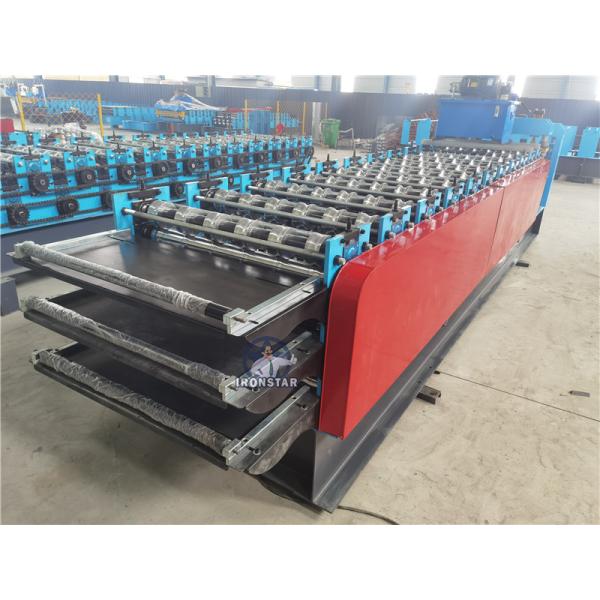

Roll forming machine

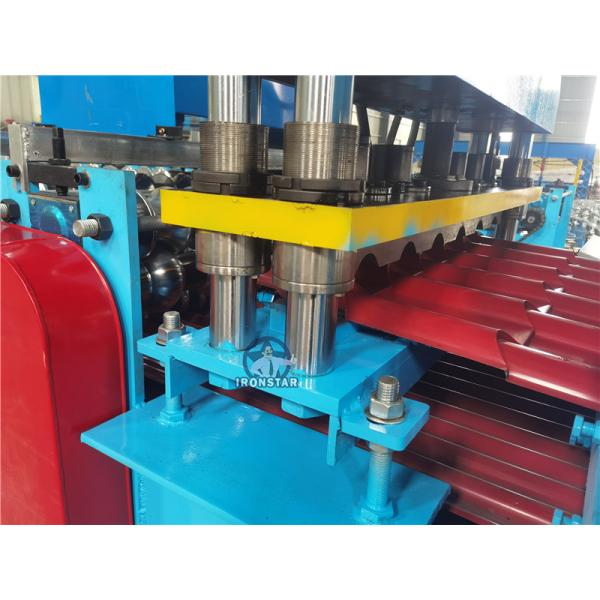

Roller material: 45# steel with 0.05mm chrome

roller surfaces polish, hard plating dealing

Polished surface and heat treatment towards molds can keep the molding plate surface smooth and not easy to be marked when it is being stamped

“Automatic Three Layer Roll Forming Machine for Roof and Wall Corrugated Sheet PLC Control Glazed Tile Color Steel Three Layer Machine”
“Automatic Three Layer Roll Forming Machine for Roof and Wall Corrugated Sheet PLC Control Glazed Tile Color Steel Three Layer Machine”
“Automatic Three Layer Roll Forming Machine for Roof and Wall Corrugated Sheet PLC Control Glazed Tile Color Steel Three Layer Machine”
“Automatic Three Layer Roll Forming Machine for Roof and Wall Corrugated Sheet PLC Control Glazed Tile Color Steel Three Layer Machine”
“Automatic Three Layer Roll Forming Machine for Roof and Wall Corrugated Sheet PLC Control Glazed Tile Color Steel Three Layer Machine”

Machine cutter

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

Material of blades: Cr12, quenching treatment

“Automatic Three Layer Roll Forming Machine for Roof and Wall Corrugated Sheet PLC Control Glazed Tile Color Steel Three Layer Machine”

Feeding table

“Automatic Three Layer Roll Forming Machine for Roof and Wall Corrugated Sheet PLC Control Glazed Tile Color Steel Three Layer Machine”

Insert raw material (steel plate) through the beach to manufacture and process

It can guarantee coil go straight and the out products neat, parallel

Control box

“Automatic Three Layer Roll Forming Machine for Roof and Wall Corrugated Sheet PLC Control Glazed Tile Color Steel Three Layer Machine”

DETAL PLC control system

Target piece`s length is adjustable and digit

Two modes operate: automatic and manual type

Button press and screen touch operate, easy operate

Language: Chinese and English or as acustomer' need

Hydraulic oil pump

“Automatic Three Layer Roll Forming Machine for Roof and Wall Corrugated Sheet PLC Control Glazed Tile Color Steel Three Layer Machine”

Hydraulic oil into the hydraulic oil tank

Pump motor drives the cutter work

Motor Power: 3KW

Hydraulic oil: 46# Oil

add capacity: oil add 3/4 of box capacity

Oil pressure: 8-10 MPa

Receiving table

Length: Common 2-3 m

Operate : Manual work

Used to collect the finished pieces

Support roller to transmit pieces

Easy for panel take away by forklifts

“Automatic Three Layer Roll Forming Machine for Roof and Wall Corrugated Sheet PLC Control Glazed Tile Color Steel Three Layer Machine”

Spare parts free for customer
