Specifications
MOQ :
1 set
Delivery Time :
30-50 days
Container :
40 feet container
Payment Terms :
T/T, L/C, D/A, D/P
Raw material :
PPGI (Pre-Painted Galvanized Steel ) material
Export port :
Tianjin port
Model Number :
Customized
Working days :
40 working days
Rolling thinckness :
0.3-0.8mm
Price :
As Drawing
Warranty :
3 years
Certification :
CE
Use :
gutter
Warranty of core components: :
3 years
After-sales Service Provided :
Engineers available to service machinery overseas
Supply Ability :
10 Sets/Month
Name :
K Gutter Roll Forming Machine
Packaging Details :
Tarpaulins and wooden cases
Condition :
New
Brand Name :
IRONSTAR
Customized :
Yes
Place of Origin :
China
Voltage :
380V 50Hz 3phases
Description

Alumium And Galvanized Steel Sheet Water K Gutter Roll Forming Machine

Description

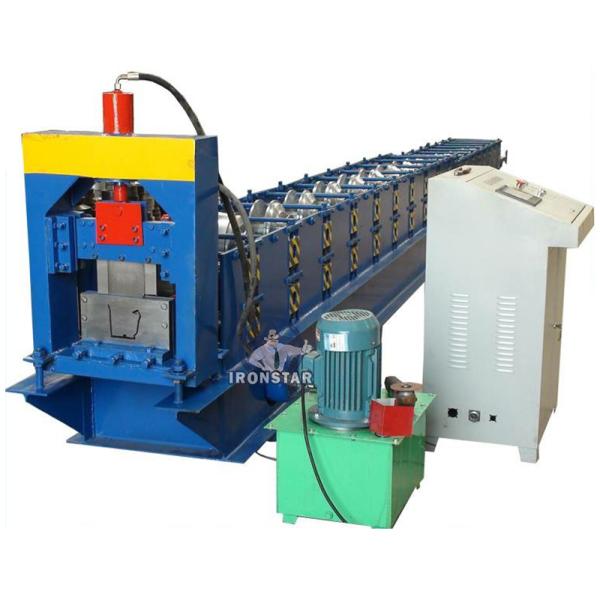

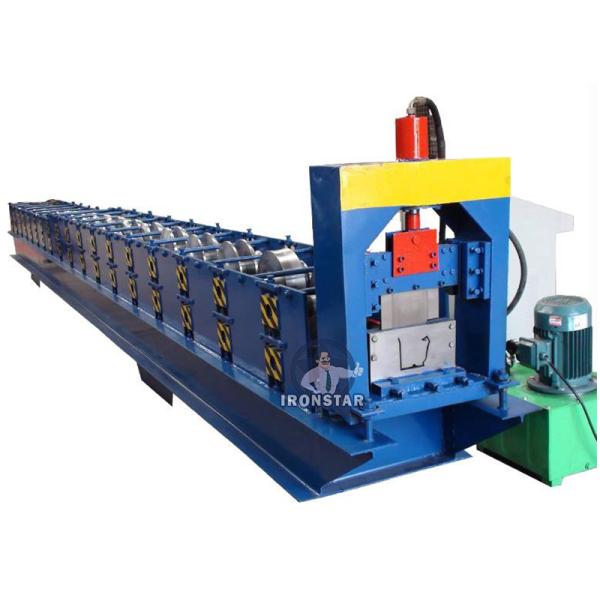

K Gutter Roll Forming Machine

K gutter roll forming machine is an automatic equipment specialized in producing k gutter. The equipment forming color steel rolls step by step. You only need to input the size into the equipment.
The term K-type gutter is derived from the profile of this type of gutter when viewed from the side. The outer shape of the gutter should (very vaguely) represent the letter K, not a perfectly round semi-circular gutter.
K-shaped gutters are the best choice. They are the most common choice for homeowners and are available in various styles. Plus, these gutters are easy to install and durable.

Water gutter roll forming machine popular sell in many countries, common Water gutter rolling thickness from 0.3-0.6 mm, material use PPGI (Pre-Painted Galvanized Steel ) material

Water gutter roll forming machine | Gutter roll forming machine | downpipe roll forming machine

Work flow of K gutter roll forming machine

Decoiler-roll forming machine-PLC control box-hydraulic cutter-Run out table

“Ironstar Aluminium Galvanized Steel Sheet K Gutter Roll Forming Machine K Style Gutter Making Machine”

Parameter of K gutter roll forming machine

NO

Type

 Specification

1

 Raw material Type PPGI
Feeding width As customer' drawing
Thickness 0.3-0.6 mm

2

 Decoiler Operation Manual
Weight apacity 3 Tons

3

 Main body Roller station 18 rows
Diameter of shaft 70 mm
Shaft material 45# with 0.05mm chrome
Roller material 45# with 0.05mm chrome
Frame Steel plate welding
Frame thickness 16 mm
Machine size About 7*0.8*1 m
Machine weight About 3.8 tons
Machine color As customer need
Operation Hydraulic automatic
Working speed Common speed 8-20 m/min
4 Cutter Hardness 50-65 HRC
Cutting tolerance ± 1mm
Material Cr 12
Operate Hydraulic cutting
5 Power Driving way Chain 1 inch
Main motor 5.5 KW
Pump motor for cutter 4 KW
Voltage 380V/50HZ, 3 phase or ass customer' request

6

 Control box Electric box PLC control system, inventer
Screen Touchable screen
PLC brand Delta made in Taiwan
Inverter brand Delta made in Taiwan or SAJ
Language Chinese and English or as customer' request
7 Stacker Operation Manual
Length 2-3 m

Details of K gutter roll forming machine

Water gutter install

“Ironstar Aluminium Galvanized Steel Sheet K Gutter Roll Forming Machine K Style Gutter Making Machine”

Feeder decoiler

“Ironstar Aluminium Galvanized Steel Sheet K Gutter Roll Forming Machine K Style Gutter Making Machine”

It is used to stand the steel coil and uncoil, keep them work stably

Loading capacity: 3 tons

Coil inner size: 470-530 mm

Work type: Manual operation

Color: As customer' request

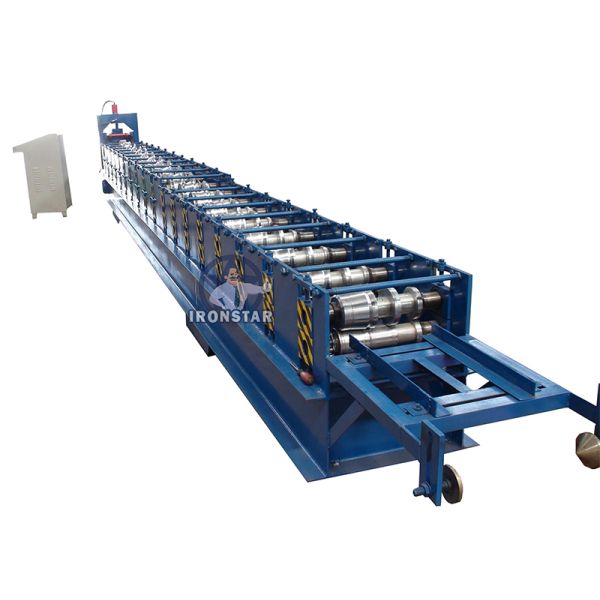

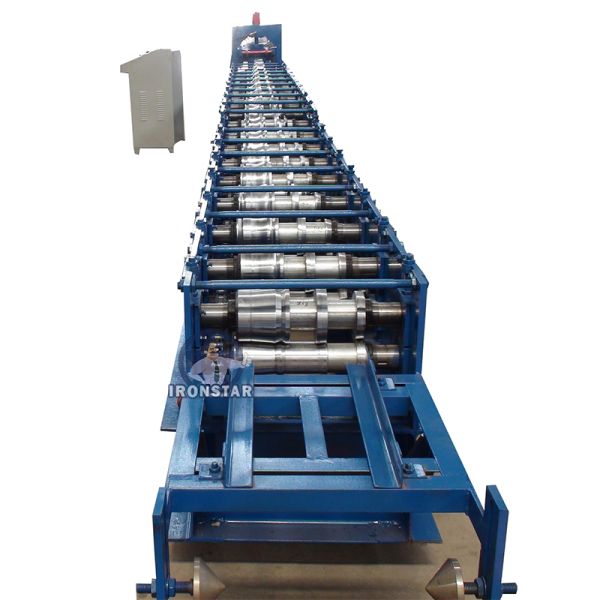

Water gutter roll forming machine

Roller material: 45# steel with 0.05mm chrome

roller surfaces polish, hard plating dealing

Polished surface and heat treatment towards molds can keep the molding plate surface smooth and not easy to be marked when it is being stamped

“Ironstar Aluminium Galvanized Steel Sheet K Gutter Roll Forming Machine K Style Gutter Making Machine”
“Ironstar Aluminium Galvanized Steel Sheet K Gutter Roll Forming Machine K Style Gutter Making Machine”
“Ironstar Aluminium Galvanized Steel Sheet K Gutter Roll Forming Machine K Style Gutter Making Machine”
“Ironstar Aluminium Galvanized Steel Sheet K Gutter Roll Forming Machine K Style Gutter Making Machine”

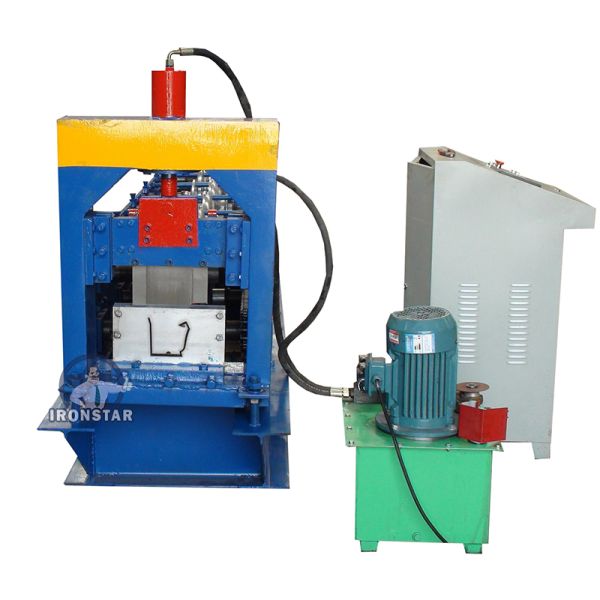

Machine cutter

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

Material of blades: Cr12, quenching treatment

“Ironstar Aluminium Galvanized Steel Sheet K Gutter Roll Forming Machine K Style Gutter Making Machine”

Feeding table

“Ironstar Aluminium Galvanized Steel Sheet K Gutter Roll Forming Machine K Style Gutter Making Machine”

Insert raw material (steel plate) through the beach to manufacture and process

It can guarantee coil go straight and the out products neat, parallel

Control box

“Ironstar Aluminium Galvanized Steel Sheet K Gutter Roll Forming Machine K Style Gutter Making Machine”

DETAL PLC control system

Target piece`s length is adjustable and digit

Two modes operate: automatic and manual type

Button press and screen touch operate, easy operate

Language: Chinese and English or as acustomer' need

Hydraulic oil pump

“Ironstar Aluminium Galvanized Steel Sheet K Gutter Roll Forming Machine K Style Gutter Making Machine”

Hydraulic oil into the hydraulic oil tank

Pump motor drives the cutter work

Motor Power: 3KW

Hydraulic oil: 46# Oil

add capacity: oil add 3/4 of box capacity

Oil pressure: 8-10 MPa

Receiving table

“Ironstar Aluminium Galvanized Steel Sheet K Gutter Roll Forming Machine K Style Gutter Making Machine”

Length: Common 2-3 m

Operate : Manual work

Used to collect the finished pieces

Support roller to transmit pieces

Easy for panel take away by forklifts

Spare parts free for customer

“Ironstar Aluminium Galvanized Steel Sheet K Gutter Roll Forming Machine K Style Gutter Making Machine”

Packing & Payment & Service

1). Packing method: Nude, seller should guarantee equipment will be moisture-proof, anti corrosive, and will not be damaged during transportation.

2). Payment Term: 30% of total contract value paid by T/T, last 70% paid by T/T after inspection by buyer in seller’s factory while before delivery.

3). Delivery Time: The seller guarantees the equipment will be ready for shipment within 40 working days after receipt of deposit from the buyer.

4). Service: We could send technician to your country to fix the machine if you need. The buyer need to pay for all the cost, including: visa, round trip tickets, accommodation, salary of USD 120 per day.

5). Warranty: 36 months During warranty, the replaceable parts are free, but the buyers need to pay for the shipping fee.

6). Package: One complete equipment needs a 20 feet container to hold.

Certificate CE & ISO9001
