“11 Strips 0.3-0.8mm Thin Sheet Metal Slitting Machine Recoil Machine for Roll Forming Line Automatic Steel Coil Slitting and Rewinding Equipment High Precision Processing Line”
“11 Strips 0.3-0.8mm Thin Sheet Metal Slitting Machine Recoil Machine for Roll Forming Line Automatic Steel Coil Slitting and Rewinding Equipment High Precision Processing Line”
Specifications
MOQ :
1 set
Delivery Time :
30-50 days
Working days :
50 working days
Payment Terms :
T/T, L/C
Packaging Details :
Tarpaulins and wooden cases
Model Number :
Customized
Warranty :
3 years
Container :
40 feet container
Price :
As Drawing
Export port :
Tianjin port
Supply Ability :
10 Sets/Month
Raw material :
Galvanized steel or PPGI
Certification :
CE
Brand Name :
IRONSTAR
Place of Origin :
China
Description

PPGI Galvanized And Color Steel Metal Sheet Slitting And Recoil Whole Line Roll Forming Machine

Slitting and recoil whole line can slit to your want size and length automatically. Speed common 10-30 m/min. If you want to buy slitting machine, please tell me your used material, thickness and width, how many strips u want to get?

Slitting and recoil whole line | coil slitting line | coil slitting machine

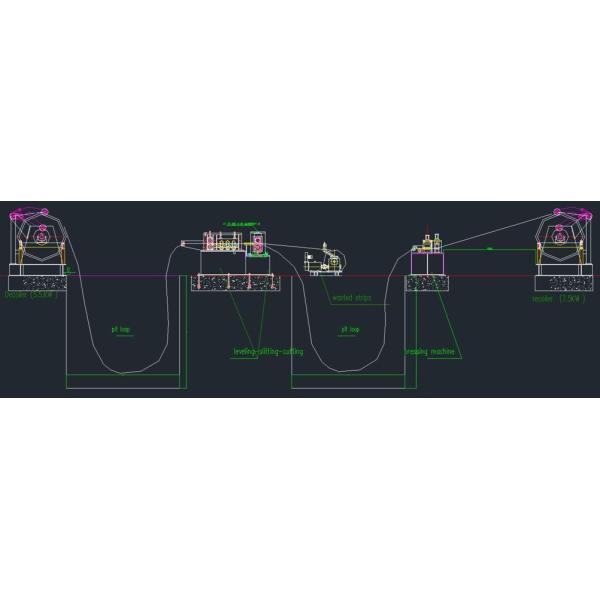

Work flow of Slitting and recoil whole line

Decoiler - leveling part - slitting - hydraulic cutter - recoiler

“11 Strips 0.3-0.8mm Thin Sheet Metal Slitting Machine Recoil Machine for Roll Forming Line Automatic Steel Coil Slitting and Rewinding Equipment High Precision Processing Line”

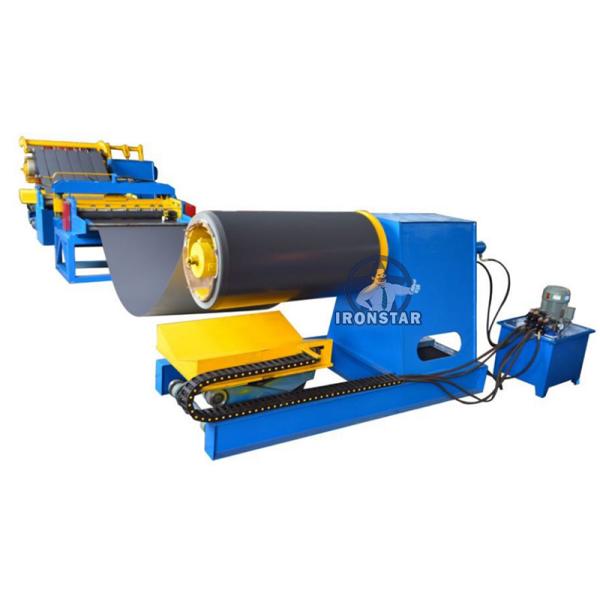

Slitting and recoil whole line

This line is used to slit the coil sheet into narrow strips, and then recoil to small coils.

You can also cut to short panels after slitting.

“11 Strips 0.3-0.8mm Thin Sheet Metal Slitting Machine Recoil Machine for Roll Forming Line Automatic Steel Coil Slitting and Rewinding Equipment High Precision Processing Line”

Diameter of Slitting and recoil whole line

NO

Type

 Specification

1

 Raw material Type Galvanized steel or PPGI
Feeding width 1250/1220/1200/1000mm or as customer' need
Thickness 0.3-0.8 mm
Max strips 11 strips

3

 Main body Machine size About 18m*6m (length*width)
Voltage 380V/50HZ, 3 phase
Working speed Common speed 0-30 m/min

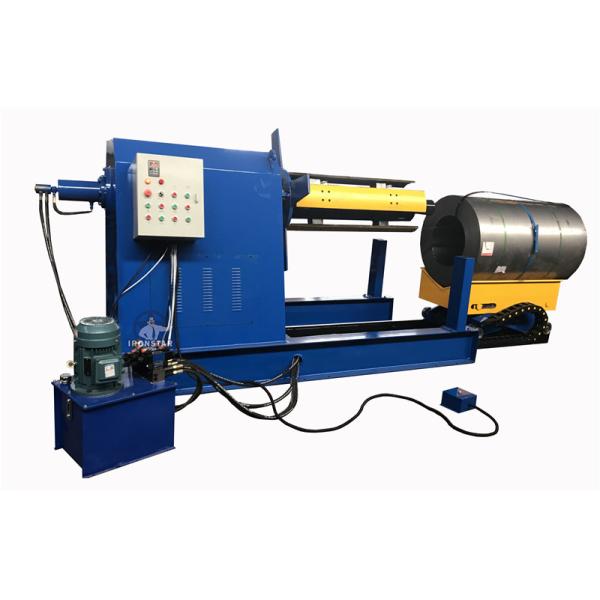

Automatic uncoiler with loading car

This line is used to slit the coil sheet into narrow strips, and then recoil to small coils.

You can also cut to short panels after slitting.

“11 Strips 0.3-0.8mm Thin Sheet Metal Slitting Machine Recoil Machine for Roll Forming Line Automatic Steel Coil Slitting and Rewinding Equipment High Precision Processing Line”

NO

Type

 Specification

1

 Raw material Type Galvanized steel or PPGI
Feeding width 1250/1220/1200/1000mm or as customer' need
Thickness 0.3-0.8 mm
Coil inner diameter 460-640 mm
Maximum coil width 1250 mm

2

 Decoiler Operation Hydraulic with car
Weight apacity 5 Tons
3 Power Working speed Adjustable according to production speed
Main motor 4 KW
Inverter 5.5 KW
Voltage 380V/50HZ, 3 phase or ass customer' request

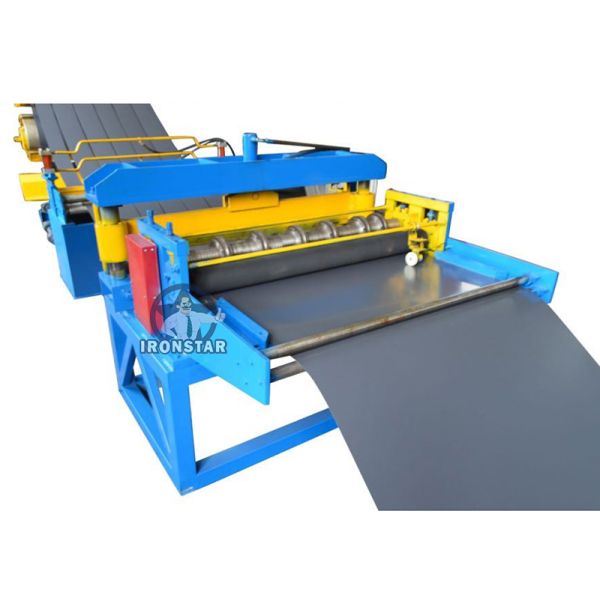

Leveling-slitting-cutting

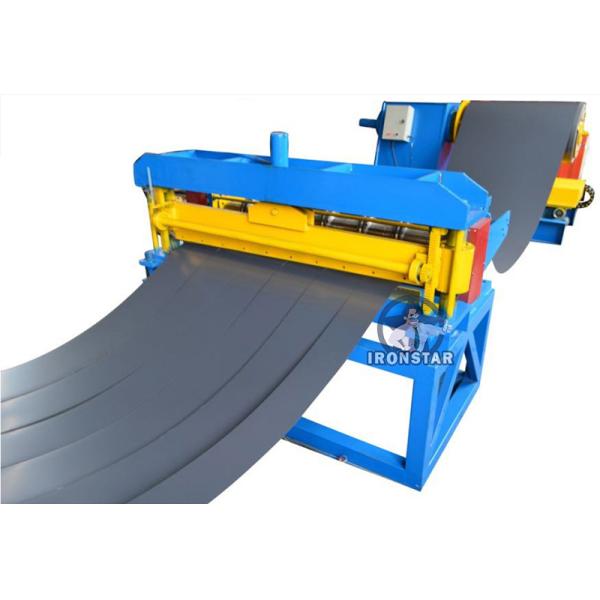

Here slitting machine used to slit the coil sheet into narrow strips and cutting off material

“11 Strips 0.3-0.8mm Thin Sheet Metal Slitting Machine Recoil Machine for Roll Forming Line Automatic Steel Coil Slitting and Rewinding Equipment High Precision Processing Line”

NO

Type

 Specification

1

 Slitting machine Guarding bar Adjustable, to fit for different material width
Feeding width 1250/1220/1200/1000mm or as customer' need
Thickness 0.3-0.8 mm
Slitting cutter 10 sets cutter to slit 11 strips
2 Machine body Working speed 10-30 m/min
Main motor 4 KW
Support plate 16 mm
“11 Strips 0.3-0.8mm Thin Sheet Metal Slitting Machine Recoil Machine for Roll Forming Line Automatic Steel Coil Slitting and Rewinding Equipment High Precision Processing Line”

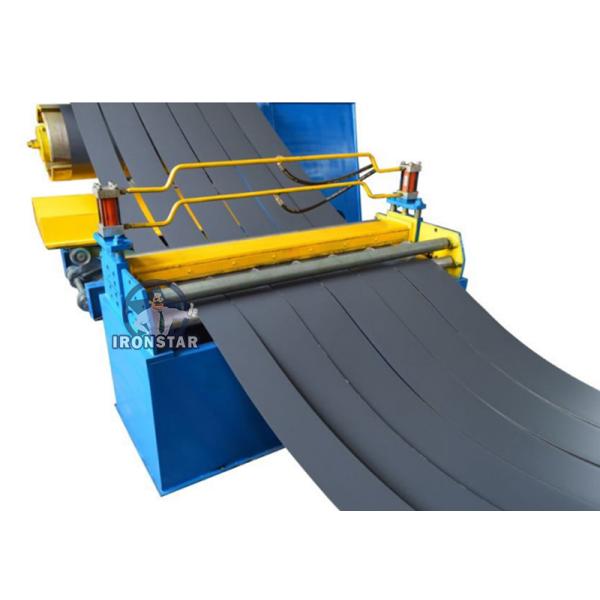

Pressing machine

Press machine is used to fasten the strips for the recoiler, prevent it get loose when recoil

Press machine is powered by hydraulic, tension is adjustable

Hydraulic station power: 3 kw

“11 Strips 0.3-0.8mm Thin Sheet Metal Slitting Machine Recoil Machine for Roll Forming Line Automatic Steel Coil Slitting and Rewinding Equipment High Precision Processing Line”

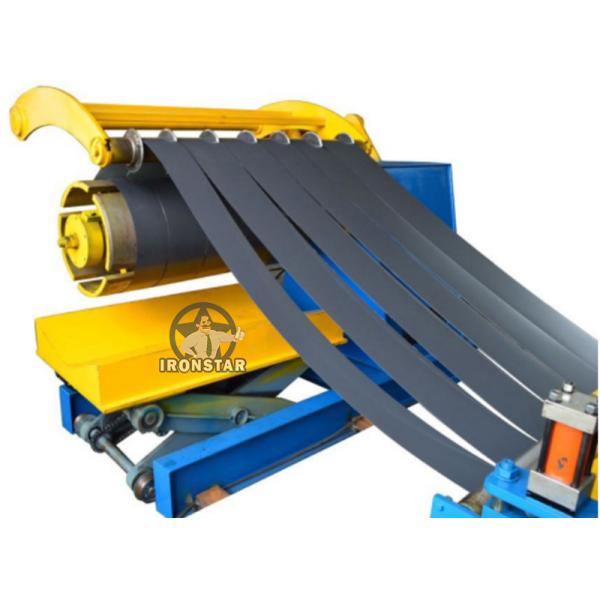

Auto recoiler with loading car

The recoiler is equipped with fast-adjustable spacers, so you can adjust for different width strips fast

Inner diameter range: 500-530 mm

Max loading weight: 5 ton

Motor power: 5.5 kw / Inverter power: 7.5 kw

Recoiling speed adjustable.

“11 Strips 0.3-0.8mm Thin Sheet Metal Slitting Machine Recoil Machine for Roll Forming Line Automatic Steel Coil Slitting and Rewinding Equipment High Precision Processing Line”

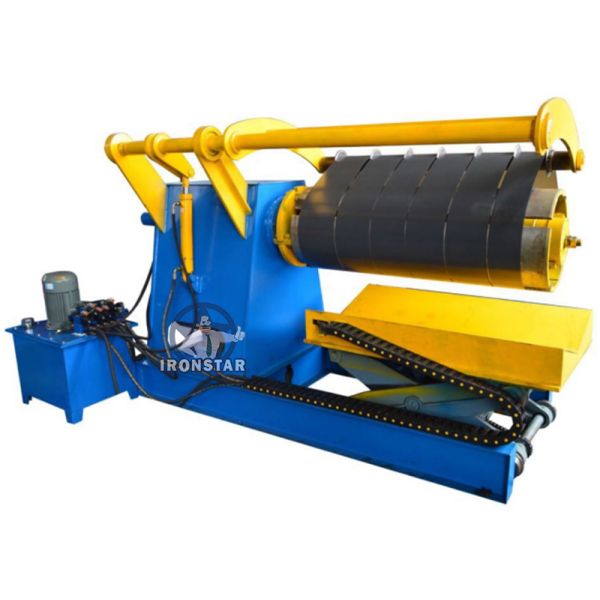

There is also pressing arm and loading car.

The pressing arm is used to make sure the coil is tight.

The loading car is used to unload the small coils after you finish

“11 Strips 0.3-0.8mm Thin Sheet Metal Slitting Machine Recoil Machine for Roll Forming Line Automatic Steel Coil Slitting and Rewinding Equipment High Precision Processing Line”

Spare parts free for customer

“11 Strips 0.3-0.8mm Thin Sheet Metal Slitting Machine Recoil Machine for Roll Forming Line Automatic Steel Coil Slitting and Rewinding Equipment High Precision Processing Line”

Packing & Payment & Service

1). Packing method: Nude, seller should guarantee equipment will be moisture-proof, anti corrosive, and will not be damaged during transportation.

2). Payment Term: 30% of total contract value paid by T/T, last 70% paid by T/T after inspection by buyer in seller’s factory while before delivery.

3). Delivery Time: The seller guarantees the equipment will be ready for shipment within 50 working days after receipt of deposit from the buyer.

4). Service: We could send technician to your country to fix the machine if you need. The buyer need to pay for all the cost, including: visa, round trip tickets, accommodation, salary of USD 120 per day.

5). Warranty: 36 months During warranty, the replaceable parts are free, but the buyers need to pay for the shipping fee.

6). Package: One complete equipment needs a 40 feet container to hold.

Certificate CE & ISO9001
