Consistent Mesh Aperture 0.019in 0.638mm Diamond Metal Lath For Stucco Mesh Lath Over Wood Sheathing
Consistent Mesh Aperture 0.019in 0.638mm Diamond Metal Lath For Stucco Mesh Lath Over Wood Sheathing
Consistent Mesh Aperture 0.019in 0.638mm Diamond Metal Lath For Stucco Mesh Lath Over Wood Sheathing
Consistent Mesh Aperture 0.019in 0.638mm Diamond Metal Lath For Stucco Mesh Lath Over Wood Sheathing
Consistent Mesh Aperture 0.019in 0.638mm Diamond Metal Lath For Stucco Mesh Lath Over Wood Sheathing
Consistent Mesh Aperture 0.019in 0.638mm Diamond Metal Lath For Stucco Mesh Lath Over Wood Sheathing
Specifications
Brand Name :
WSFIVIN
Model Number :
175EML
Certification :
ESR-5419 (ICC-ES)
Place of Origin :
CHINA
MOQ :
1000
Payment Terms :
T/T,L/C,D/P,D/A
Supply Ability :
10000PCS/DAY
Delivery Time :
7-15 days
Packaging Details :
10Pcs./Bundle 250/500Pcs. / Pallet
Product Name :
Consistent Mesh Aperture Diamond Metal Lath Ideal for Stucco Over Wood Sheathing
Key Words :
Diamond Metal Lath
Thinkness :
0.019in 0.638mm
Sample :
Free sample is available
Packing :
250 sheets per pallet
Usage :
Interior and exterior walls, ceilings, and partitions
Marerial :
Galvanized steel
Application :
Plastering, stucco, masonry, and tile
Hole shape :
Diamond
Surface treatment :
Galvanized
Description

Consistent Mesh Aperture Diamond Metal Lath Ideal for Stucco Over Wood Sheathing

Precision-spaced diamond apertures maintain +/-0.02" tolerance across rolls, engineered expressly for stucco adhesion over dimensional wood sheathing—eliminating substrate telegraphing and cold-joint ghost lines in coastal residences and cedar-clad commercial façades. Its rigidified "anti-curling" flanges combat wood movement under seasonal thermal cycling while GS-38 zinc-aluminum alloy strips resist vapor-driven corrosion, achieving ASTM C1063 Category IV shearing strength at critical joist interfaces. Weatherization crews standardize this pattern for timber-frame retrofits where traditional hexagonal mesh permits blistering, with wind-uplift ratings exceeding 170 mph via third-party Miami-Dade NOA testing on engineered wood panels.

Pacific Northwest specialty contractors and Florida hurricane-code builders specify this aperture-controlled matrix when securing three-coat stucco over plywood or OSB substrates prone to differential expansion. Integrated capillary breaks mitigate efflorescence at weep screed transitions while CRRC-certified thermal reflectivity reduces sheathing heat saturation in desert climates. Request region-specific galvanic isolation guidelines for mixed-material assemblies or utilize our laser-calibration gauges to verify mesh conformance before plastering—supported by lifetime delamination warranties with optional ASTM E2273 moisture migration testing protocols.

CODE

Wt./Sq.Yd.(lbs)

Sheet Size

Standard Thickness

Pcs./Bundle

Pcs./Pallet

DML1.75

1.75 LBS

27” x 96”

0.35mm

10

500

DML2.5

2.5 LBS

27” x 96”

0.5mm

10

500

DML3.4

3.4 LBS

27” x 96”

0.638mm

10

250

FAQ

1. What is expanded metal lath used for?

It is mainly used as a base for stucco or plaster on walls, ceilings, and soffits. The mesh provides excellent keying for cementitious materials.

2. Does your product meet U.S. and Canadian standards?

Yes. Our expanded metal lath complies with ASTM C847 and CSA standards, and is ICC-ES(5419) certified, ensuring approval for a wide range of North American construction projects.

3. Do you offer different types and weights?

Yes. We offer various rib profiles, mesh patterns, and weights such as 1.75 lbs, 2.5 lbs, and 3.4 lbs per sheet to suit different application needs.

4. What is your MOQ and lead time?

Our minimum order is 2 pallets (total 1,000 sheets, 500 sheets per pallet). Typical lead time is 15–20 working days, depending on order volume and requirements.

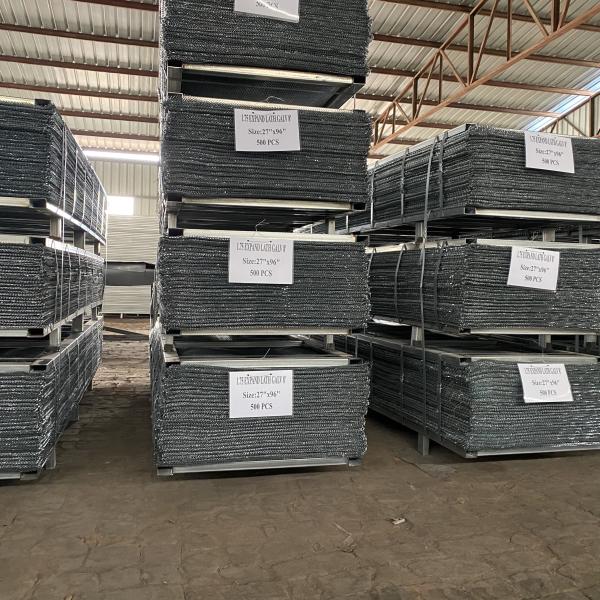

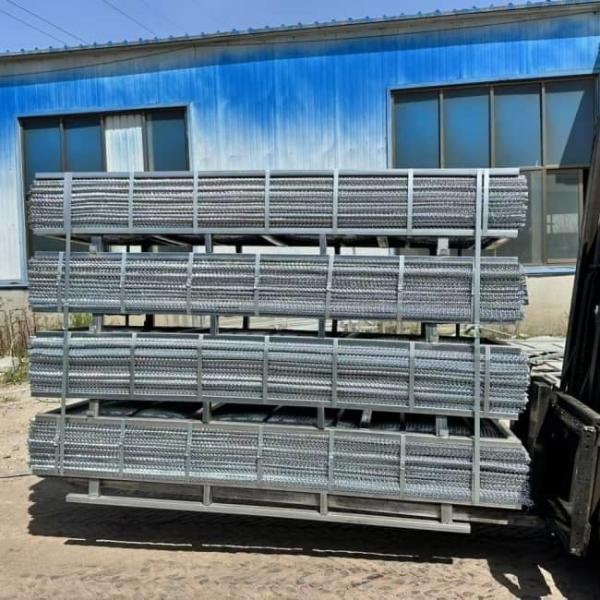

5. How is the product packaged for export?

We use standard palletized packaging for safe and efficient container loading and unloading. Custom labels and weather-resistant wrapping are also available upon request.
