Q235 Hot Rolled Strut C Channel Hot DIP Galvanized Unistrut C Shaped
Q235 Hot Rolled Strut C Channel Hot DIP Galvanized Unistrut C Shaped
Q235 Hot Rolled Strut C Channel Hot DIP Galvanized Unistrut C Shaped
Q235 Hot Rolled Strut C Channel Hot DIP Galvanized Unistrut C Shaped
Q235 Hot Rolled Strut C Channel Hot DIP Galvanized Unistrut C Shaped
Q235 Hot Rolled Strut C Channel Hot DIP Galvanized Unistrut C Shaped
Q235 Hot Rolled Strut C Channel Hot DIP Galvanized Unistrut C Shaped
Q235 Hot Rolled Strut C Channel Hot DIP Galvanized Unistrut C Shaped
Specifications
Brand Name :
United
Certification :
GR202044000642
Place of Origin :
China
MOQ :
100pcs
Price :
Contact me
Packaging Details :
According to your requirements
Delivery Time :
15-30days
Supply Ability :
adequate
Surface :
Hot Dipped Galvanized / Powder Coated
Dimensions :
82mm × 41mm
Used :
for building
Finishes :
HDG, Powder coated, Eletronic-gal
MOQ :
Standard sizes supplied for all
Standard :
ASTM
Description

Q235 Hot Rolled C Channel , Hot DIP Galvanized Uni - strut C Shaped Channel Galvanized Strut Channel

Products :

Strut channel is usually formed from metal sheet, folded over into an open channel shape with inwards-curving lips to provide additional stiffness and as a location to mount interconnecting components. Strut usually has holes of some sort in the base, to facilitate interconnection or fastening strut to underlying building structures.

Q235 Hot Rolled Strut C Channel Hot DIP Galvanized Unistrut C Shaped

Specifications :

High quality & reasonable Price , no need welding and punching , can use repeatedly , wide usage range , flexible for installation .

1. Standard thickness : 1.5mm ,1.6mm , 2mm ,2.3mm , 2.5mm , 2.75mm

2. Standard length: 3000mm , 6000mm and customized

3. Standard size: 41*21 , 41*25 , 41*41 ,41*62 ,41*82 , back to back , 41*62,41*123 and so on

Other sizes be produced according to customer’s drawing .

Product ( 82 X 21mm ) Strut Channel
Material Steel
Size 82 X 21mm
Thickness 1.2mm - 2.5mm

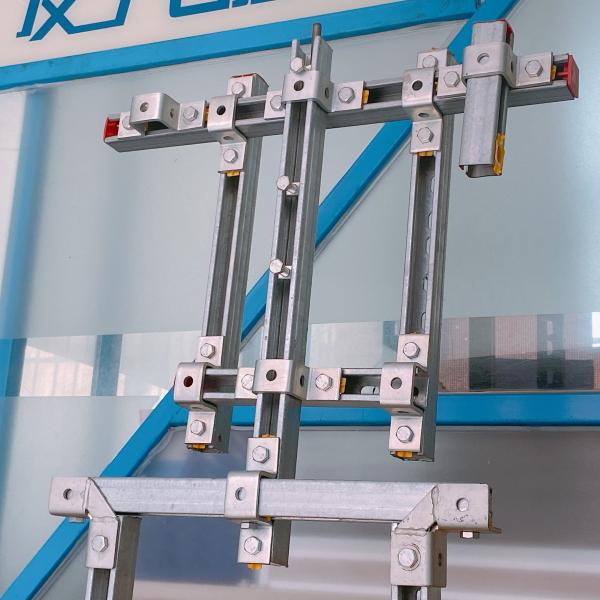

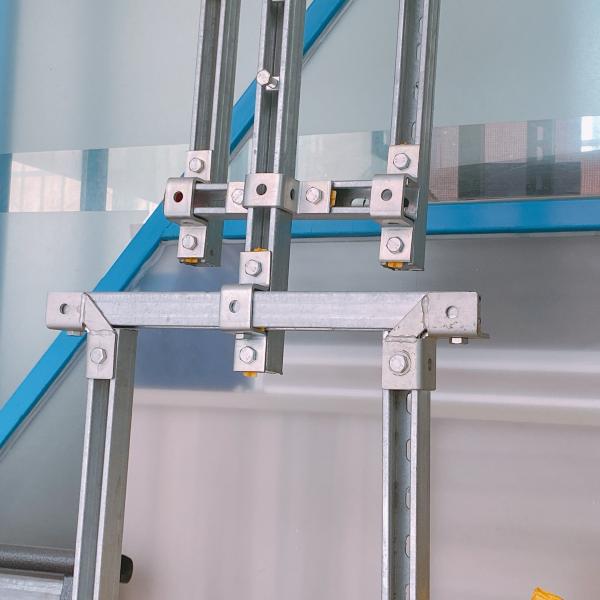

Usage An overhead electrical wire hanger manufactured from two lengths of strut channel.A length of standard half-slotted strut channel used as a brace , connected to a length of half-channel mounted directly to a wall, joined with a purpose-built channel connecting steel angle.


Company profile:

UNITED is renowned name in the manufacturing and export c - section steel , strut channel , channel nuts , cantilever , Bracket connection accessories and so on .
The company is managed by highly dedicated team of professionals in their respective area of production system , quality control , packaging to maintain the standardization for all our products in terms to their production output and quality standards .
We Also provide Load Test and Material Test Certificate for all of our products .
