Automatic Cold Roll Forming Machine Change Size C Purlin For Steel Structure
Automatic Cold Roll Forming Machine Change Size C Purlin For Steel Structure
Automatic Cold Roll Forming Machine Change Size C Purlin For Steel Structure
Automatic Cold Roll Forming Machine Change Size C Purlin For Steel Structure
Automatic Cold Roll Forming Machine Change Size C Purlin For Steel Structure
Automatic Cold Roll Forming Machine Change Size C Purlin For Steel Structure
Specifications
Brand Name :
FAMOUS
Model Number :
OWN
Certification :
ISO9001:2008
Place of Origin :
Zhejiang, China
MOQ :
1 set
Price :
USD 46280 per set
Payment Terms :
T/T,L/C
Supply Ability :
50 Sets/Year
Delivery Time :
2 Months
Packaging Details :
Standard exported package
Product Name :
C Z Purlin Roll Forming Machine
Coil thickness :
1.2-3.5mm
Working speed :
12-25m/min
Main motor :
15KW
Transmission :
By 1.2Inch double line Chains
Hydraulic pressure :
15-21MPa
Operation System :
Automatical Operation
Description

Automatic Cold Roll Forming Machine Change Size C Purlin For Steel Structure

Roll forming machine Technical Parameter:

No.

square tube roll forming machine

1

Suitable material

Color steel sheet ,galvanized steel sheet, aluminium sheet

2

Width of material

333mm or customized

6

Thickness of material

0.4-0.6mm, customized

2

Working speed

8-10m/min, can be 20m/min

3

Main motor power

4kw with cycloidal reducer

4

Hydraulic station power

4kw

5

Electrical control system

PLC control system

7

Shaft diameter

65mm

8

Roller station

17 rows

10

Dimension

7800x1150x1510mm

11

Weight

About 3.6T

12

Voltage

380V 3phase 50HZ or as the customer's requirements

13

Material of roller

High grade 45# forged steel plated with hard chrome plating

14

Material of cutting

Cr12 mould steel with quenched treatment

15

Working time

Can be 24 hours

16

Workers

1-2 only

Note:Above parameters are standard,we can design and make some change according to your requirement.

Character of main structure:

a. The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and process as a whole after welding. It has the ability of strong loading and stable operation when running the machine.

b. All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.

c. We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .

d. It is very easy to install the equipment and suitable for producing in the factory.

e. The machine has features of low noise and high efficiency.

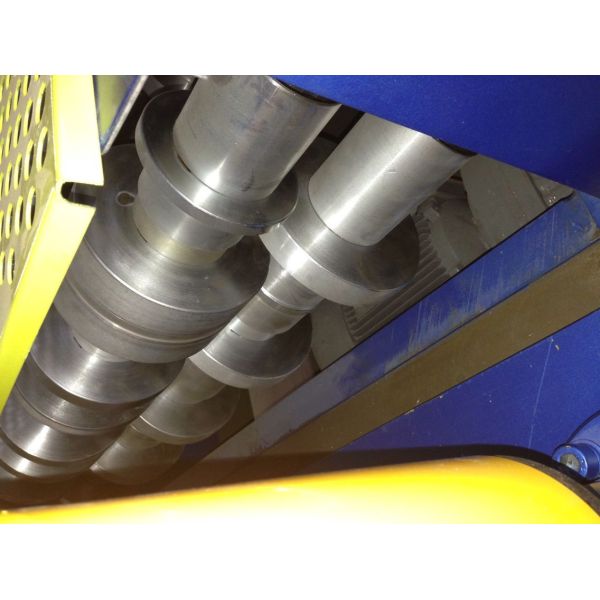

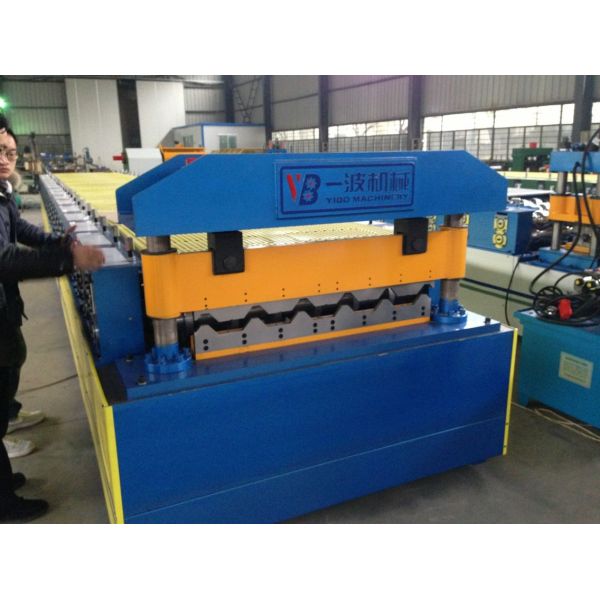

Machine Pictures:

Automatic Cold Roll Forming Machine Change Size C Purlin For Steel StructureAutomatic Cold Roll Forming Machine Change Size C Purlin For Steel Structure
