Specifications
Brand Name :
HCGG
Model Number :
SSF001
Certification :
CE/ISO 9001/ISO 3834/ISO 14001/ISO 45001
Place of Origin :
Henan,China
MOQ :
200 square meters
Price :
USD20-80Square Meter/Negotiable
Payment Terms :
L/C,T/T,Western Union,.pay
Supply Ability :
50000 Tons/year
Delivery Time :
20-40days
Main Structurel Material :
Q355B/ASTM A572 Gr.50/EN S355/JIS SM490
Secondary Structurel Material :
Q235B / ASTM A36/ EN S235JR / JIS SS400
Other Material :
Q460 / ASTM A572 Gr.65 /EN S460 / JIS SM570
Customization :
Style,size,Color,Material
After-sale Service :
Online Technical Support, Onsite Installation,Onsite Training,Onsite Inspection,Installation Drawings Support
Project Solution Capability :
CAD graphic design, 3D Tekla modeling design, total solution for projects,One-stop steel structure solution,Project-based supply
Column and Beam :
Welded H-section/Hot-rolled H-beam/Box column
Purlin :
C.Z Shape Steel Channel
Roof and Wall panel :
EPS/Rock wool/PU / PIR sandwich panel,Corrugated/Trapezoidal steel sheet/Customized/
Window :
Aluminum alloy / PVC /Industrial louver window
Door :
Sliding/Rolling shutter/Hinged steel/Customized steel door
Surface treatment :
Hot-dip galvanized Zinc-rich primer + top coat Anti-corrosion coating
Service Life :
20-50 Years
Life Span :
More Than 50 Years
Description

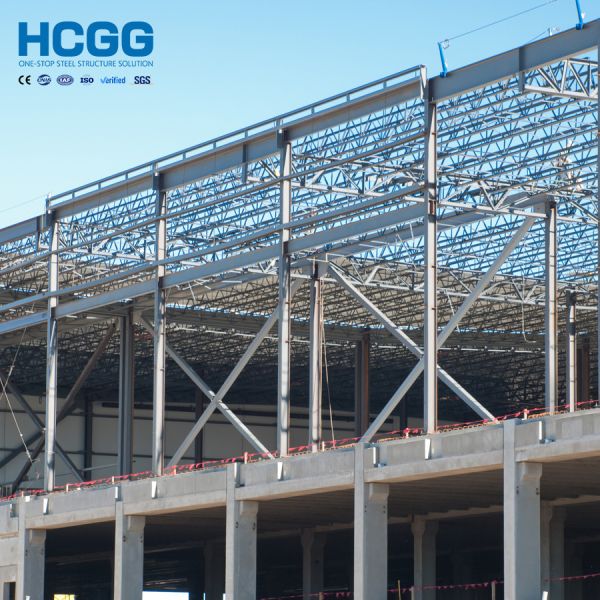

High-Strength Prefabricated Multi-Story Steel Structure Buildings
Multi-story steel structure factory buildings, warehouses, and workshops designed for fast assembly and industrial applications.
Product Overview
Industrial buildings with 2 or more stories using steel as the main load-bearing system, featuring rapid assembly capabilities.
Structural Composition
  • Steel columns + steel beams + steel frame / frame-bracing system
  • Profiled steel sheet concrete composite floor slabs
  • Typically 2–8 stories with floor height of 4.5–6m
  • Column grid spacing of 6–12m
  • Floor live load designed at 5–15 kN/㎡
  • Compatible with light/medium-sized cranes
Main Structural Solutions
  • Pure Steel Frame: Ideal for 2–3 story light industrial/electronics factories with uniform loads
  • Steel Frame + Cross Bracing: High seismic and lateral stiffness, suitable for 4–5 story machining and storage buildings
  • Steel-Concrete Composite Structure: Steel columns + steel beams + thick composite slabs, offering excellent stiffness and low vibration for precision instrument workshops
Prefabricated H Section Steel Structure Factory Buildings Custom Colors Multi Story Prefabricated H Section Steel Structure Factory Buildings Custom Colors Multi Story
Product Specifications & Parameters
All components are fully customizable including steel columns, beams, purlins, supports, braces, sleeves, roof panels, wall panels, doors, and windows. Our technical team designs according to your specific requirements.
Component Category Element Specification
Main Steel Frame Column Q235, Q355 Welded H Section Steel
Beam Q235, Q355 Welded H Section Steel
Secondary Frame Purlin Q235 C and Z Purlin
Knee Brace Q235 Angle Steel
Tie Rod Q235 Circular Steel Pipe
Maintenance System Roof Panel EPS Sandwich Panel, Glass Fiber Sandwich Panel, Rock Wool Sandwich Panel, PU Sandwich Panel, Steel Sheet
Wall Panel Sandwich Panel / Corrugated Steel Sheet
Accessories Window Aluminium Alloy Window, PVC Window, Sandwich Panel Window
Door Sliding Sandwich Panel Door / Rolling Metal Door
Rainspout PVC
Design & Quotation Requirements
  • Basic Building Dimensions: Length, Width (Span), Eave Height, Single/Multi-span, Estimated Area
  • Building Purpose: Production/Warehouse/Workshop; Heavy equipment, cranes and their tonnage
  • Load Requirements: Roof (snow, live load), local wind load, ground load; Heavy-duty floor slabs
  • Enclosure Structure: Wall/roof materials, insulation/fire protection; Skylights/ventilations
  • Door & Window Requirements: Quantity, size and type (roller shutters, sliding doors, etc.)
  • Local Requirements: Project location, seismic rating, fire rating; Special environment (typhoons/blizzards/corrosion)
  • Foundation & Construction: Foundation design, installation guidance; Construction and transportation terms
  • Special Requirements: Addition/expansion, office/mezzanine, exterior color/acceptance standards; Crane beams
  • Design Requirements: Drawings provided or our design services needed
Prefabricated H Section Steel Structure Factory Buildings Custom Colors Multi Story Prefabricated H Section Steel Structure Factory Buildings Custom Colors Multi Story Prefabricated H Section Steel Structure Factory Buildings Custom Colors Multi Story
Frequently Asked Questions
What products and services do you provide?
We provide comprehensive design, fabrication, packing, and export services for steel structure buildings including warehouses, factories, and various industrial or commercial projects.
Can you help with the design?
Yes, we provide complete steel structure design solutions and construction drawings tailored to your specific project requirements.
What is the production and delivery time?
Production timelines vary based on project size and order quantity. Typically, production is completed approximately 30 days after receiving the deposit.
Do you provide installation support?
We provide installation drawings and guidance videos at no additional cost. For international projects, we can arrange overseas on-site technical supervision as needed.
