SG8000 Series Adjustable Coilover Shock 8in-16in Coil Over Adjustable Shocks
SG8000 Series Adjustable Coilover Shock 8in-16in Coil Over Adjustable Shocks
SG8000 Series Adjustable Coilover Shock 8in-16in Coil Over Adjustable Shocks
SG8000 Series Adjustable Coilover Shock 8in-16in Coil Over Adjustable Shocks
SG8000 Series Adjustable Coilover Shock 8in-16in Coil Over Adjustable Shocks
SG8000 Series Adjustable Coilover Shock 8in-16in Coil Over Adjustable Shocks
SG8000 Series Adjustable Coilover Shock 8in-16in Coil Over Adjustable Shocks
SG8000 Series Adjustable Coilover Shock 8in-16in Coil Over Adjustable Shocks
SG8000 Series Adjustable Coilover Shock 8in-16in Coil Over Adjustable Shocks
SG8000 Series Adjustable Coilover Shock 8in-16in Coil Over Adjustable Shocks
SG8000 Series Adjustable Coilover Shock 8in-16in Coil Over Adjustable Shocks
SG8000 Series Adjustable Coilover Shock 8in-16in Coil Over Adjustable Shocks
Specifications
Brand Name :
STR
Model Number :
SG8000-2436
Certification :
ISO9001 2015
Place of Origin :
China
MOQ :
8PCS
Price :
USD285-350/PC
Payment Terms :
T/T
Supply Ability :
5000PCS/Month
Delivery Time :
Depend on the Quantity
Packaging Details :
Paper Carton
Model :
SG8000 Series
Spring Rate :
100/150/200/250/300/350lbs
Top Mounts :
Aluminum Pillowball
Adjustable Camber Plate :
Yes
Piston Design :
Inverted
Warranty :
1 Year Limited
Adjustable Damping :
Yes
Travel Length :
8-16''
Spring Material :
High Tensile Steel
Body Material :
Aluminum
Adjustable Height :
Yes
Damper Type :
Monotube
type :
STR Shocks
application :
off road shocks
feature :
adjustable shock absorbers
other name :
vehicle shock absorber
product type :
shock absorbers
Description
Doulbe Coilover Adjustable Racing Suspension Compression Rebound 8-12'' With 100-350LBS Coil Springs

Features:

· Electric zinc plated steel shock body with crystal clear Cerakote for durability and corrosion resistance.

· Red/Black/Blue/Green/Golden anodized billet aluminum top and bottom caps

· Hard-chrome plated steel shock shafts for superior corrosion resistance

· Shock eye mounts feature machined rod ends with high strength spherical bearings for increased performance

· Shaeffer’s high grade temperature stable synthetic hydraulic fluid

· Fully rebuildable

· Made in China

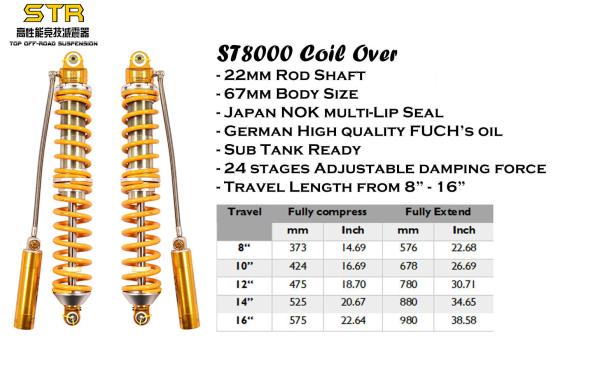

parameter of the shocks


dampening adjustment 1

24 steps compression

dampening adjustment 2

30 steps rebound

Top strut

CNC 6061-T6 Aluminum

Oil hose material

14mm Teflon

Oil hose length

600mm

Spring style

Coil spring

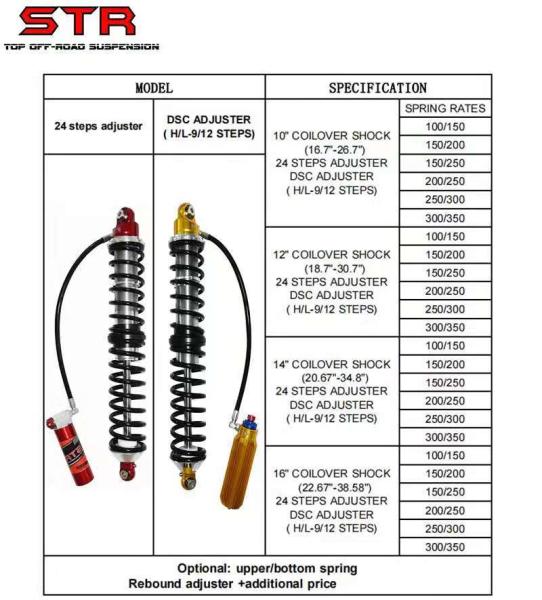

Spring Rate

100/150/200/250/300/350LBS

Oil hose joint

Swivel Banjo Fitting

Gas reservoir length

200MM

Shock body

Steel or Aluminum alloy

Shock body OD

66mm

Piston rod OD

22mm

Bushes

Silent block steel rubber bushes

MOQ

5sets

Color

Optional

Color

Red/Golden/Black/Green/Blue

Valve core

Yes

REAL Installation
SG8000 Series Adjustable Coilover Shock 8in-16in Coil Over Adjustable Shocks
SG8000 Series Adjustable Coilover Shock 8in-16in Coil Over Adjustable Shocks
SG8000 Series Adjustable Coilover Shock 8in-16in Coil Over Adjustable Shocks
SG8000 Series Adjustable Coilover Shock 8in-16in Coil Over Adjustable Shocks
SG8000 Series Adjustable Coilover Shock 8in-16in Coil Over Adjustable Shocks
