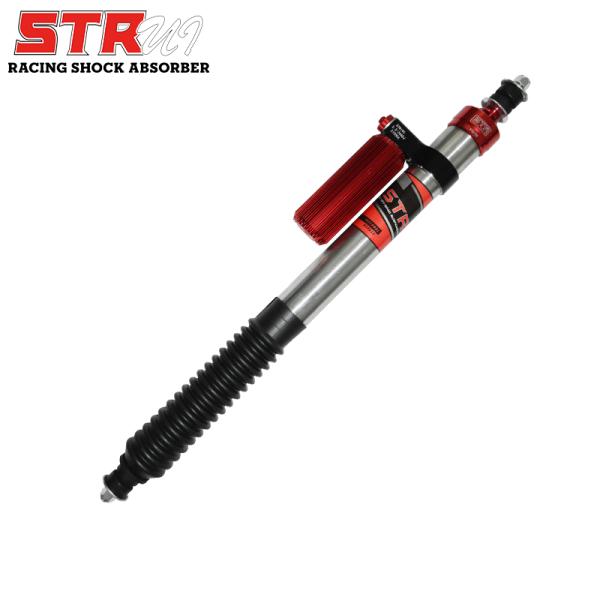

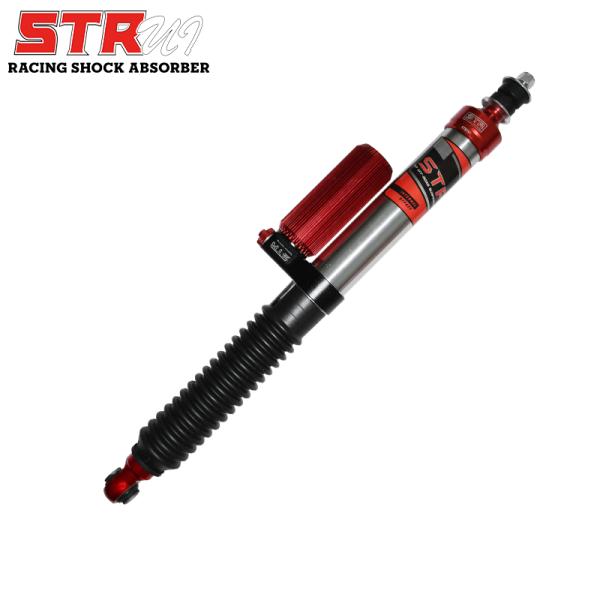

Land Cruiser 80 Piggyback Shock Absorber With Adjustable Damping
Land Cruiser 80 Piggyback Shock Absorber With Adjustable Damping
Land Cruiser 80 Piggyback Shock Absorber With Adjustable Damping
Land Cruiser 80 Piggyback Shock Absorber With Adjustable Damping
Land Cruiser 80 Piggyback Shock Absorber With Adjustable Damping
Land Cruiser 80 Piggyback Shock Absorber With Adjustable Damping
Land Cruiser 80 Piggyback Shock Absorber With Adjustable Damping
Land Cruiser 80 Piggyback Shock Absorber With Adjustable Damping
Land Cruiser 80 Piggyback Shock Absorber With Adjustable Damping
Land Cruiser 80 Piggyback Shock Absorber With Adjustable Damping
Land Cruiser 80 Piggyback Shock Absorber With Adjustable Damping
Land Cruiser 80 Piggyback Shock Absorber With Adjustable Damping
Specifications
Brand Name :
STR
Model Number :
ST8056/ST8057
Certification :
ISO90001,2015
Place of Origin :
China
MOQ :
5 sets
Price :
USD150-200/PC
Payment Terms :
T/T
Supply Ability :
10000PCS/month
Delivery Time :
Depend on the quantity of the order
Packaging Details :
Cartons
Damping :
Mono Tube
Compatibility :
Only for LC80
Travel :
2/3/4 inches
Technology :
Piggyback Reservoir
Mounting Type :
Eyelet
Weight :
6.5KGS/PC
Product Type :
Offroad Vehicle Shock
Material :
Steel/Aluminum
Color :
Red (or Customized)
Spring Rate :
Customizable
Size :
190mm x 51mm
Adjustment :
Rebound, Low-speed Compression, High-speed Compression
Spring Type :
Air
type :
STR Shocks
application :
off road shocks
feature :
adjustable shock absorbers
other name :
vehicle shock absorber
product type :
shock absorbers
Description
Land Cruiser 80 4x4 Shock Absorber - Offroad Suspension Vehicle Shock
Product Specifications
Attribute Value
Damping Mono Tube
Compatibility Only for LC80
Travel 2/3/4 inches
Technology Piggyback Reservoir
Mounting Type Eyelet
Weight 6.5KGS/PC
Product Type Offroad Vehicle Shock
Material Steel/Aluminum
Color Red (or Customized)
Spring Rate Customizable
Size 190mm x 51mm
Adjustment Rebound, Low-speed Compression, High-speed Compression
Spring Type Air
Premium Features
  • 100% bolt-on performance for easy installation
  • Increased wheel travel for superior offroad capability
  • Large 2.5" shock bodies increase fluid capacity for smoother operation
  • Factory tuned for optimal ride quality on all terrains
  • Extensive lab and real-world testing for perfect damping curves
  • Built with premium materials to precise tolerances
  • Fully rebuildable, serviceable and tunable for long-term performance
  • External reservoirs for enhanced heat dissipation and sustained performance
  • Optional Wide Range Compression Adjuster with 24 precise settings
Technical Parameters
Dampening Adjustment 1 24 steps compression
Dampening Adjustment 2 30 steps rebound
Top Strut CNC 6061-T6 Aluminum
Oil Hose Material 14mm Teflon
Oil Hose Length 600mm
Spring Style Coil spring
Oil Hose Joint Swivel Banjo Fitting
Gas Reservoir Length 200MM
Shock Body Steel or Aluminum alloy
Shock Body OD 66mm
Piston Rod OD 22mm
Bushes Silent block steel rubber bushes
MOQ 5 sets
Color Options Red/Golden/Black/Green/Blue
Valve Core Included

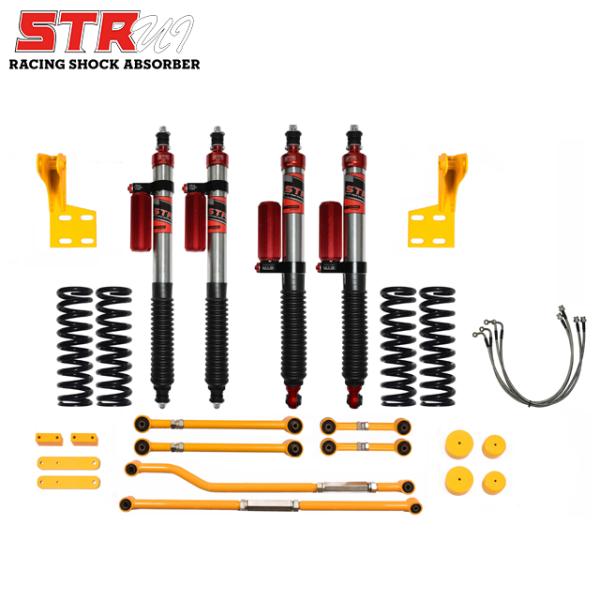

Installation Images
Land Cruiser 80 Piggyback Shock Absorber With Adjustable Damping Land Cruiser 80 Piggyback Shock Absorber With Adjustable Damping Land Cruiser 80 Piggyback Shock Absorber With Adjustable Damping Land Cruiser 80 Piggyback Shock Absorber With Adjustable Damping
