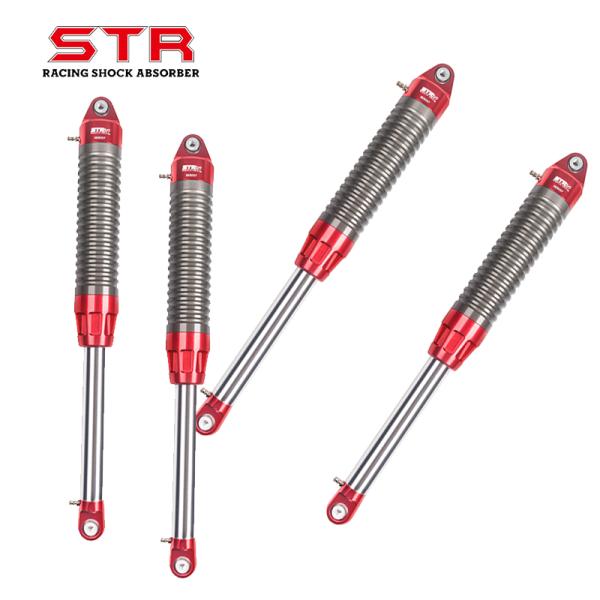

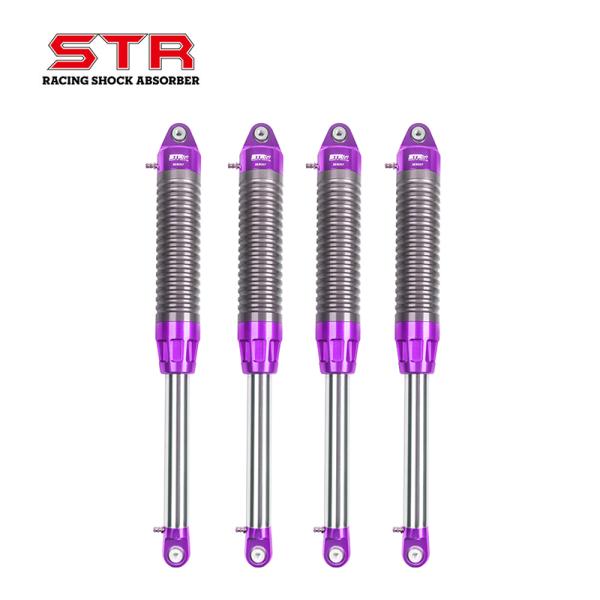

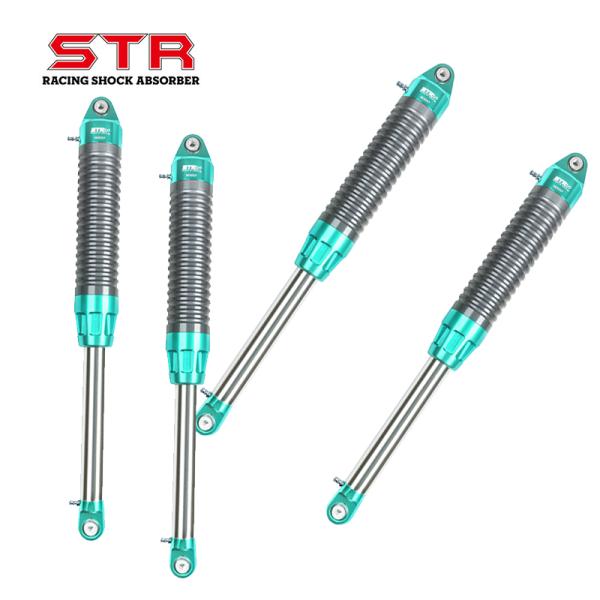

Aluminum Air Shocks 4x4 Off Road STR Suspension Air Shocks For Cars
Aluminum Air Shocks 4x4 Off Road STR Suspension Air Shocks For Cars
Aluminum Air Shocks 4x4 Off Road STR Suspension Air Shocks For Cars
Aluminum Air Shocks 4x4 Off Road STR Suspension Air Shocks For Cars
Aluminum Air Shocks 4x4 Off Road STR Suspension Air Shocks For Cars
Aluminum Air Shocks 4x4 Off Road STR Suspension Air Shocks For Cars
Aluminum Air Shocks 4x4 Off Road STR Suspension Air Shocks For Cars
Aluminum Air Shocks 4x4 Off Road STR Suspension Air Shocks For Cars
Aluminum Air Shocks 4x4 Off Road STR Suspension Air Shocks For Cars
Aluminum Air Shocks 4x4 Off Road STR Suspension Air Shocks For Cars
Aluminum Air Shocks 4x4 Off Road STR Suspension Air Shocks For Cars
Aluminum Air Shocks 4x4 Off Road STR Suspension Air Shocks For Cars
Specifications
Brand Name :
STR
Model Number :
SE8000
Place of Origin :
China
MOQ :
1
Price :
100-300
Payment Terms :
T/T
Supply Ability :
2000
Delivery Time :
10-45 days
Packaging Details :
86*26*16
Material :
Aluminum
Color :
All colors is available
Travel :
6-18"
product name :
Air Shock
type :
STR Shocks
application :
Off Road
Description
Ultra Performance Air shock
Long Travel Off-Road Racing Suspension | STR Strut/Shock
STR Specs:
  • Tunable Dual pressurized chambers - lower chamber is pressurized to achieve stability and help prevent unloading. The upper chamber is pressurized to set ride height
  • 3 stage compression damping -
    • 1st stage - compressed nitrogen
    • 2nd stage - 5W Spectro Golden Cartridge Fork Fluid
    • 3rd stage - 1" hydraulic bump stop
  • High load capacity - 1900lbs per strut
  • Compact and lightweight
  • 7 position externally adjustable rebound damping
  • End of stroke cushioning
  • Cooling fins - Improved design for heat dissipation
  • Internal hardened chrome steel cylinder
  • Spherical bearings for 1/2" & 5/8" mounting bolts
  • 5000 psi seals
  • Anodized outer coating - Prevents corrosion

STR Strut is a popular and versatile offroad strut/shock combination for rock crawlers, trucks, buggies, desert racers, and other custom off-road builds. The STR struts feature unique dual nitrogen charged chambers for unmatched stability in off-road suspension, and are fully tunable to obtain any level of stability, ride height, and spring rate desired. The STR struts is designed with high grade billet 6061 aluminum, stainless steel internal components, and chrome plated piston shafts to be light weight, durable, and compact. Built into the compression damping is a 1 inch hydraulic bump stop, high flow oil return passageways, and a velocity sensitive compression valve that helps prevent bottoming out on hard hits to make for a 3 stage compression damping stroke. With a compact 3.2" body, 2" piston, and a 1.75" diameter piston shaft, the struts are compact enough to fit under most builds, and strong enough to hold up in harshest conditions. They come in a variety of standard lengths (8"- 20"), and can be custom ordered up to30" travel length.
