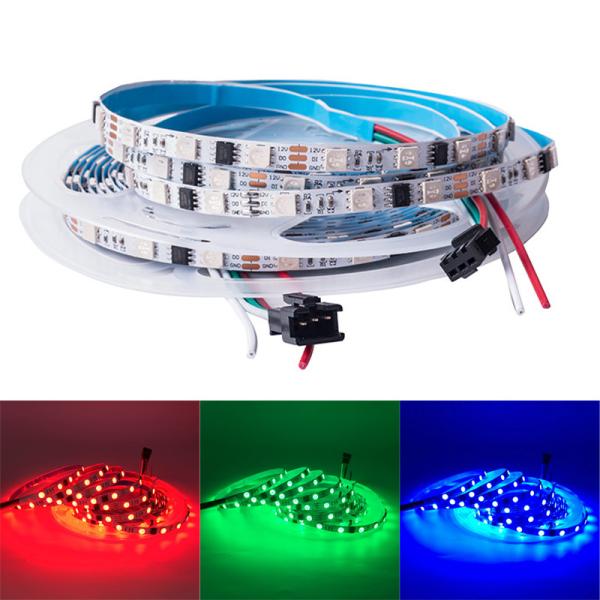

8mm Narrow LED Pixel Strip Light , RGB 5050 3535 Magic Dream Color LED Strip
8mm Narrow LED Pixel Strip Light , RGB 5050 3535 Magic Dream Color LED Strip
8mm Narrow LED Pixel Strip Light , RGB 5050 3535 Magic Dream Color LED Strip
8mm Narrow LED Pixel Strip Light , RGB 5050 3535 Magic Dream Color LED Strip
Specifications
Place of Origin :
Guangdong, China
Model Number :
WS2811-RGB-8MM
Certification :
ce, RoHS
Packaging Details :
Standard export packing: 5m/roll
Can be made into any specifications according to customer requirements.
Provide one-stop OEM/DOM support service, welcome your consultation
MOQ :
negotiation
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
10000pcs/month
Delivery Time :
3-10days
Warranty(Year) :
1-Year
Working Lifetime(Hour) :
50000
Lighting solutions service :
Lighting and circuitry design, Onsite metering, Project Installation
Product Name :
LED Digital Strip
Switch Mode :
Controller
LED Type :
3535 or 5050 (RGB SMD built-in IC)
Keyword :
Narrow LED Light Strip
Feature :
Programmable,Addressable
Description

8mm Narrow Led Ws2811 Pixel Strip Light Rgb 5050 3535 Magic Color Strip

8mm Narrow LED WS2811 Built-in IC DC 12Vor 24V Addressable Magic Color RGB 5050 3535 Strip 84 96 LEDs/m

8mm Narrow WS2811-RGB-12V LED Strip
Overview:Big Pixel 12V or 24V WS2811 Addressable RGB strips, 84 or 96 LEDs/m, Control IC outside the LED, 14 or 32 Pixel/m, 0.24W/LEDs, 8mm white FPCB, 15cm JST connector;

FEATURES:

1) Addressable DC12V or 24V WS2811 LED Strips; Long life span 30,000+ hours; 2) Super bright 5050 SMD top LED, high intensity and reliability; 3) Addressable, 12V each IC control three SMD3535-RGB LEDs; 24V each IC control Six SMD5050-RGB LEDs; 4) WS2811 has 3 Wires input and output: Data, GND and Power+; 5) 12V/3 leds one cut;24V/6 leds one cut; 6) Data transmit up to 800kbps, 256 grayscale effect;
Product Model
WS2811 Color Digital Light Strip
Light source
SMD 5050 RGB or SMD 3535 RGB
Sheet
Copper FPCB
Chip
Epistar
IC model
WS2811
Gray level
256 levels
LED Quantity
84 / 96 LEDs/M
Lighting angle
120°
Lighting color
any color can be achieved by adjusting the controller
Standard working voltage
DC12V
Power
0.24W/LEDs
Waterproof grade
non-waterproof IP20
Dimensions of FPCB board
Width: 8mm
FPCB color
white
Packing method
5m / roll, 3M glue on the back of the light bar, electrostatic bag packaging;

APPLICATION:

  1. Widely used for home decoration use, hotels, clubs, shopping malls
  2. Architectural decorative lighting, boutique atmosphere lighting
  3. Extensively applied in background lighting, concealed lighting, channel letter lighting
  4. Emergency & security lighting, advertisement sign lighting
  5. Decorative lights for holiday, event, show exhibition
  6. Applicable for automobile and bicycle decoration, border or contour lighting

8mm Narrow LED Pixel Strip Light , RGB 5050 3535 Magic Dream Color LED Strip

Product Description
8mm Narrow LED Pixel Strip Light , RGB 5050 3535 Magic Dream Color LED Strip
8mm Narrow LED Pixel Strip Light , RGB 5050 3535 Magic Dream Color LED Strip
8mm Narrow LED Pixel Strip Light , RGB 5050 3535 Magic Dream Color LED Strip
8mm Narrow LED Pixel Strip Light , RGB 5050 3535 Magic Dream Color LED Strip
8mm Narrow LED Pixel Strip Light , RGB 5050 3535 Magic Dream Color LED Strip
8mm Narrow LED Pixel Strip Light , RGB 5050 3535 Magic Dream Color LED Strip
