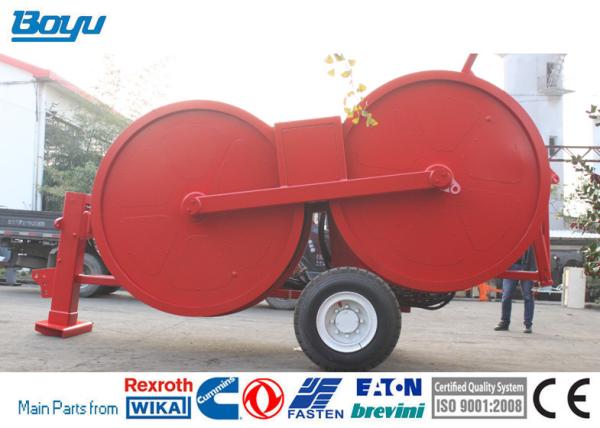

Cable Stringing Equipment TY1x30D-1800 Hydraulic Tensioner With Diesel Engine

TY1x30D-1800

Hydraulic Tensioner with Diesel Engine

• The machine is hydraulically controlled for the tensile force and complete with quality parts and components such as hydraulic break, high-performance finned radiator, hydraulic power unit, precision filtering unit to support the safe, high-quality and efficient performance.
• The hydraulic power unit provides the traction of conductors at both positive and negative directions.
• The single-beam trailer chassis is also adopted, where lifting points are pre-set for anchoring and temporary anchoring, to achieve a portable compact integrity easy to be loaded, transported and transferred.

Performance

• Max continuous tension: 30kN
• Speed at max tension: 2.5km/h
• Max speed: 5km/h
• Pull at max speed: 15kN
• Max reverse pulling force: 20kN

Characteristics

• Bull-wheel diameter: 1800mm
• Max conductor diameter: 40mm
• Groove number: 5
• Total weight: 3200kg
• Overall dimension (length*width*height): 4500*2000*2500mm

Main configuration

• Engine: Single cylinder diesel engine
• Hydraulic pump: Tianjin Parker
• Main motor: Tianjin Parker
• Speed reducer: German Rexroth / Italy Brevini
• Hydraulic meter: German

Engine

• Single cylinder diesel engine: 18kw(25hp)
• Electrical system: 12V

Hydraulic Transmission

• The machine can realize step less speed
• The machine is provided with tension presetting system

Configuration

• Hydraulic dynamometers
• Hydraulic oil cooling system
• Grounding connection point

Additional Devices

• Air brake system for the trailer (extra charge)
• Hydraulic conductor clamps for drum change operations (extra charge)
• Swivel guide rope roller
• Trailer for towing at max speed of 30 km/h
