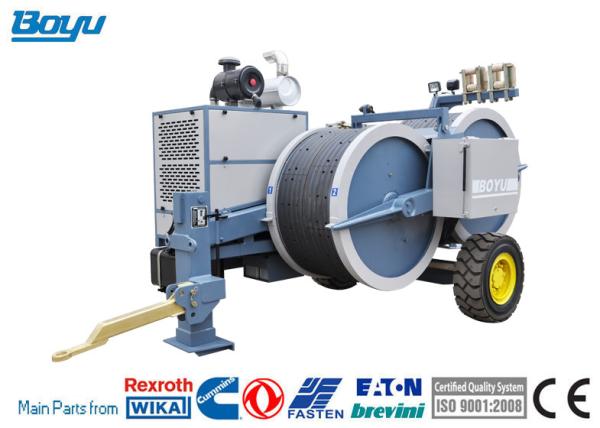

Cummins Engine 77kw 103hp Tension Machine for Overhead Stringing Transmission Line
Cummins Engine 77kw 103hp Tension Machine for Overhead Stringing Transmission Line
Cummins Engine 77kw 103hp Tension Machine for Overhead Stringing Transmission Line
Cummins Engine 77kw 103hp Tension Machine for Overhead Stringing Transmission Line
Specifications
Brand Name :
BOYU
Model Number :
TY2x40-9
Certification :
ISO9001
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100sets/month.
Delivery Time :
15~25 days
Packaging Details :
Container
Max intermittent pull :
2x45kN
Max continuous pull :
2x40kN
Diesel :
77kw(103hp)
Engine :
Cummins
Cooling system :
water
Total weight :
5800kg
Overall dimension (length*width*height) :
4300*2250*2700mm
Type :
Stringing Equipment Hydraulic Tensioner
Description

Overhead Line Stringing Equipment Hydraulic Tensioner With 77kw(103hp) Cummins Engine

Performance
Max intermittent pull 2x45kN
Max continuous pull 2x40kN
Speed at max pull 2.5km/h
Max speed 5km/h
Pull at max speed 2x20kN
Max reverse pulling force 2x35kN
Max reverse pulling speed 5km/h

Characteristics
Bull-wheel diameter 1300/1500mm
Max conductor diameter 40mm
Groove number 2x5
Total weight: 5800kg
Overall dimension (length*width*height) 4300*2250*2700mm

Engine
Diesel 77kw(103hp)
Cooling system water
Electrical system

24V

Main configuration

Engine

Cummins

Hydraulic pump

German Rexroth/Dnish Danfoss

Main motor

German Rexroth/French Leduc

Speed reducer

German Rexroth

Hydraulic meter

German

Operating handle

German Rexroth

Additional Devices

  1. Lighting system for the trailer
  2. Digital speed and meter counter
  3. Swivel guide rope roller
  4. 2 hydraulic rope/conductor clamp(extra charge)
  5. Trailer for towing at max speed of 30 km/h

Configuration

  1. Hydraulic front stabilizer
  2. Grounding connection point
  3. Hydraulic dynamometers
  4. Digital speed and meter counter
  5. Hydraulic oil cooling system
  6. Hydraulic power pack to control up to 2 separated drum stands with hydraulic motor

Cummins Engine 77kw 103hp Tension Machine for Overhead Stringing Transmission Line

SGS Certificate:

Assessed Supplier
Main Product Lines Verification Report
Presented to
Yixing Boyu Electric Power Machinery Co., Ltd.
Company Address: Zhenbei Village, Hufu Town, Yixing, Wuxi City, Jiangsu Province, China
Consigner of Assessment: Alibaba Gold Supplier
Member ID: yxboyu Gold Supplier
Company Name: Yixing Boyu Electric Power Machinery Co., Ltd.
Contact Person: Mr. Green Lu
Phone Number: 0086-18036062799
Email: yxboyuh72@163.com
Website Address (URL): http://yxby.en.alibaba.com; http://www.boyu-power.com; http://www.stringingequipments.com/
Service Provided by SGS Report No.: 17749140_P+T
Cummins Engine 77kw 103hp Tension Machine for Overhead Stringing Transmission Line
Production Line Capacity
Production Line Capacity Actual Units Produced (Previous 12 months)
Hydraulic Puller: 20 Sets / M
Hydraulic Tensioner: 25 Sets / M
Anti-twisting steel Braided Rope: 50 km/M
Pulley: 2,000 Sets / M		 Hydraulic Puller: 211 Sets
Hydraulic Tensioner: 246 Sets
Anti-twisting steel Braided Rope: 3,660 Km
Pulley:18,650 Sets

Production Machinery
Machine Name Brand & Model No. Quantity Number of Year used Condition
Lathe C6150 12 5 Acceptable
Radial Drill Z3050x16/I 4 3 Acceptable
Milling Machine N/A 2 6 Acceptable
Sawing Machine GZ4232A 4 4 Acceptable
CNC cutting Machine YATE 1 3 Acceptable
Shearing Machine Donghai 1 5 Acceptable
Bending Machine Donghai 1 5 Acceptable
Pressing Machine Yangli 1 6 Acceptable
Steel Wire Weaving machine N/A 8 6 Acceptable
