Fixed Joint U Shaped Bend Connector Transmission Line Stringing Tools Long Life
Fixed Joint U Shaped Bend Connector Transmission Line Stringing Tools Long Life
Fixed Joint U Shaped Bend Connector Transmission Line Stringing Tools Long Life
Fixed Joint U Shaped Bend Connector Transmission Line Stringing Tools Long Life
Specifications
Brand Name :
Boyu
Model Number :
TYSLU
Certification :
ISO9001
Place of Origin :
China (Mainland)
MOQ :
500
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100000 Sets/Month
Delivery Time :
15~30 days
Packaging Details :
Wooden case
Product Name :
Fixed Joint U Shaped Bend Connector
Type :
Connector
Dimensions A :
36mm
Dimensions B :
68mm
Dimensions C :
18mm
Dimensions d :
10mm
Dimensions D :
14mm
Dimensions E :
29mm
Rated load :
10kN
Weight :
0.2kg
Description

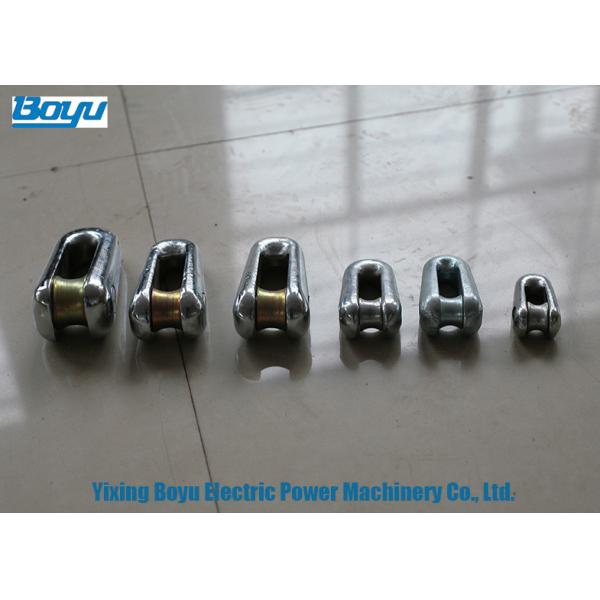

Transmission Line Stringing Tools Fixed Joint U Shaped Bend Connector

The connectors are specifically designed to connect pilot rope lengths or pulling rope lengths and to pass over the puller bull wheels. They are made of highly tensile galvanized steel.

Model Dimensions (mm)

Rated load
(kN)

Weight
(kg)
A B C d D E
SLU-1 36 68 18 10 14 29 10 0.2
SLU-3 37 76 20 12 17 31 30 0.22
SLU-5 50 96 23 18 19 42 50 0.6
SLU-8 56 110 28 20 22 50 80 0.8
SLU-10 59 126 30 22 26 54 100 1.2
SLU-13 61 134 32 24 27 56 130 1.3
SLU-15 63 138 37 27 28 58 150 1.4
SLU-25 80 178 44 32 35 72 250 3.0
SLU-28 80 178 44 32 35 72 280 3.0
SLU-32 85 186 42 30 38 80 320 3.9

Fixed Joint U Shaped Bend Connector Transmission Line Stringing Tools Long Life
Fixed Joint U Shaped Bend Connector Transmission Line Stringing Tools Long Life
