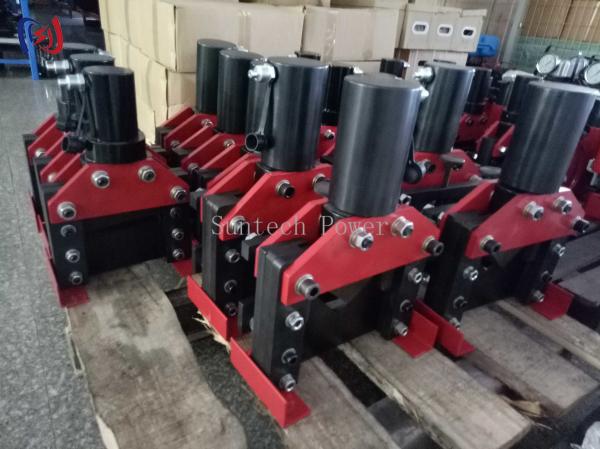

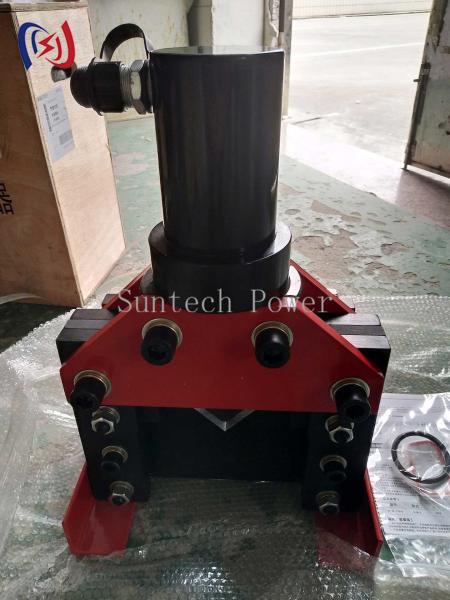

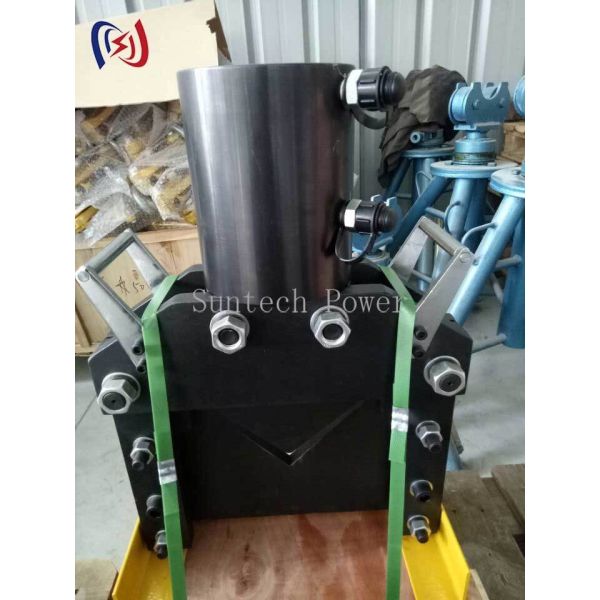

Hydraulic Angle Steel Cutter Cuts Stainless Carbon Galvanized Steel​
Hydraulic Angle Steel Cutter Cuts Stainless Carbon Galvanized Steel​
Hydraulic Angle Steel Cutter Cuts Stainless Carbon Galvanized Steel​
Hydraulic Angle Steel Cutter Cuts Stainless Carbon Galvanized Steel​
Hydraulic Angle Steel Cutter Cuts Stainless Carbon Galvanized Steel​
Hydraulic Angle Steel Cutter Cuts Stainless Carbon Galvanized Steel​
Hydraulic Angle Steel Cutter Cuts Stainless Carbon Galvanized Steel​
Hydraulic Angle Steel Cutter Cuts Stainless Carbon Galvanized Steel​
Specifications
Brand Name :
Suntech
Model Number :
CAC-75
Certification :
ISO
Place of Origin :
Ningbo
MOQ :
1 PCS
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
2000 PCS/Month
Delivery Time :
3-7days
Packaging Details :
Plywood Case
Name :
Hydraulic Angle Steel Cutter
Item No. :
06242-2
Model :
CAC-75
Cutting force :
250-350KN
Max working range :
75x75x6-110x110x10mm
Height :
405-425mm
Weight :
34.5-40KG
Package :
wooden case
Description

Hydraulic Angle Steel Cutter with Lifetime Warranty – Cuts Stainless, Carbon & Galvanized Steel​


The ​​Hydraulic Angle Steel Cutter​​ is a ​​heavy-duty industrial tool​​ designed for ​​precision cutting of angle steel, structural beams, and metal frames​​. With a ​​2,500kg hydraulic pressure system​​, it delivers ​​clean, distortion-free cuts​​ on stainless steel, carbon steel, and galvanized steel with thicknesses ranging from ​​1mm to 16mm​​. Unlike plasma cutters or abrasive saws, this tool ​​eliminates heat distortion​​ and reduces labor time by ​​80%​​.


​​Key Features:​​
✔ ​​Dual-Angle Cutting​​ – Built-in guides for ​​45° and 90° cuts​​ (±0.2mm tolerance).
✔ ​​Tungsten Carbide Blades (HRC 65+)​​ – Long-lasting sharpness for ​​10,000+ cuts per set​​.
✔ ​​Zero Energy Dependency​​ – Fully hydraulic operation, no electricity or gas required.
✔ ​​Safety Lock & Pressure Release​​ – Prevents accidental activation and overloading.


​​Performance Benefits:​​

  • ​​Cuts 16mm steel in 4 seconds​​ – 5X faster than manual saws.
  • ​​No material warping​​ – Cold-cutting technology preserves structural integrity.
  • ​​Low maintenance​​ – Self-lubricating piston requires servicing every ​​8,000 cuts​​.


​​Technical Specifications:​​

  • ​​Model:​​ CAC-75
  • ​​Max Cutting Width:​​ 25mm
  • ​​Blade Material:​​ Tungsten carbide-coated
  • ​​Operating Temperature:​​ -30°C to 70°C
  • ​​Compliance:​​ ISO 9001, CE, ANSI B11.3
  • ​​Warranty:​​ 1 years


​​Ideal Applications:​​

  • Steel structure fabrication
  • Solar mounting system installation
  • Construction site metal cutting
  • Shipbuilding and railway maintenance


Item No. 06242-2 26242A-2A
Model CAC-75 CAC-110
Cutting force 250KN 350KN
Max working range 75*75*6mm for steel angle 110*110*10mm for steel angle
Height approx.405mm approx.425mm
Weight

approx.N.W31KG

G.W34.5KG

approx.N.W36KG

G.W40KG
Package wooden case wooden case
