Specifications
Brand Name :
Suntech
Model Number :
EPCB-301
Certification :
ISO
Place of Origin :
Ningbo
MOQ :
1 PCS
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
500 PCS/Month
Delivery Time :
7-15days
Packaging Details :
Plywood Case
Name :
Hydraulic Bus-bar Machine
Item No. :
06232/06231
Model :
EPCB-301
Dimension of work table :
690x60x730mm
Voltage single phase :
220V50HZ
Rating oil pressure :
700kg/cm2
Bending force :
170/200/270KN
Bending range :
150x10mm max/200x12.5mm max
Cutting force :
200/300KN
Cutting range :
150x10mm max/200x12mm max
Punching force :
300-350KN
Distance from hole to sheet side :
95x110mm
Description

Professional Hydraulic Bus-bar Machine - 0-12mm Thickness Capacity with ±0.1mm Precision

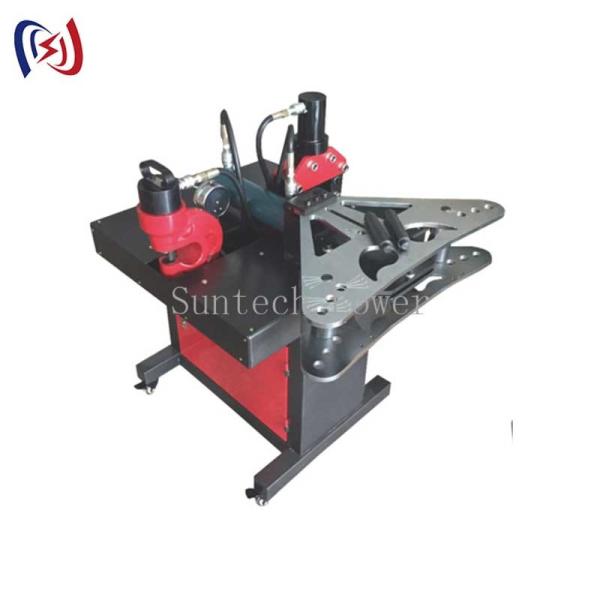

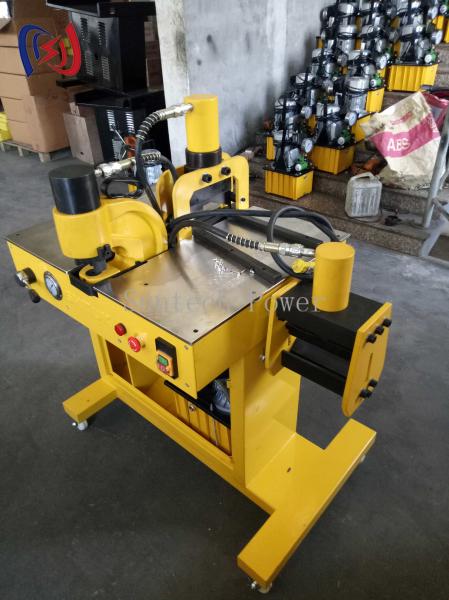

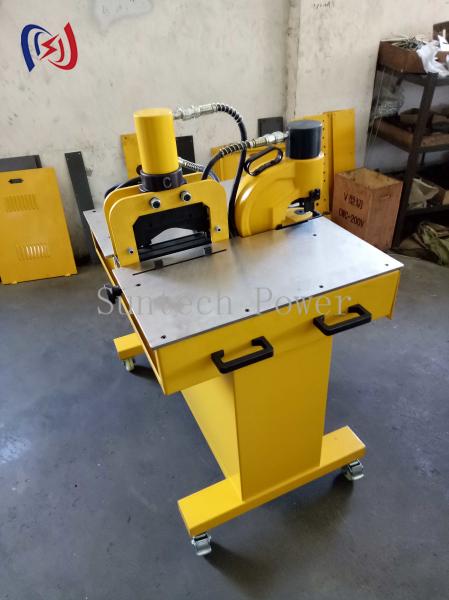

The ​​Hydraulic Bus-bar Machine​​ is a ​​state-of-the-art industrial tool​​ designed for ​​precision processing of copper and aluminum bus-bars​​ in electrical panel manufacturing, substations, and power distribution systems. With a ​​20-ton hydraulic system​​, it performs ​​flawless punching, bending, and cutting​​ operations on bus-bars with thicknesses ranging from ​​0.5mm to 12mm​​. Unlike traditional manual tools, this machine ​​eliminates material waste​​ and improves production efficiency by ​​80%​​.


​​Key Features:​​
✔ ​​Triple-Function Design​​ - Integrates ​​punching, bending, and cutting​​ in one compact unit
✔ ​​Precision Engineering​​ - Achieves ​​±0.1mm tolerance​​ for critical electrical applications
✔ ​​Interchangeable Dies​​ - 12 standard dies included for various shapes and sizes
✔ ​​Safety First​​ - Dual-hand operation with emergency stop for accident prevention
✔ ​​Energy Efficient​​ - 20% lower hydraulic oil consumption than competitors


​​Performance Benefits:​​

  • ​​Processes 12mm copper bus-bar in 5 seconds​​ - 5X faster than manual methods
  • ​​Zero material deformation​​ - Maintains perfect conductivity after processing
  • ​​50,000+ operations​​ before first maintenance required


​​Technical Specifications:​​

  • ​​Model:​​ EPCB-301
  • ​​Max Working Width:​​ 30mm
  • ​​Hydraulic Pressure:​​ 27 tons
  • ​​Die Material:​​ Tungsten carbide (HRC 68)
  • ​​Power Supply:​​ 220V
  • ​​Compliance:​​ ISO 9001, IEC 61439
  • ​​Warranty: 1 years


​​Ideal Applications:​​

  • Electrical panel manufacturing
  • Power substation maintenance
  • Renewable energy systems
  • Industrial control cabinets
Item No. 06232 06231
Model EPCB-301 EPCB-401
Function with three functions,cutting,punching and bending with four functions,cutting,punching and bending(horizontal and erective)
Dimension of work table approx.690*690*730mm approx.690*690*730mm
Voltage single phase 220V50HZ 220V50HZ
Rating oil pressure 700kg/cm2 700kg/cm2
Bending force 170kn/200kn 270kn
Bending range 150*10mm max/200*12mm max 125*12.5mm max
Cutting force 200kn/300kn 200kn/300kn
Cutting range 150*10mm max/200*12mm max 150*10mm max/200*12mm max
Punching force 300kn/350kn 300kn/350kn
Distance from hole to sheet side 95*110mm max 95*110mm
Punch range

Φ10.5mmΦ13.8mm

Φ17mmΦ20.5mm

3/8"(Φ10.5mm),1/2"(Φ13.8mm)

5/8"(Φ17mm),3/4"(Φ20.5mm)
Package wooden case wooden case
